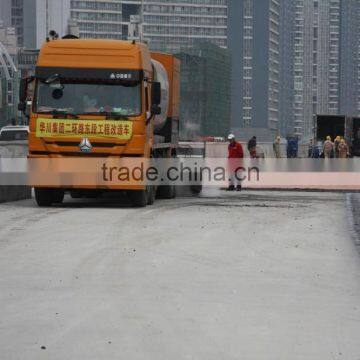

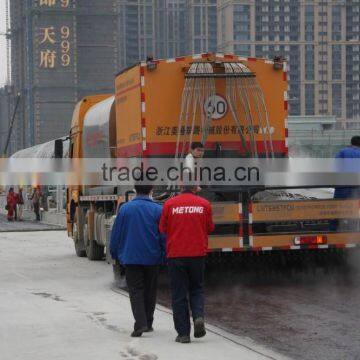

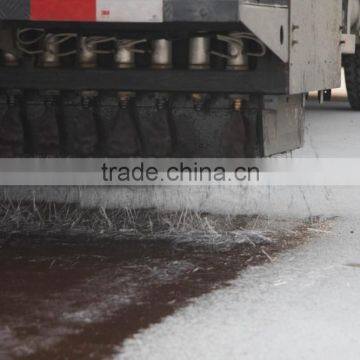

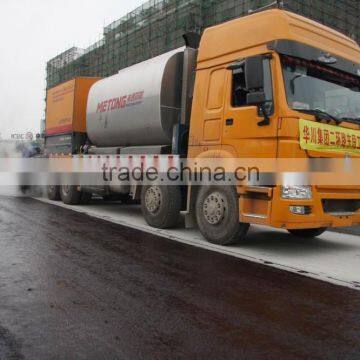

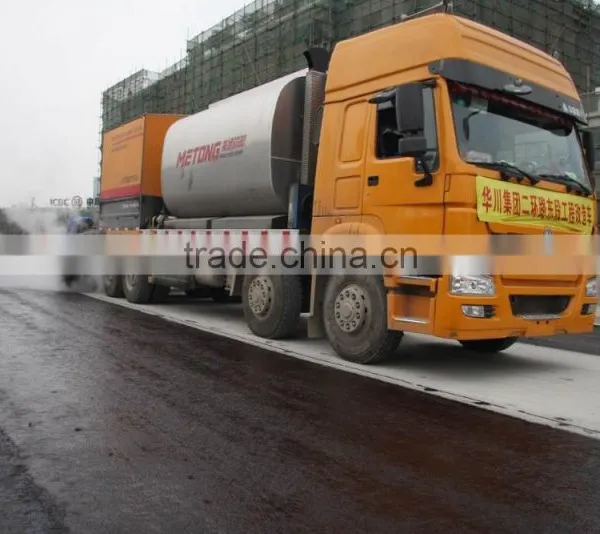

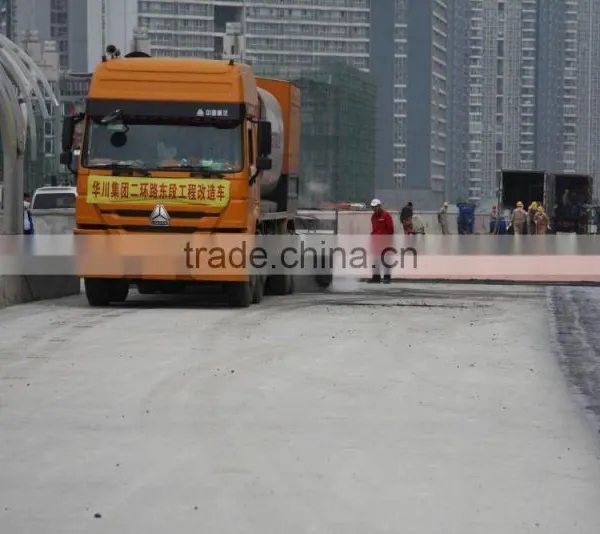

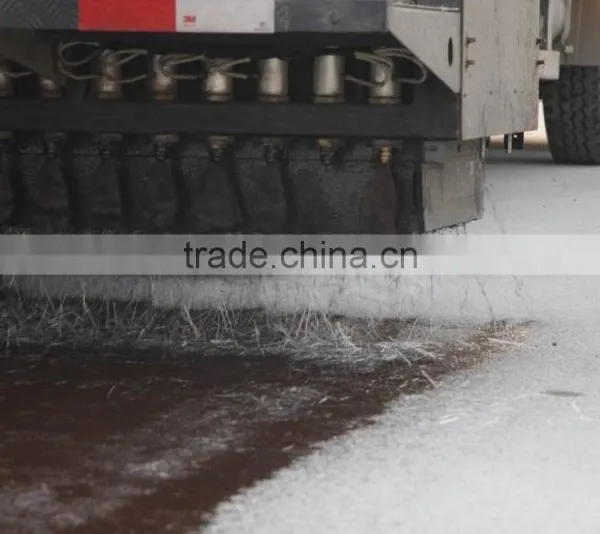

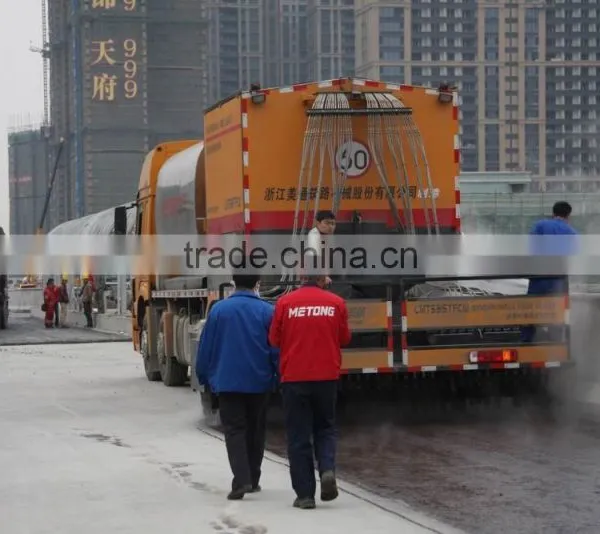

Synchronous fiber sealer spreads a seal coat with an infill of special between basal layer and road surface. This seal coat can block off the water from road surface, so can protect the due strength and fixedness and increase water resistance of whole roadway, shaking resistance, improve the performance of dent resistance and freedom from cracking, greatly increase the quality of waterproof layer and useful life. It is the essential equipment for construction of high-grade highway and bridge.
- I. Technical specification
Product |
Chip sealer with Fiberglass |
Model no. |
LMT5315TFCW |
Brand |
Metong |
Outline size |
12000×2500×3800 |
Bitumen tank(m3) |
9 |
Fiberglass tank(m3) |
6 |
Truck model |
ZZ1317N4667D1H |
Truck manufacturer |
Sinotruk |
Truck type |
Flat head,8×4,rear drive |
Tire model |
12.00R20 |
Approach angle/Departure angle(°) |
16/11 |
Engine power/velocity(kw/r/min) |
249/1900 |
Fuel type |
Diesel |
Engine model |
D10.34-40 |
Engine type |
Six cylinders, water-cooled, four strokes, Turbo Charger with Inter-cooler, high-pressure common-rail |
Emission standard |
Euro 4 |
Passenger in cab |
3 |
Max driving speed(km/h) |
90 |
Gross weight(kg) |
31000 |
Working speed(km/h) |
3~4 |
Max flow in the bitumen pump(L/min) |
570 |
Bitumen spray width(m) |
0.1~3.6 |
Bitumen spray rate(L/m2) |
2.8 |
Bitumen spray nozzle quantity(piece) |
72 |
Fiberglass storage volume(kg) |
4000 |
Fiberglass spread width(m) |
0.1~3.6 |
Optimal working speed(m/s) |
1.0 |
Transmission system |
Hydraulic |
Max pressure in hydraulic system(MPa) |
16 |
Bitumen heating system |
Hot oil circuit |
Clean system |
High pressure air |
II Main fitting
Name |
Quantity |
Supplier |
Truck |
1 |
Sinotruk/China |
Hydraulic pump |
1 |
Tianjin tejing/China |
1 |
Rexroth/Germany |
|
Hydraulic motor |
1 |
Sai/Italy |
2 |
SAUER/USA |
|
1 |
Guizhou liyuan/China |
|
1 |
Guizhou liyuan/China |
|
|
Hydraulic valve |
1 |
SAUER/USA |
1 |
Metong/China |
|
1 |
Metong/China |
|
1 |
Metong/China |
|
1 |
Metong/China |
|
1 |
Shanghai qiangtian/China |
|
1 |
Shanghai qiangtian/China |
|
3 |
Shanghai qiangtian/China |
|
Bitumen pump |
1 |
Johnson/Belgium |
Hot oil pump |
1 |
Wuan zhaohong/China |
Air compressor |
1 |
Hangzhou hanjue/China |
Burner |
1 |
Beckett/USA |
Cooler |
1 |
Xinxiang lida/China |
Sensor for the pump speed |
1 |
Turck/Germany |
Sensor for the truck speed |
1 |
Turck/Germany |
Control system |
1 |
Metong/China |
