METONG AR150B Asphalt Rubber Plant

Type

Name

Remark

Overall

Model

AR150B

Name

Asphalt Rubber Plant

Capacity

10T/h

Gross power

≤60kw

Optional not included

Size

Main frame(mm)

9500×2280×2310

Reaction tank(mm)

11800×2280×2310

Structure

Mobile

Ratio

Crumbed rubber 10%~25%

No.

Type

Name

Parameter

Remark

flow

capacity

1

main frame

Basic bitumen tank

5.5m³

Weigh sensor

Bitumen pump

400L/min

frequency control

Heat exhcanger

60m²

Rubber hopper

2.5m³

Screw feeder

frequency control

Feed capacity

2TPH

Mixer tank

Dual tank patent

High speed mixer

10TPH

Transfer pump

18m³/h

2

reaction tank

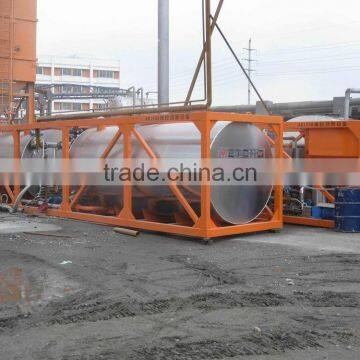

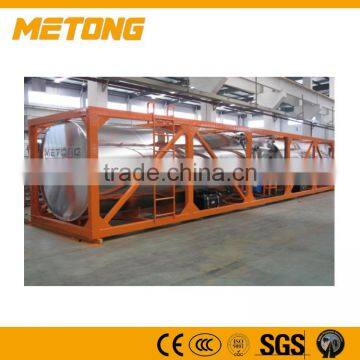

Reaction tank

10~11m³

2 pieces

Burner

200000cal

Screw mixer

horizontal

Plant pump

28~32m³/h

frequency control

Control box

Manual

3

control system

Control mode

PLC,auto/manual

Match mode

Touch screen

4

optional

Bitumen preheat tank

50m³

Finish storage tank

50m³

Hot oil furnace

600000cal

No.

Type

Name

Qty

Supplier

Remark

1

main frame

Basic bitumen tank

1

Metong

Weigh sensor

3

Trans

USA

Bitumen pump

1

Shanggui qingtian

Heat exchanger

1

Wuxi

Rubber hopper

1

Metong

Screw  feeder

1

Metong

Reducer

1

Boneng

Mixer tank

1

Metong

High speed mixer

1

Metong

Transfer pump

1

Bearcat

USA

Reducer

1

Boneng

2

reaction tank

Reaction tank

2

Metong

Dual heating

Burner

2

Riello

Italy

Screw mixer

2

Metong

Horizontal

Reducer

2

Boneng

Plant pump

1

Viking

USA

Reducer

1

Boneng

Thermal insulation valve

1

Shanggui qingtian

Control box

1

Taiyang

3

control system

PLC

1

Siemens

Germany

Frequency controller

3

Schneider

France

Main components

Schneider

France

4

optional

Bitumen preheat tank

1

Metong

Finish storage tank

1

Metong

Hot oil furnace

1

South Furnace
