Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Paving Machinery > MANUAL ASPHALT DISTRIBUTOR LMT5162GLQ ON HOWO TRUCK

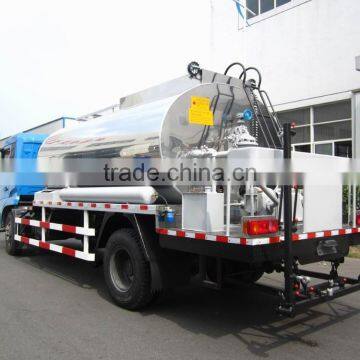

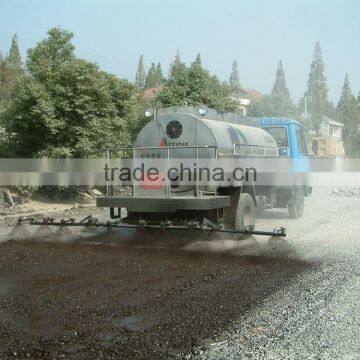

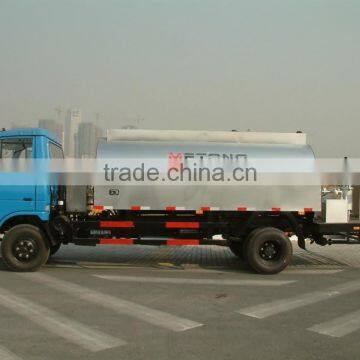

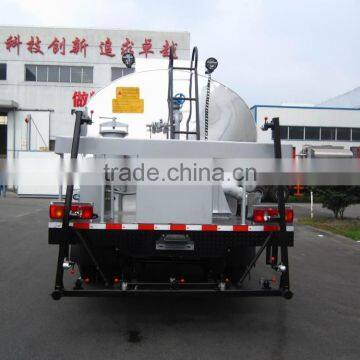

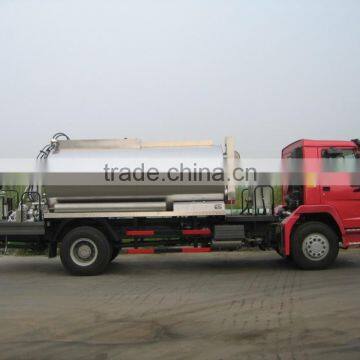

MANUAL ASPHALT DISTRIBUTOR LMT5162GLQ ON HOWO TRUCK
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
METONG
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shanghai, China
Brand Name
METONG
Certification
ISO
Warranty
1 YEAR
After-sales Service Provided
Engineers available to service machinery overseas
| LMT5162GLQ ASPHALT DISTRIBUTOR | ||||
| MAIN TECHNICAL PARAMETER | ||||
| Model | LMT5162GLQ | Engine Model | WD615.62 | |
| Chassis Model | ZZ1167M5011 | Displacement (L) | 9.726 | |
| Truck Type | flat head 4×2 rear drive | Max. Power (kw/r/min) | 196/2200 | |
| Dimension | 9500×2600×3300 | Max. Torque (N·m/r/min) | 1100/1400-1600 | |
| (L×W×H) mm | Burner Diesel Tank Capacity (L) | 35 | ||
| Cab Passenger | 2 | Cleaning Diesel Tank Capacity (L) | 60 | |
| Vehicle kerb Mass (kg) | 6910 | Fuel Tank Capacity (L) | 145 | |
| Rated Load Mass (kg) | 9090 | Hydraulic Oil Tank Capacity (L) | 90 | |
| Max. Total Mass (kg) | 16000 | Gearbox Model | HW15710 | |
| Distribution of Axle Load (KG) | Front Axle (no load) | 5020 | ||
| Front Axle (full load) | 6500 | |||
| Rear Axle (no load) | 6850 | Asphalt Pump Model | CLB450 | |
| Rear Axle (full load) | 9500 | Asphalt Pump Displacement (ml/r) | 450 | |
| Wheelbase (mm) | 5000 | Asphalt Pump Rotating Speed (r/m) | 300-1100 | |
| Tread (front/rear) mm | 2022/1830 | Power Take-off Model | Sinotruk | |
| Min. Ground Clearance (mm) | 248 | Burner Model | PQ-5 | |
| Suspension (front/rear) mm | 1500/2980 | Air Compressor Model | V-0.2/0.8 | |
| Approach/Departure Angle (°) | 16/20 | Rated Atmospheric Pressure (Mpa) | 0.6 | |
| Ramp Angle (°) | 23 | Hydraulic Pump Model | CBQ-F550 | |
| Max. Speed (km/h) | 90 | Hydraulic Motor Model | L2F63W2P2 | |
| Working Speed(km/h) | 6-15 | Rated Pressure (Mpa) | 20 | |
| Max. Gradeability (%) | >23 | Asphalt Tank Capacity (L) | 10000,8000L | |
| Tyre Model | 11.00-20×16PR | Nozzle | 13 | |
| Tyre Pressure front/rear (kPa) | 630/630 | Asphalt Spraybar Width (m) | 0~6 | |
| Main Drive Ratio | 4.22 | Asphalt Spraybar Value (kg/m2) | 0.3~3.0 | |
| Max. Braking Distance (m) | <10 | Emission Standard | EURO II | |
| Min. Turning Circle Dia. (m) | <23.8 | |||
| Oil Consumption (L/100km) | <26 | |||
| Parking Gradient (%) | >20 | |||
