Home > Manufacturing & Processing Machinery > Mixing Equipment > Drum Mixer > 10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 thumbnail-3

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 thumbnail-4

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 thumbnail-5

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 photo-1

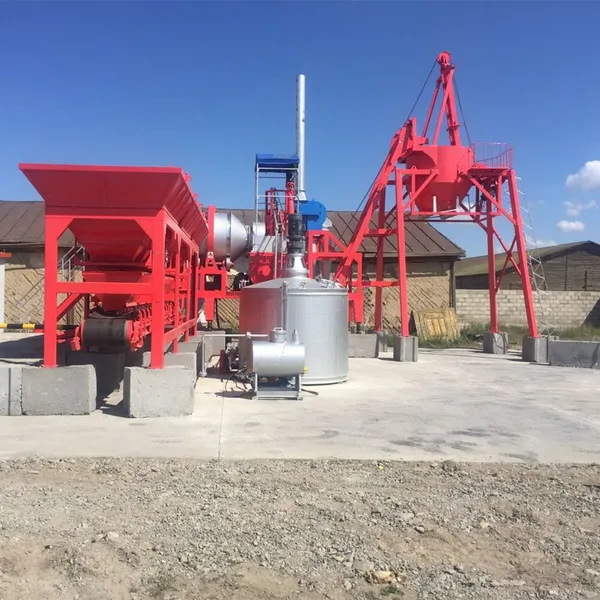

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 photo-2

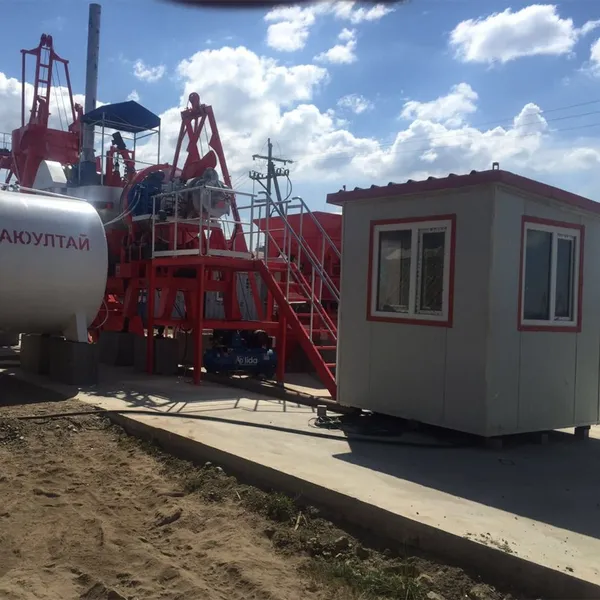

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 photo-3

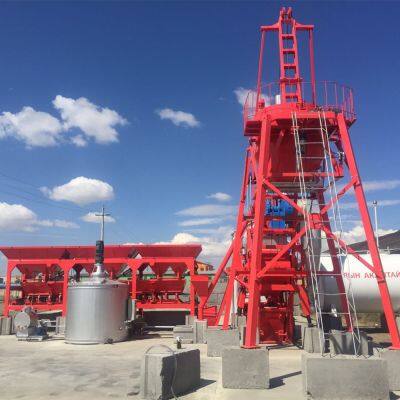

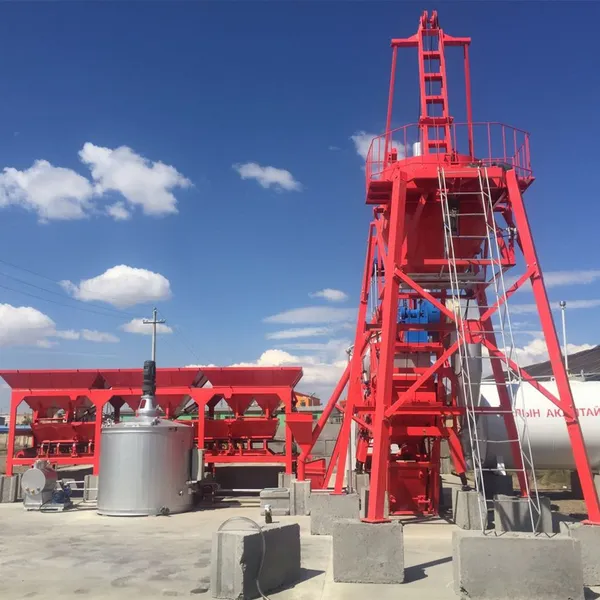

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 photo-4

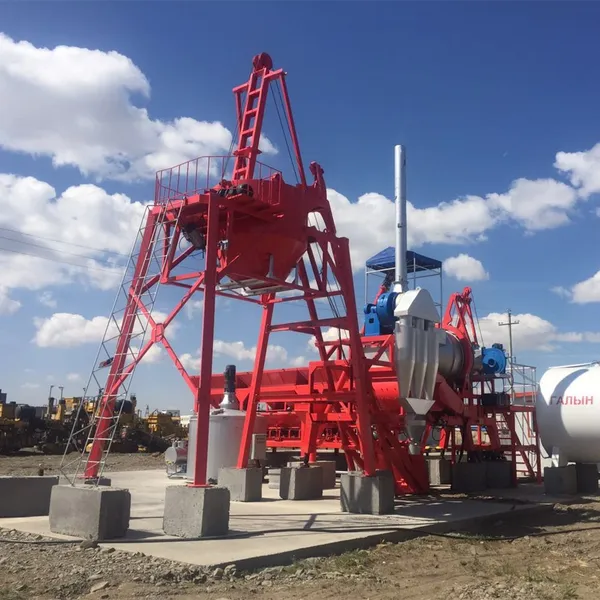

10tons Per Hour Capacity Mobile Asphalt Mixer Plant QCQ10 photo-5

Product Spotlights

It’s components by main part, finished product ,cold feeder, electric control cabinet ,control room.(main part include rotary whole dragging system ,cyclone burner ,aggregate elevator ,dry drum ,mixer ,mixer shell, bitumen conveyer measurement device.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Trading Company

Year Established:

2005

Factory Size:

1,000-3,000 square meters

Contact Supplier Request Quote Chat Now

Wuhan Kudat Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

45 days

Product Details
Company Profile
Contact Us

QCQ Series Mobile Asphalt Mixing Equipment

Its components by main part, finished product ,cold feeder, electric control cabinet ,control room.(main part include rotary whole dragging system ,cyclone burner ,aggregate elevator ,dry drum ,mixer ,mixer shell, bitumen conveyer measurement device, filler conveyer measurement device , multi-tube dust catcher device ,air compressor ,chassis and brake staff support leg. )

QCQ-10 Technical Parameters list

No.	Name item	Technical parameter
1	Rated capacity	10t/h(Standard conditions)
3	Output temp	120-180℃(Adjustable)
4	Applicability	Bitumen 、asphalt dinas 、asphalt sand
5	Investment	oil (5.5-7.5kg/t)
6	Drying drum rotate speed	18 Turn/min
7	Feeding capacity	400 kg
8	Assort total power	Oil burning：46 kw
9	Mixer power	15 kw
Drum driving power	4 kw
Burner power	7 kw
Draught power	4 kw
Agg elevator power	3 kw
Asphalt tank power（Optional）	11 kw
Filler screw conveyor power	1.5 kw
Finished product elevator power	3 kw
Agg weight conveyor power	3 kw
Air compressor power	2.2 kw
10	Control-driven Type	PLC Programmable electrical control
11	Measuring precision	Aggregate	±2.5%
Filler	±2%
Bitumen	±1.5%
12	Power supply	Voltage	A.C 380V
Frequency	50HZ
