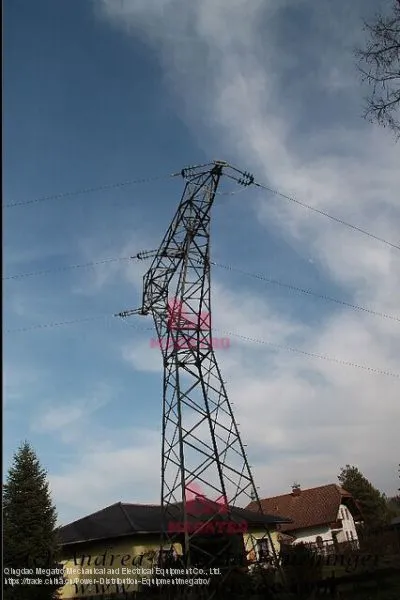

30kv single circuit lattice tower

30KV SINGLE CIRCUIT  LATTICE TOWER
A single-circuit transmission line carries conductors for only one circuit. For a three-phase system, this implies that each tower supports three conductors. In single-circuit towers the conductors are lined up horizontally. Both tubular and lattice steel towers can be designed so as to support single-circuit of electrical current. Single-circuit towers hold the different conductors stacked atop one another, while in single-circuit towers the conductors are lined up horizontally.

MEGATRO design 30KV single circuit tower with follow types:

(1)Horizontal type
(2) Vertical type
(3) Delta type
(4) H-frame type
(5) Monopole tubular type
(6) Others


Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.

MEGATRO fabricates every structure of single circuit 30KV tower by solid steel legs and pipes. Structures can reach heights up to 80 meter as per client requirements. MEGATRO is one of the few manufactures who assemble a face of every multi circuit tower section. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 30KV towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.

Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Minimum order: 1 set
Fabrication standard: Chinese Standard or other standard which client accepted

Steel grades
Tower legs: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard

If any special requirement, we can design and discuss with client.
