MEGATRO 110KV 1E5 SJ1 double circuit light angle tension tower

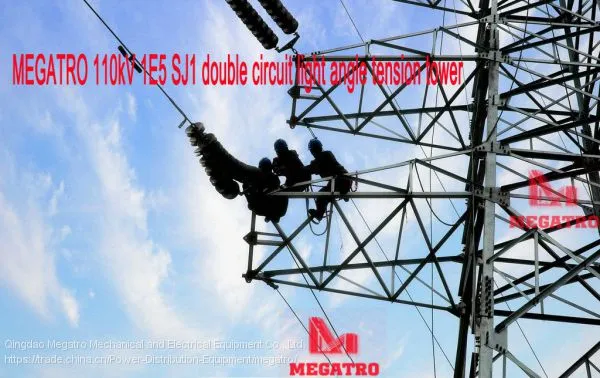

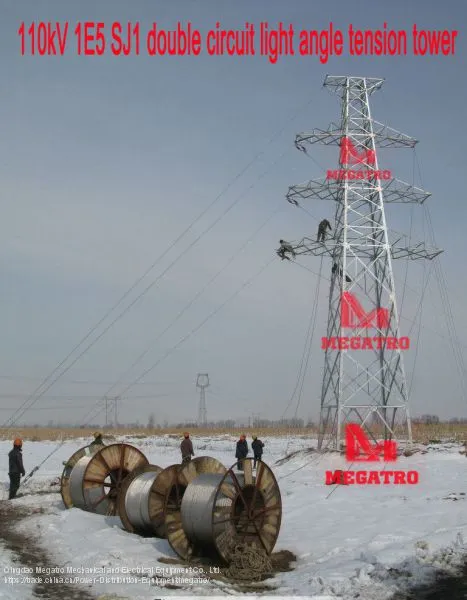

This photo refers to our 110kV 1E5 SJ1 double circuit light angle tension tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:

1 climate condition

2 tower design data

3 Tower estimated weight and foundation force

MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 110kV 1E5 SJ1 double circuit light angle tension tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.

Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:

l       Full Turn-Key provider including site acquisition, engineering services, manufacturing,   field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownership

l       Specialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructure

l       Single source from Design to System Integration

l       Top quality, ISO 9001 registered

MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.

Besides, MEGATRO is one of the few manufactures who assemble a face of 110kV 1E5 SJ1 double circuit light angle tension tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 110kV 1E5 SJ1 double circuit light angle tension towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. All finished surfaces shall be level and free of tears, burrs, clots and impurities.
