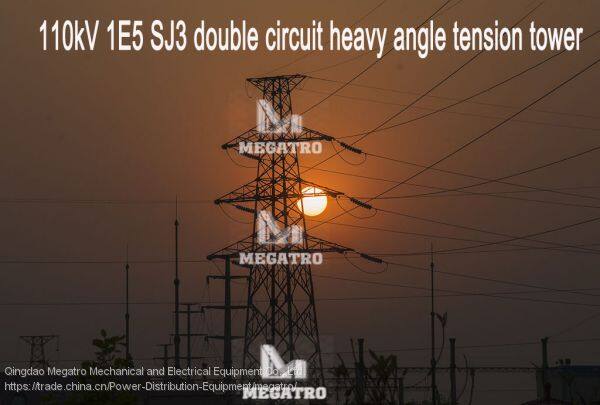

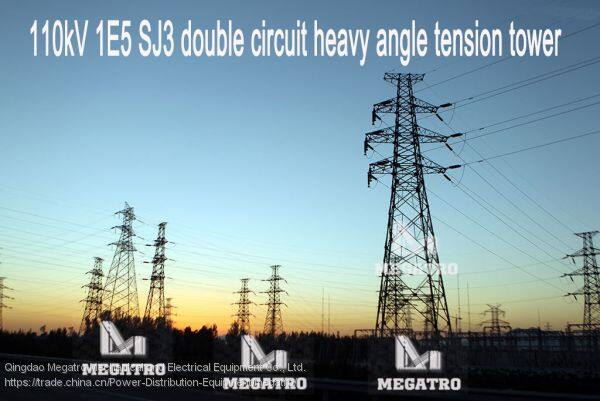

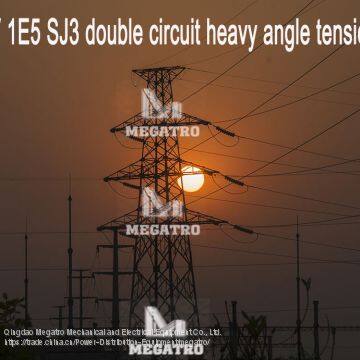

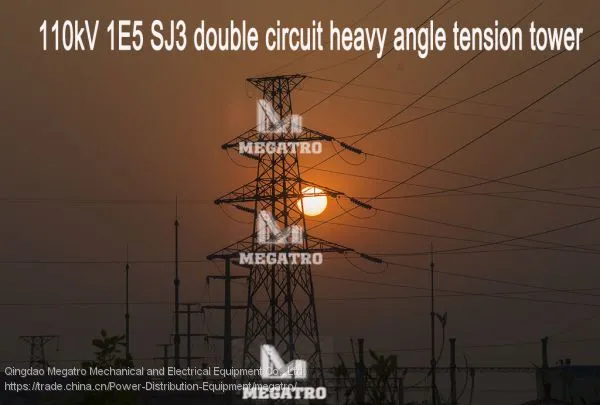

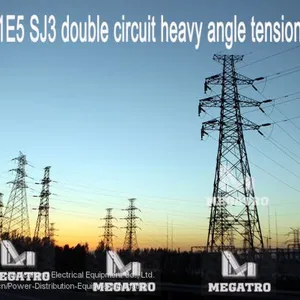

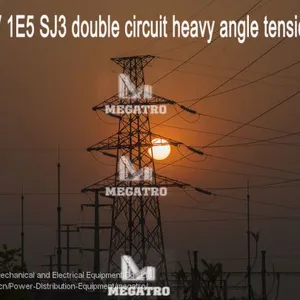

This photo refers to our 110kV 1E5 SJ3 double circuit heavy angle tension tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:

1 climate condition

Item

Temperature (℃)

Wind speed (m/s)

Ice thickness (mm)

Max. temperature

40

0

0

Mini. temperature

-30

0

0

Ice thickness

-5

10

10

Basic wind speed

-5

27

0

Installation condition

-15

10

0

Annual temperature

5

0

0

Lightning overvoltage

15

10

0

Operation overvoltage

5

15

0

Hot-line work

15

10

0



2 tower design data



Tower

type

Nominal

Height

scope

(mm)

Nominal

Height

(mm)



Horizontal

span

(m)

Vertical

Span

(m)



Angle

20

Insulator

Type



Horizontal

Span at angel condition

1E5-SJ3

15～24

24

400

700

20~40

/

/

Conductor type: 2×LGL-240/30

OPGW: JLB-100



3 Tower estimated weight and foundation force



Tower

Type

Tower weight   scope (kg)

Foundation force scope (KN)

Tmax

Tx

Ty

Nmax

Nx

NY

1E5-SJ3

13080～16793

1581～1642

169～171



156～160



1851～1931

199～201

178～185



4Here is the design strength of Chinese tower steel

Steel material

Anti-push, bending and press strength (N/mm2)

Anti-shear strength

(N/mm2)

Grade

Thickness or diameter (mm)

Q235

Steel

≤16

215

125

>16～40

205

120

>40～60

200

115

>60～100

190

110

Q345

Steel

≤16

310

180

>16～35

295

170

>35～50

265

155

>50～100

250

145

Q420

Steel

≤16

380

220

>16～35

360

210

>35～50

340

195

>50～100

325

185

Q460

Steel

≤16

415

240

>16～35

395

230

>35～50

380

220

>50～100

360

210



5 Here is the design strength of our Chinese tower bolts

Item

Grade

Anti-push strength (N/mm2)

Anti-shear strength (N/mm2)

Fastener

for towers

4.8

200

170

5.8

240

210

6.8

300

240

8.8

400

300

Anchor

 bolts

Q235

160

/

Chinese 35 steel

190

/

Chinese 45 steel

215

/



Remark: above technical data only references for our client, we can design every type for our overseas clients.
