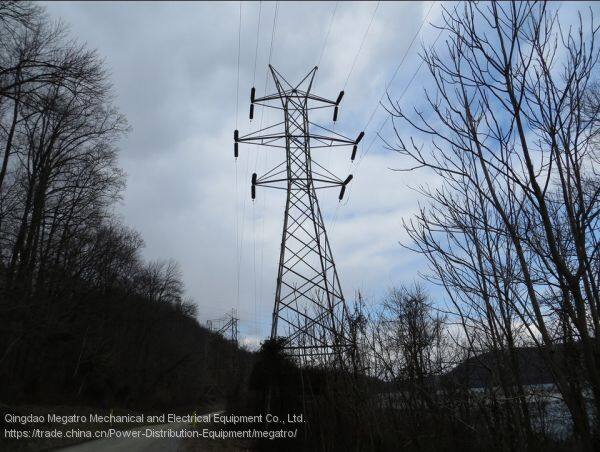

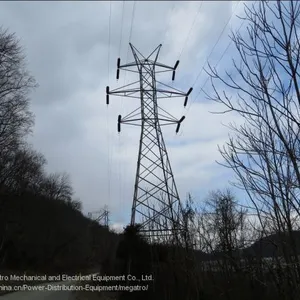

69kv Angle Tower for Transmission

MEGATRO produce, design and install galvanized angle steel tower for 69KV power transmission line project, and provide service on site for 69KV overhead transmission line.

69KV power transmission line belongs to middle voltage grade, used for sub-transmission and transmission of bulk quantities of electric power and connection to very large consumers. Our 69KV overhead transmission line steel tower including many types, such as lattice angular tower, tubular tower, monopole, or guyed towers and mast. Now we mainly provide 69KV angel steel tower for some ASIAN countries and Northern American countries.

MEGATRO is equipped with sophisticated machinery and equipment for the manufacture of lattice angle steel tower for 69KV power transmission line project, we have skilled worker with certificated welders, and offers a variety of tower types to meet client specific. MEGATRO is one of the few manufactures who assemble a face of 69KV overhead transmission line steel tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies.

After fabrication all 69KV overhead transmission line steel tower are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.

MEGATRO's 69KV overhead transmission line angle steel tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.

Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 5 tons
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Besides conform to the drawing and design, the materials and fabrication of tower components shall conform to the following standards (Chinese Standard or other standard):
1. GB/T2694-2003 Transmission line tower - - Technical requirements for manufacturing
2. JGJ81-2002: Technical specification for welding for steel structure of building
3. GB9787-88: Measuring and allowable tolerance for hot-rolled equal angle
4. GB709-88: Measuring and allowable tolerance for hot-rolled plate and strip
5. GB/T699-1999: Quality Carbon Structural Steel
6. GB/T1591-1994: Low alloy high strength structural Steel
7. GB700-88: Carbon Structural Steel
8. GB222-84: Method of sampling steel for determination of chemical composition and permissible variations
9. GB/T228-2002: Method for Tensile testing of metals
10 GB/T232-1999: Method for Bending test of metals
11 GB/T5117-1995: Carbon Welding Rod
12 GB/T5118-1995: Low Alloy Welding Rod
13 GB/T869-1995: Welding wires for gas shielding arc welding of carbon and low alloy steels
14 GB/T10045-2001: Carbon steel flux cored electrodes for arc welding
15 JB/T7949-1999: Weld outer dimensions for steel construction
16 GB50205-2001: Test Standard for Acceptance of Steel Structure
17 GB/T470-1997: Zinc Ingot
18 GB3098.1-2000: Mechanical properties of fasteners-Part 1: Bolts, screws and studs
19 GB3098.2-2000: Mechanical properties of fasteners-Part2: Nuts, and thread
20 GB3098.3-2000: Mechanical properties of fasteners-Part3: Fastening screw
21 GB/T5780-2000: Helical Bolts Grade C
22 GB/T41-2000: Helical Nuts Grade C
23 GB/T90-2002: Flat Washer Grade C
24 GB/T13912-2002: Metal Coating, Technical Requirement
