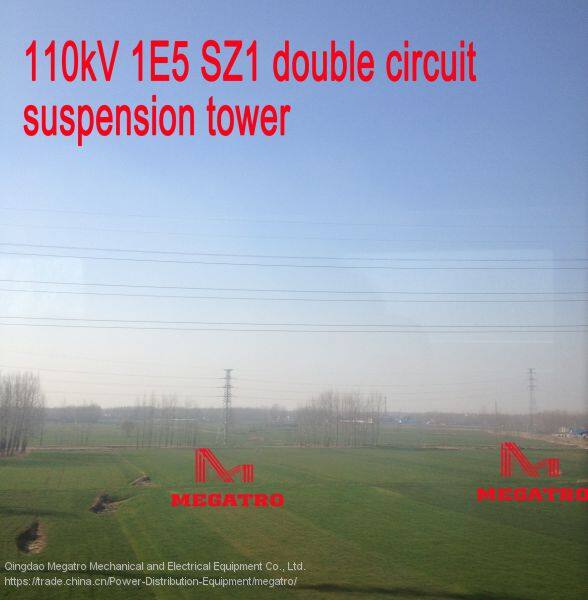

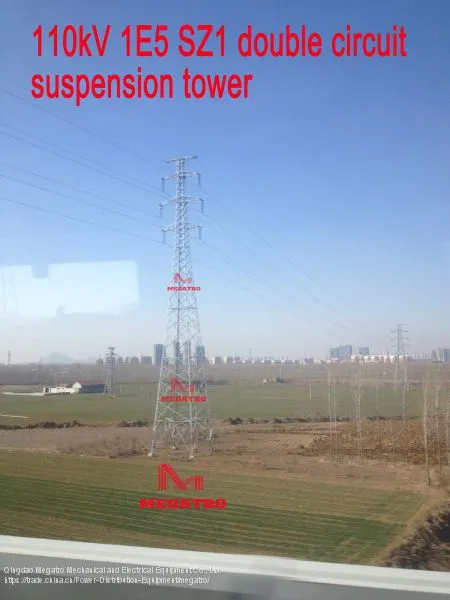

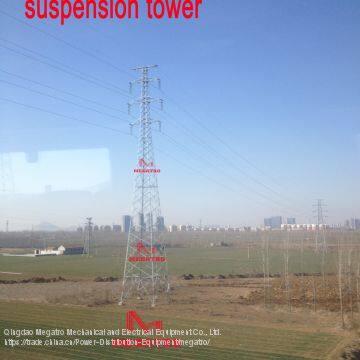

This photo refers to our 110kV 1E5 SZ1 double circuit suspension tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-30 |
0 |
0 |
Ice thickness |
-5 |
10 |
10 |
Basic wind speed |
-5 |
27 |
0 |
Installation condition |
-15 |
10 |
0 |
Annual temperature |
5 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
5 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height scope (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
1E5-SZ1 |
15～24 |
21 |
350 |
450 |
/ |
I type insulator |
/ |
24 |
340 |
450 |
|||||
Conductor type: 2×LGL-240/30 |
OPGW: JLB-100 |
||||||
3 Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
1E5-SZ1 |
6209～7828 |
446～472 |
34～36
|
38
|
619～656 |
47～49 |
50～52 |
4Here is the design strength of Chinese tower steel
Steel material |
Anti-push, bending and press strength (N/mm2) |
Anti-shear strength (N/mm2) |
|
Grade |
Thickness or diameter (mm) |
||
|
Q235 Steel |
≤16 |
215 |
125 |
>16～40 |
205 |
120 |
|
>40～60 |
200 |
115 |
|
>60～100 |
190 |
110 |
|
|
Q345 Steel |
≤16 |
310 |
180 |
>16～35 |
295 |
170 |
|
>35～50 |
265 |
155 |
|
>50～100 |
250 |
145 |
|
|
Q420 Steel |
≤16 |
380 |
220 |
>16～35 |
360 |
210 |
|
>35～50 |
340 |
195 |
|
>50～100 |
325 |
185 |
|
|
Q460 Steel |
≤16 |
415 |
240 |
>16～35 |
395 |
230 |
|
>35～50 |
380 |
220 |
|
>50～100 |
360 |
210 |
|
5 Here is the design strength of our Chinese tower bolts
Item |
Grade |
Anti-push strength (N/mm2) |
Anti-shear strength (N/mm2) |
|
Fastener for towers |
4.8 |
200 |
170 |
5.8 |
240 |
210 |
|
6.8 |
300 |
240 |
|
8.8 |
400 |
300 |
|
|
Anchor bolts |
Q235 |
160 |
/ |
Chinese 35 steel |
190 |
/ |
|
Chinese 45 steel |
215 |
/ |
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide 110kV 1E5 SZ1 double circuit suspension tower and design this type mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:
l Full Turn-Key provider including site acquisition, engineering services, manufacturing, field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownership
l Specialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructure
l Single source from Design to System Integration
l Top quality, ISO 9001 registered
