MEGATRO 110kV 1D2 SJ1 Double Circuit Light Angle Tension Tower

MEGATRO 110kV 1D2 SJ1 Double Circuit Light Angle Tension Tower thumbnail-1
MEGATRO 110kV 1D2 SJ1 Double Circuit Light Angle Tension Tower thumbnail-2
MEGATRO 110kV 1D2 SJ1 Double Circuit Light Angle Tension Tower photo-1
MEGATRO 110kV 1D2 SJ1 Double Circuit Light Angle Tension Tower photo-2
US$ 920 - 960 MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
Megatro
Place of Origin:
China
Model Number:
MGP-110kv-1D2-SJ1
Contact Supplier Request Quote Chat Now
Qingdao Megatro Holding Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or as per clients
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Megatro
Place of Origin China
Model Number MGP-110kv-1D2-SJ1

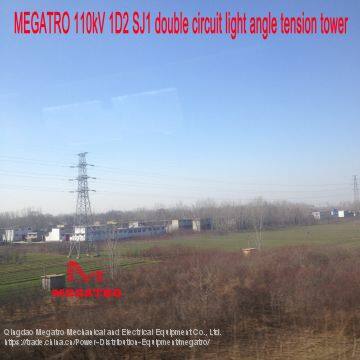

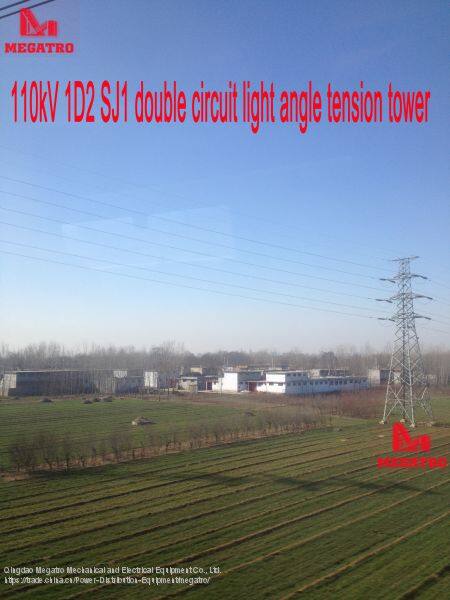

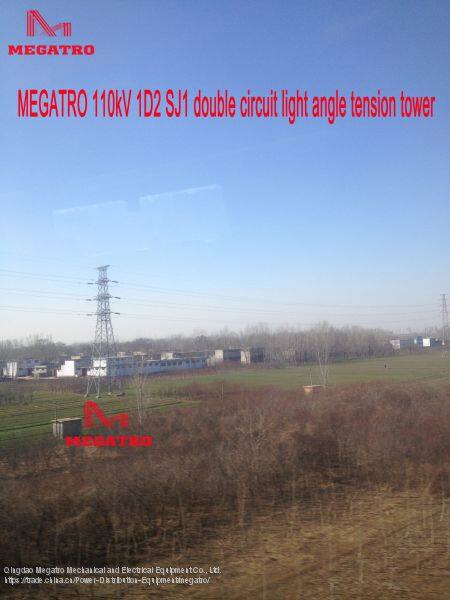

This photo refers to our 110kV 1D2 SJ1 double circuit light angle tension tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:

1 climate condition

Item

Temperature (℃)

Wind speed (m/s)

Ice thickness (mm)

Max. temperature

40

0

0

Mini. temperature

-30

0

0

Ice thickness

-5

10

10

Basic wind speed

-5

25

0

Installation condition

-10

10

0

Annual temperature

5

0

0

Lightning overvoltage

15

10

0

Operation overvoltage

5

15

0

Hot-line work

15

10

0



2 tower design data



Tower

type

Nominal

Height

scope

(mm)

Nominal

Height

(mm)



Horizontal

span

(m)

Vertical

Span

(m)



Angle

º

Insulator

Type



Horizontal

Span at angel condition

1D2-ZM1

15～24

24

450

700

0～20

/

/

Conductor type: 1×LGL-300/40

OPGW: JLB-100



3 Tower estimated weight and foundation force



Tower

Type

Tower weight   scope (kg)

Foundation force scope (KN)

Tmax

Tx

Ty

Nmax

Nx

NY

1D2-ZM1



7553～9721

511～534

53～59



54～55



627～651

66～67

67～68

MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 110kV 1D2 SJ1 double circuit light angle tension tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.

Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:

l       Full Turn-Key provider including site acquisition, engineering services, manufacturing,   field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownership

l       Specialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructure

l       Single source from Design to System Integration

l       Top quality, ISO 9001 registered

A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.

MEGATRO mainly design all kinds of towers and posts for:

a.    Telecoms

b.    Power transmission

c.    TV and Radio Broadcast

d.    Roads and City Development

e.    Wind energy solution

f.     Steel structure and workshop



Our complete selection of towers includes:

a.    Self-supporting

b.    Monopoles

c.    Guyed towers

d.    Custom-designed radar towers

e.    Broadcast towers

f.     Power transmission



MEGATRO also designs and manufactures tower related products including:

a.    Fall protection

b.    Antenna brackets

Other accessories if needed by clients



Product Tags: 110kv steel tower , 110kv iron tower , 110kv power tower
