MEGATRO 110kV 1E5 SDJ Double Circuit Terminal and Tension Tower

Name: MEGATRO 110kV 1E5 SDJ Double Circuit Terminal and Tension Tower
Brand: Megatro
SKU: 142185866

MEGATRO 110kV 1E5 SDJ Double Circuit Terminal and Tension Tower thumbnail-1

MEGATRO 110kV 1E5 SDJ Double Circuit Terminal and Tension Tower photo-1

Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Megatro

Place of Origin:

China

Model Number:

MGP-110kv-1E5-SDJ

Contact Supplier Request Quote Chat Now

Qingdao Megatro Holding Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or as per clients

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Brand Name Megatro

Place of Origin China

Model Number MGP-110kv-1E5-SDJ

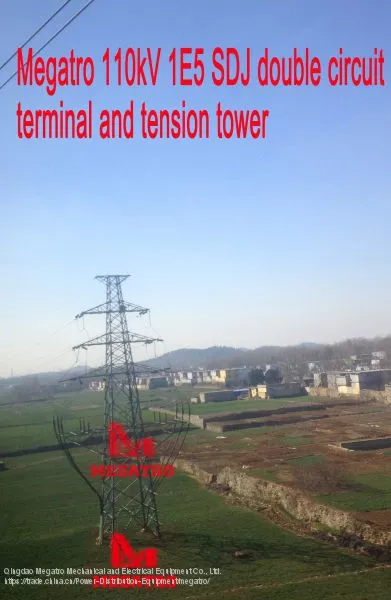

This photo refers to our 110kV 1E5 SDJ double circuit terminal and tension tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:

1 climate condition

Item	Temperature (℃)	Wind speed (m/s)	Ice thickness (mm)
Max. temperature	40	0	0
Mini. temperature	-30	0	0
Ice thickness	-5	10	10
Basic wind speed	-5	27	0
Installation condition	-15	10	0
Annual temperature	5	0	0
Lightning overvoltage	15	10	0
Operation overvoltage	5	15	0
Hot-line work	15	10	0

2 tower design data

Tower

type

Nominal

Height

scope

(mm)

Nominal

Height

(mm)

Horizontal

span

(m)

Vertical

Span

(m)

Angle

Insulator

Type

Horizontal

Span at angel condition

1E5-SDJ

15～24

300

500

0~90

Conductor type: 2×LGL-240/30

OPGW: JLB-100

3 Tower estimated weight and foundation force

Tower

Type

Tower weight scope (kg)

Foundation force scope (KN)

T_max

T_x

T_y

N_max

N_x

N_Y

1E5-SDJ

16015～20613

1779～1814

231～241

276～280

2032～2089

322～326

256～272

MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 110kV 1E5 SDJ double circuit heavy angle tension tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.

Product Tags: 110kv Dc dead end tower , 110kv electrical pylons , 110kv Dc strain tower
