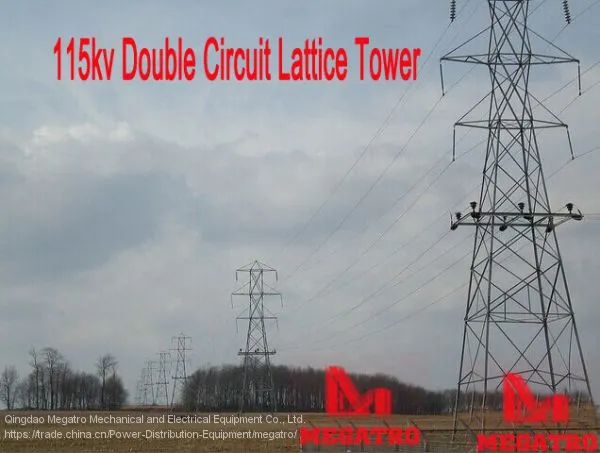

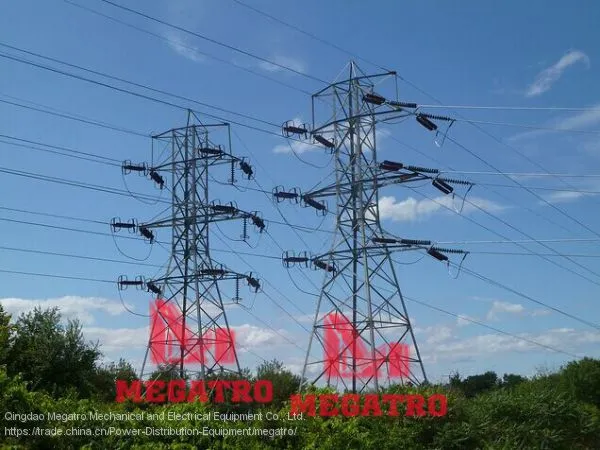

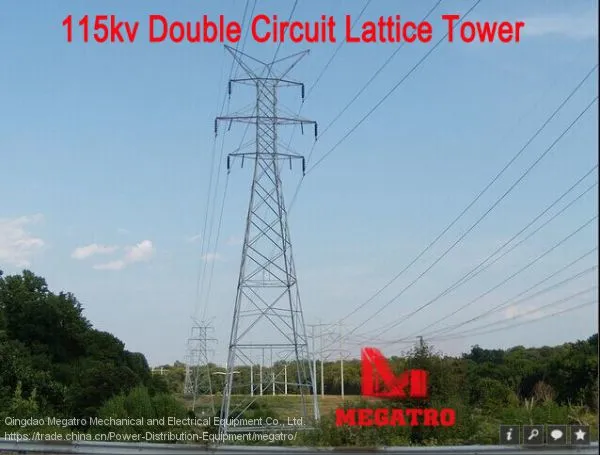

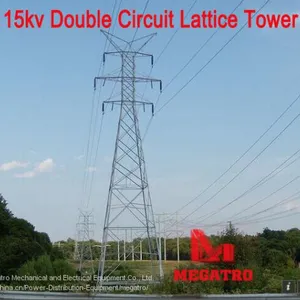

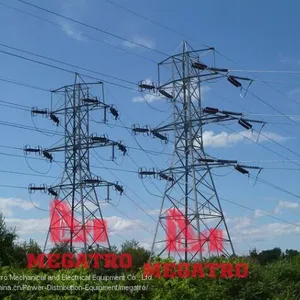

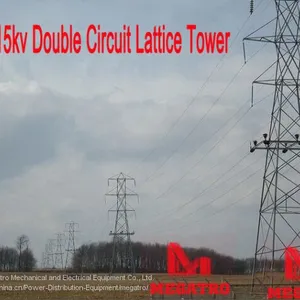

115KV DOUBLE CIRCUIT LATTICE TOWER
115KV double circuit transmission line tower is widely used in oversea market, especially in western countries. Double-circuit transmission line have two circuits and hold the different conductors stacked atop one another, while in single-circuit towers the conductors are lined up horizontally.
MEGATRO can optimized design and make tower less weight, high strength, proper span distance, good wind resistance, and economy in the use of materials, especially in tower design, we can make final weight lower, with maximum utility of material and make total structure more strong and sturdy. MEGATRO is equipped with sophisticated machinery and equipment for the manufacture of 115KV double circuit tower, and offers a variety of designs to meet client specific.
Our main design engineer fromUSA, can use PLS &TOWER software to design every type steel tower based on structural calculations and geometrical frame drawings. To meet the expectation, we produce shop drawings, components list and full production documentation, and even complete 3D models that facilitate the elimination of all design and drawings errors generated on the drawings. Another advantage is our 3D design and loading & design report, and can optimized the design and save cost for our clients.
MEGATRO had professional QA &QC team to control quality and execute strict QC & QC plan as per client requirements. MEGATRO is one of the few manufactures who assemble a face of 115KV overhead transmission line steel tower. After fabrication all 115KV double circuit transmission line steel tower, are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers.
MEGATRO is one of the few manufactures who assemble a face of every tower section. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies.
Other information
Place of Origin: Qingdao, Shandong,China.
Availability size: Based on the customer's requirements
Material: Chinese material or as per clients requirement
Fabrication: Based on the customer's drawings and technical requirements
Package: Both parties discuss and agreed before delivery
Terms of Payment: L/C, T/T
Minimum Order Quantity: 1 set
Port of Loading: Qingdao Port
Delivery Time: One month or based on the customer's needs
Fabrication standard: Chinese Standard or other standard which client accepted
Steel grades
tower legs: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
a) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
b) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
c) The welding will be performance in accordance with AWS D1.1 or CWB standard
If any special requirement, we can design and discuss with client.
