Hydraulic Shaping Machine

Name: Hydraulic Shaping Machine
Brand: TIMAC
SKU: 140797902
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

SMH-700

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number SMH-700

Voltage 380V/50HZ

Power(W) 4kw(main motor)

Dimension(L*W*H) 2470*1350*1500mm

Weight 2500kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

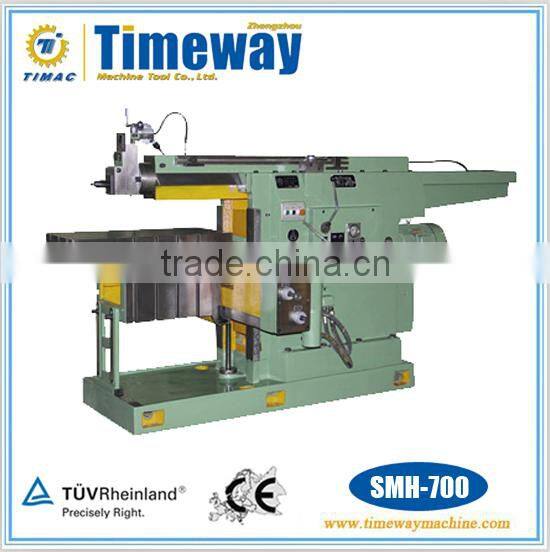

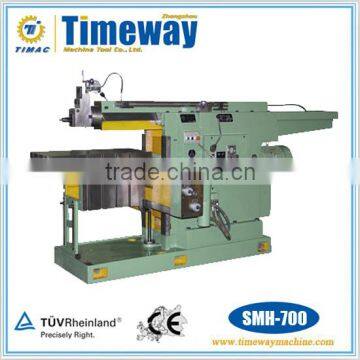

Hydraulic-Drive Horizontal Shaping Machine

SMH-700 SMH-850 SMH-900

Main Outlook

Product Description

Functions and Features

Being designed for cutting various plane and formed surfaces, the machine is suitable for single piece and small batch production.
The feeding and main cutting motion of the machine are driven by hydraulic power with smooth transmission and their speed can be adjustable steplessly. Provided with a safety device against overload, the machine is easy to start and stop with short over-range. And it can also suit the needs of heavy-duty and continuous cutting with the characters of high rigidity, big cutting force, high precision of conver-sion, low oil temperature, less thermo-deformation and stable machining accuracy.
The table of the machine can travel either vertically or horizontally and the tool head is equipped with a lifter device. The machine is convenient to operate with the handles being centralized.

Specifications List

Technical Parameters

Specifications	Units	SMH-700	SMH-850	SMH-900
Max. shapping length	mm	700	900	900
Max. range of the horizontal movement of the table	mm	600	600	600
Max. distance between the ram bottom and table	mm	350	450	450
Max. length of the vertical movement of table	mm	300	400	400
Dimensions of table top(length*width)	mm	700*400	900*400	900*400
Max. stroke length of the tool head	mm	150	150	150
Max. swivel angle of the tool head	°	±60	±60	±60
Max. section of tool(W*H)	mm	22*30	22*30	22*30
The table range of horizontal feed of ram reciprocation per minute	mm	0.25-1.8	0.25-1.8	0.25-1.8
Horizontal feed with the table		Stepless	Stepless	Stepless
Max. working force		1500	1500	1500
Max. loading weight on worktable	kg	200	200	200
Speed of rapid travel of table(Horizontal/Vertical)	m/min	1.57/0.35	1.57/0.35	1.57/0.35
Width of the T-slot for center positioning	mm	18	18	18
Power of the main motor	kw	4	4	4
Power of the motor for rapid travel of table	kw	0.75	0.75	0.75
Net weight	kg	2500	2700	2700
Machine dimensions(LWH)	mm	247013501500	267013501600	267013501600

Working Accuracy

Flatness of machined surface on tested workpiece	mm	0.025	0.025	0.025
Parallelism of machined surface on tested workpiece to base	mm	0.03	0.03	0.03
Parallelism of machined surface on the side to that on the other side on tested workpiece	mm	0.05	0.05	0.05
Verticality of machined side surface on the side of tested workpiece against base	mm	0.02	0.02	0.02
Surface roughness	um	Ra6.3	Ra6.3	Ra6.3
