Horizontal Shaping Machine
- 500 Set / Sets per Month
- China Port
- T/T Credit Card
- vertical metal slotting machine BC5063 with CE standard factory direct sell
- factory direct sell vertical metal slotting machine BK5032 with CE standard
- factory direct sell vertical metal slotting machine BK5035 with CE standard
- vertical metal slotting machine BC50100 factory direct sell
- Heavy Duty BC50125 Metal Slotting Machine with CE from China Factory
- factory direct sell vertical metal slotting machine BK5030 with CE standard
Product Details
Condition: | New | Brand Name: | TIMAC | Model Number: | SM-630B |
Voltage: | 380V/50HZ | Power(W): | 3(main motor) | Dimension(L*W*H): | 2382*1210*1504mm |
Weight: | 2200kg | Certification: | CE ISO9001 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

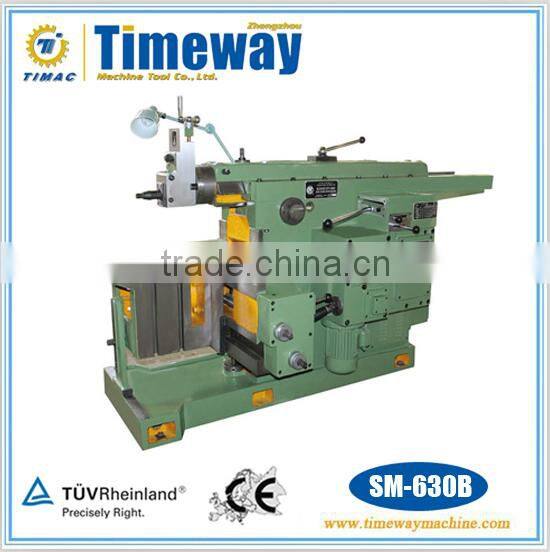

Horizontal Shaping Machine
SM-500B SM-630B SM-680B
Applications and Features
- The machine is designed for cutting flat and formed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special device or a dividing head and it is suitable for single piece and small batch production as well.
- The main cutting motion of the machine is linear motion being converted from circular motion of gears by linkblock mechanism, with smooth transmission, short over-range and less consume of power, the machine is easy tostart and stop.
- Being provided with a tool lifter, the worktable can rapid motion in vertical and horizontal direction. The machine with pleasing appearance and stable accuracy, operate and maintain conveniently.
Technical Parameters
Specifications | Units | SM-500B | SM-630B | SM-680B |
Max. shaping length | mm | 500 | 650 | 680 |
Max. range of the horizontal movement of the worktable | mm | 525 | 630 | 630 |
Max. distance between the ram bottom and worktable | mm | 370 | 380 | 380 |
Max. length of the vertical movement of worktable | mm | 270 | 315 | 315 |
Dimensions of worktable(L*W) | mm | 440*360 | 630*400 | 680*400 |
Max. stroke length of the toolhead | mm | 120 | 120 | 120 |
Swivel angle of the toolhead | deg. | ±60 | ±60 | ±60 |
Max. section of tool shank(W*H) | mm | 20*30 | 20*30 | 20*30 |
Number of ram reciprocation per minute | time/min | 14-80 | 14-80 | 14-80 |
Range of table feed(horizontal/vertical) | mm | 0.2-2.5/0.08-1 | 0.2-2.5/0.08-1 | 0.2-2.5/0.08-1 |
Speed of rapid travel of table(horizontal/vertical) | m/min | 0.95/0.38 | 0.95/0.38 | 0.95/0.38 |
Width of the T-slot for center positioning | mm | 18 | 18 | 18 |
Power of the main motor | kw | 3 | 3 | 3 |
Power of the motor for rapid travel of worktable | kw | 0.55 | 0.55 | 0.55 |
Net weight | kg | 1800 | 2200 | 2200 |
Machine dimensions(L*W*H) | mm | 2160*1070*1194 | 2382*1210*1504 | 2382*1210*1504 |
Working Accuracy
Flatness of machined surface on tested workpiece | mm | 0.025 | 0.025 | 0.025 |
Parallelism of machined surface on tested workpiece to base | mm | 0.03 | 0.03 | 0.03 |
Parallelism of machined surface on the side to that on the other side on tested workpiece | mm | 0.05 | 0.05 | 0.05 |
Verticality of machined side surface on the side of tested workpiece against base | mm | 0.02 | 0.02 | 0.02 |
Surface roughness | um | Ra6.3 | Ra6.3 | Ra6.3 |
