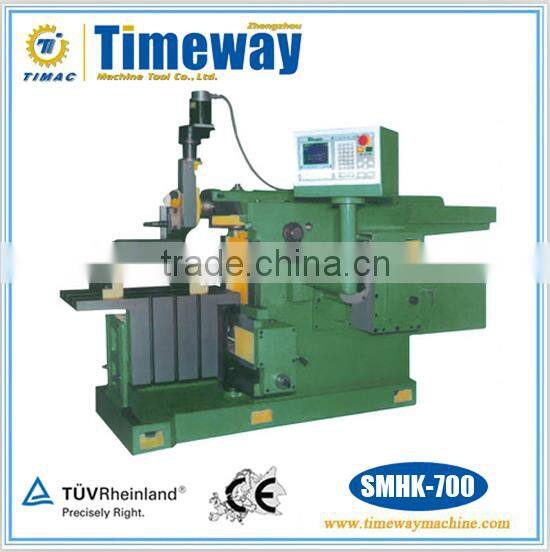

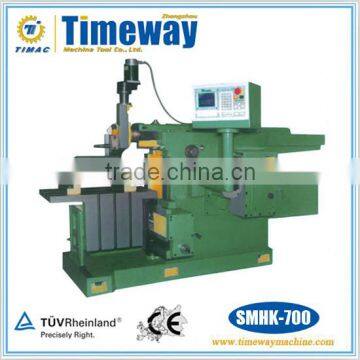

CNC Horizontal Shaping Machine
SMHK-700 SMHK-850 SMHK-900
Applications and Features
- The series machine is used for shaping flat surface and formed surface and grooves of all kinds of small and medium-size workpieces, as well as machining the surface of special shape, it is suitable for single piece and small batch production.
- The main cutting motion of the machine adopts hydraulic transmission device, smooth transmission, it can realize the infinite speed adjustment with hydraulic overload safety device.
- The machine adopts CNC control system, transverse feeding motion is controlled by high-precision ball screw with servo motor driven, realize precise automatic feed and more accurate rapid moving.
- Lifting movement of tool carriage is controlled by high-precision ball screw with servo motor driven, in order to realize the tool carriage accurate and fast feed movement, to meet the requirements of various complicated working condition.
- The CNC shaping machine is a novel design of precision profiling CNC planer, on the basis of my factory brand products SMH-900 hydraulic shaping as the host, refine the hydraulic transmission, and set up double coordinate linkage CNC system by an innovation idea.
- The appearance of the machine tool, expand the denotation of planing process. The machine adopts the interpolation methods in writing a particular program on curing chip, can machining some on the machining center and CNC milling machine is difficult to machining special-type surface of the irregular workpieces and formula surface, such as steel mills with mold surface, the blower impeller surface and etc.
- The machine has following advantages: CNC machine flexible control, high precision, large power AC servo motor, large copying rigidity, high efficiency, strong cutting force of hydraulic machine, adopts disc-type indexable planer tool,simple structure and low cost, floor-type worktable,easy to load large workpiece and craft equipment, easy to replace workpieces and etc. For some special surface processing , has hte advantages of machining center and CNC milling machine cannot be compared.
Technical Parameters
Specifications |
Units |
SMHK-700 |
SMHK-850 |
SMHK-900 |
Max. shaping length |
mm |
700 |
900 |
900 |
Max. range of the horizontal movement of the worktable |
mm |
600 |
600 |
600 |
Max. distance between the ram bottom and worktable |
mm |
350 |
450 |
450 |
Max. length of the vertical movement of worktable |
mm |
300 |
400 |
400 |
Dimensions of worktable(L*W) |
mm |
700*400 |
900*400 |
900*400 |
Vertical travel of tool carriage |
mm |
120 |
120 |
120 |
Max. cutting force of the ram |
KN |
15 |
15 |
15 |
Max. section of tool shank(W*H) |
mm |
22*30 |
22*30 |
22*30 |
Width of the T-slot for center positioning |
mm |
18 |
18 |
18 |
Max. weight of workpiece |
kg |
200 |
300 |
300 |
Main motor power |
kw |
4 |
4 |
4 |
Torque of transverse feeding servo motor |
N.m |
27 |
27 |
27 |
Torque of lifting servo motor of tool carriage |
N.m |
5 |
5 |
5 |
Net weight |
kg |
1800 |
2200 |
2200 |
Machine dimensions(L*W*H) |
mm |
2470*1350*1500 |
2670*1350*1600 |
2670*1350*1600 |
CNC system |
|
KND K100Ti |
KND K100Ti |
KND K100Ti |
Working Accuracy
Flatness of machined surface on tested workpiece |
mm |
0.025 |
0.025 |
0.025 |
Parallelism of machined surface on tested workpiece to base |
mm |
0.03 |
0.03 |
0.03 |
Parallelism of machined surface on the side to that on the other side on tested workpiece |
mm |
0.05 |
0.05 |
0.05 |
Verticality of machined side surface on the side of tested workpiece against base |
mm |
0.02 |
0.02 |
0.02 |
Surface roughness |
um |
Ra6.3 |
Ra6.3 |
Ra6.3 |
