CNC Hydraulic Slotter or High Precision Slotting Machine

Name: CNC Hydraulic Slotter or High Precision Slotting Machine
Brand: TIMAC
SKU: 140797892
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 20,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

C-BHK1250

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number C-BHK1250

Voltage 380V/50HZ

Power(W) 11kw(main motor)

Dimension(L*W*H) 5329*2869*5850mm

Weight 17800kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

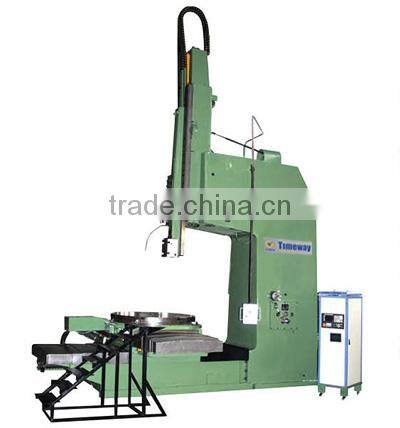

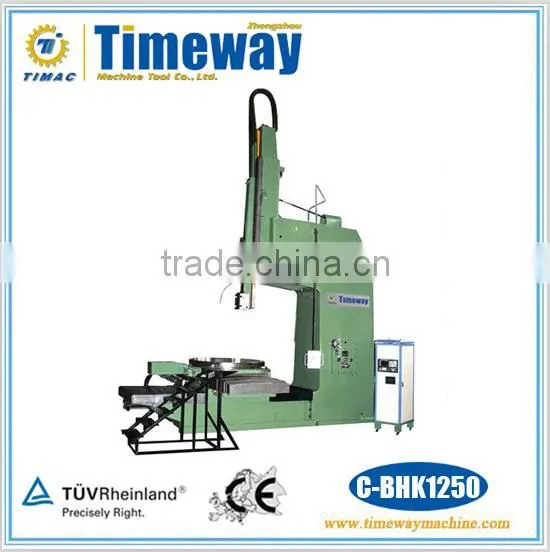

CNC Hydraulic Vertical Slotting Machine

C-BHK500 C-BHK630 C-BHK1000 C-BHK1250

Main Outlook

Product Description

Applications and Features

The series machine tool can be used for slotting flat surface, formed surface(including cambered surface) and keyways of all kinds of parts, and can slotting inclination in range 0deg. to 10deg. mould etc., it is suitable for single piece or small batch production.
The machine tool is CNC slotting machine with three CNC axis (longitudinal X-axis, transverse Z-axis and rotary C-axis), the three axis are controlled by servo motor driving high-precision ball screw. It can process multi surfaces on the machine after one time of clamping workpiece, such as various cambered surface, uniform and not uniform keyways. It can achieve longitudinal(X-axis) and transverse(Z-axis) linkage intermittent feeding.
The main cutting motion of the machine is hydraulic driven. Safety valve is provided for the hydraulic drive, to achieve overload protection. When overload use, overload work, thus protecting the safe production.
The main cutting motion of the machine can achieve stepless speed regulating.
Hydraulic automatic tool lifter is reliable, cutting tool is not easy to wear and tear, improve the service life of cutting tool. Hydraulic automatic hold-down mechanism can compress toolhead by oil cylinder, in order to avoid cutter relieving due to the overweight of tool shank, so improve roughness and precision of workpiece in the process of machining.
Inclination of ram can adjust in the range of 0deg. to 10deg.

Specifications List

Technical Parameter

Specifications	Units	C-BHK500	C-BHK630
Max. stroke length of ram	mm	500	630
Min. stroke length of ram	mm	125	125
Max. slotting length	mm	500	630
Distance of vertical ahjust of ram	mm	430	550
Extreme high speed for work stroke of ram	m/min	22	22
Extreme low speed for work stroke of ram	m/min	5	5
Speed ratio of work stroke and return stroke of ram		1:1.45	1:1.45
Speed adjust for work stroke		stepless	stepless
Max. slotting force	KN	19.6	19.6
Distance from tool holding surface to column front	mm	1032	1189
Distance from worktable surface to underside of slide rack	mm	620	760
Max. longitudinal travel of worktable	mm	1235	1155
Max. transverse travel of worktable	mm	900	1020
Diameter of worktable	mm	Φ900	Φ1000
Inclination of ram	deg.	0-10	0-10
X and Z axis positioning precision	mm	±0.015	±0.015
C-axis positioning precision	deg.	±0.015	±0.015
X and Z axis repositioning precision	mm	±0.015	±0.015
C-axis repositioning precision	deg.	±0.015	±0.015
Max. loading weight of worktable	kg	2000	2000
Width of T-slot	mm	22H8	22H8
Main motor power	kw	11	11
Main motor speed	rpm	960	960
Type of cooling pump motor		DB-12B 40W/380V	DB-2B 40W/380V
Net weight	kg	11000	12000
Machine dimensions(LWH)	mm	410721372548	406922893678
CNC system		KND K100-Ti	KND K100-Ti
Working Accuracy
Flatness of machined surface on tested workpiece	mm	0.025	0.025
Verticality of machined surface on tested workpiece	mm	0.025	0.025
Surface roughness on tested workpiece	um	Ra6.3	Ra6.3
Verticality of machined side surface on tested workpiece against base	mm	0.02	0.02

Specifications	Units	C-BHK1000	C-BHK1250
Max. stroke length of ram	mm	1000	1250
Min. stroke length of ram	mm	125	125
Max. slotting length	mm	1000	1250
Distance of vertical ahjust of ram	mm	1090	1090
Extreme high speed for work stroke of ram	m/min	17	17
Extreme low speed for work stroke of ram	m/min	5	5
Speed ratio of work stroke and return stroke of ram		1:1.3	1:1.3
Speed adjust for work stroke		stepless	stepless
Max. slotting force	KN	27	27
Distance from tool holding surface to column front	mm	1151	1600
Distance from worktable surface to underside of slide rack	mm	1110	1480
Max. longitudinal travel of worktable	mm	1335	1635
Max. transverse travel of worktable	mm	1120	1314
Diameter of worktable	mm	Φ1250	Φ1400
Inclination of ram	deg.	0-10	0-10
X and Z axis positioning precision	mm	±0.015	±0.015
C-axis positioning precision	deg.	±0.015	±0.015
X and Z axis repositioning precision	mm	±0.015	±0.015
C-axis repositioning precision	deg.	±0.015	±0.015
Max. loading weight of worktable	kg	4000	4000
Width of T-slot	mm	28H8	28H8
Main motor power	kw	11	11
Main motor speed	rpm	960	960
Type of cooling pump motor		DB-2B 40W/380V	DB-2B 40W/380V
Net weight	kg	15500	17800
Machine dimensions(LWH)	mm	501926794888	532928695850
CNC system		KND K100-Ti	KND K100-Ti
Working Accuracy
Flatness of machined surface on tested workpiece	mm	0.035	0.035
Verticality of machined surface on tested workpiece	mm	0.05	0.05
Surface roughness on tested workpiece	um	Ra6.3	Ra6.3
Verticality of machined side surface on tested workpiece against base	mm	0.45	0.45
