High Precision BQ5040 Automatic Slotting Machine

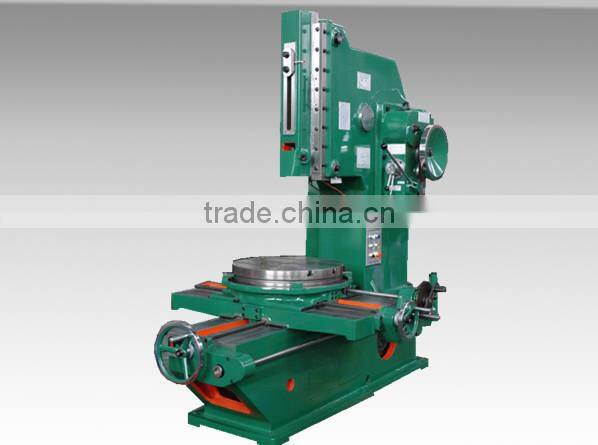

High Precision BQ5040 Automatic Slotting Machine photo-1
US$ 13,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
MACH
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Liaoning, China
Brand Name MACH
Model Number BQ5040
Power(W) 4KW
Dimension(L*W*H) 2290*1525*2285mm
Weight 500
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

 High Precision BQ5040 Automatic Slotting Machine


Product Description
Specification

Model

BQ5040

Max. slotting length

400mm

Max. dimensions of workpiece (L*H)

600*320mm

Max. weight of workpiece

500kg

Max. cutting force

7500N

No. of strokes per minutes

20.32.50.80.r.p.m

Vertical adjustment of ram

315mm

Inclination of ram

0-8°

Distance between tool holding surface and column front

600mm

Max. tool shank size (W*H)

25*40mm

Table diameter

630mm

Distance between table surface and low end of ram

690mm

Max. longitudinal travel of table

620mm

Max. cross travel of table

560mm

Range of table longitudinal and cross power feeds

0.08-1.21mm

Range of table power feeds

0.052-0.783

Power of rapid drive motor

4kw

Rotating speed of main drive motor

960r.p.m

Overall dimensions (L*W*H)

2290*1525*2285mm

Weight(approx)

3700kg

High Precision BQ5040 Automatic Slotting Machine

Our Services



Guarantee & After-selling Service

We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving   our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail FREE OF CHARGE.We will provide FULL MAINTENANCE & BACK-UP SERVICE for our clients after shipment. It's the basis of establishing long-term cooperation with our foreign clients.

Certificate

 CE certificate & ISO Certificate


Company Information
About our Company

Our factory is one of biggest professional manufactuer of producing Slotting Machines in China. Our  Slotting Machines are exported to many countries. Such as:  USA, Canada, Portugal, Brazil, Chile, South Africa, Egypt, Ghana, Indonesia, Malaysia, India, Russia, Belarus,etc.

....
