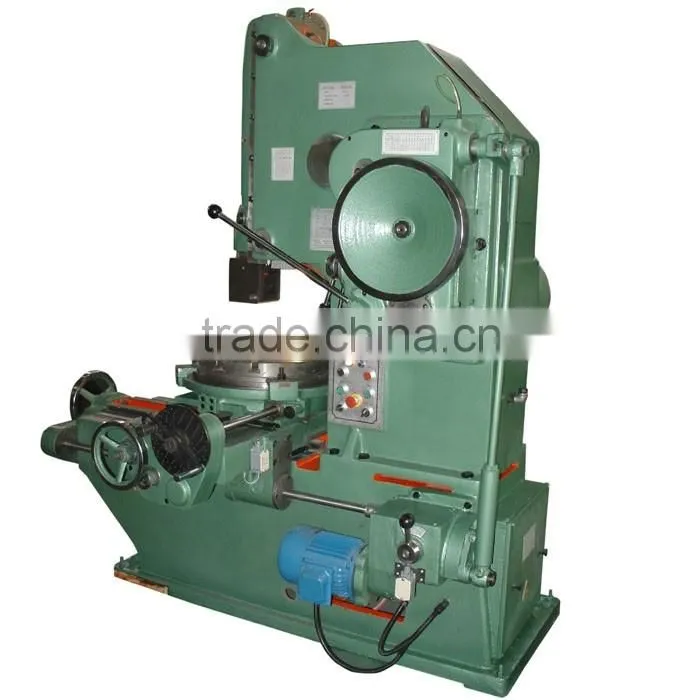

slotting machine with rotary worktable
- 1. This machine is used for slotting the flat and formed surface keyways, etc.
- 2. It is suitable for either single piece of small batch production
- 3. The main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain
- 4. The worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually
- 5. The feed is stopped automatically, when the worktable is in case of trouble
Specification:
Work range |
B5020 |
Max. slotting length |
200MM |
Max. dimension of work piece(l*h) |
485*200mm |
Max. weight of work piece |
400kg |
Max. cutting force |
5500N |
No. of ram strokes per minute |
32,50,80,125 |
vertical adjustment of ram |
230mm |
Inclination of ram |
0-8° |
Distance between tool bolding surface and column front |
485mm |
Max. tool shank size(w*h) |
25*40mm |
Table diameter |
500mm |
Distance between table surface and low end of ram |
320mm |
Max. longitudinal travel of table |
500mm |
Max. cross travel of table |
500mm |
Range of table longitudinal and cross power feeds |
0.08-1.21mm |
Range of table rotary power feeds |
0.052°-0.783deg |
Power of main drive motor |
3kw |
Rotating speed of main drive motor |
1430rpm |
Overall dimensions(L*W*H) |
1945*1325*1980mm |
Weight(approx) |
2400kg |
The production process :
Batch production:
Our product is done in the standard of normal workshop, large-scale production of high quality, ensure high efficiency and ensure product quality.
Customized services
We accept customized services around the world
Afer-sale services
1.Technical support online service provided.
2.Technical files service provided.
3.Spare parts replacement and repair service provided.
4.Questions will be replied within 24 hours
Every month, we will export almost 200 sets heavy duty vertical slotting machine in the worldwide. We think we can give you the most comprehensive support not only service but also techniques.Because we are a know-how machinery expert.
