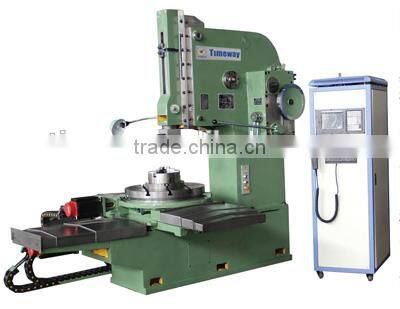

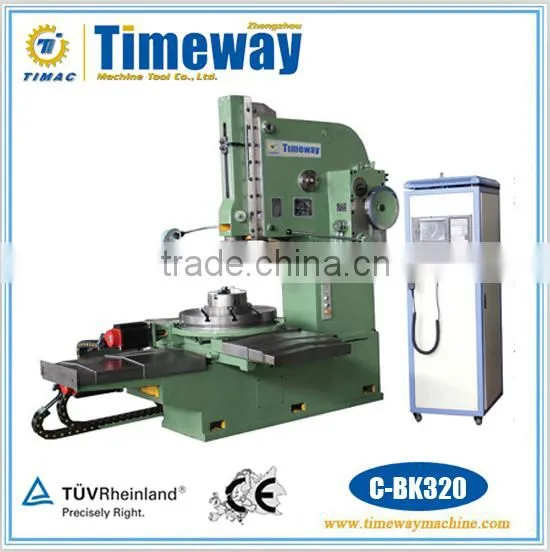

C-BK320 High-Degree Automatic CNC Vertical Planing Machine

Name: C-BK320 High-Degree Automatic CNC Vertical Planing Machine
Brand: TIMAC
SKU: 140797890
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

C-BK320

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number C-BK320

Voltage 380V/50HZ

Power(W) 3kw(main motor)

Dimension(L*W*H) 2000*1500*2500mm

Weight 2700kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

CNC Vertical Slotting Machine (Vertical Planing Machine)

C-BK320

Main Outlook

Summary

Machine Summary

The CNC slotting machine is a new generation of slotting machine that it is researched and developped on the basis of the mature experience of producing ordinary slotting machine, slotting machine is a higher degree automation.
It is suitable for various kinds of small and medium-sized keyways, through programming to realize the automatic processing of the circular array keyways, greatly improving the working efficiency of the machine tool.

Product Description

Applications and Features

The machine tool is suitable for slotting the keyways of a various of medium and small-sized parts.
The main cutting motion of the machine is linear motion being converted from circular motion of gears by linkblock mechanism, adopts four-speed gear shift, with smooth transmission, short over range and less consume of power, the machine is easy to start and stop.
The machine adopts KND CNC system and AC feeding servo drive unit, reliable performance.
The worktable can achieve two CNC axis(longitudinal axis and rotary axis) or three CNC axis(longitudinal axis, transverse axis and rotary axis), adopts dovetail guide, to guarantee enough rigidity and good accuracy stable. CNC control axis is controlled ball screw that it connects directly AC feeding servo motor, meanwhile indirect measurement using encoder feedback.

Specifications List

Technical Parameter

Specifications	Units	C-BK200	C-BK320	C-BK400
Max. slotting length	mm	200	320	400
Max. longitudinal travel of worktable(X-axis)	mm	440	560	560
Max. transverse travel of worktable(Z-axis)	mm	420	540	540
Max. rotary angle of worktable(Y-axis)	deg.	360	360	360
Max. slotting force	KN	5	8	8
Distance from tool holding surface to column front	mm	480	600	600
Diameter of worktable	mm	Φ460	Φ630	Φ630
Inclination of ram	deg.	0-8	0-8	0-8
Adjusting vertical distance of slide block	mm	215	370	420
Distance from worktable surface to underside of slide rack	mm	320	470	620
Max. loading weight on worktable	kg	500	500	500
T-slot width in the center of worktable	mm	18H8	18H8	18H8
Power supply of main electric motor	kw	3	3	3
Speed of main motor	rpm	1420	960	960
Net weight	kg	2400	2700	2700
Machine dimensions	mm	200015002400	200015002500	210015002600
CNC system		KND K2000-T	KND K2000-T	KND K2000-T
Working Accuracy
Flatness of machined surface on tested workpiece	mm	0.015	0.015	0.015
Vertical of machined surface on tested workpiece	mm	0.025	0.025	0.025
Surface roughness on tested workpiece	um	Ra6.3	Ra6.3	Ra6.3
Verticality of machined side surface on tested workpiece against base	mm	0.02	0.02	0.02
