Heavy-Duty Hydraulic Vertical Slotting Machine For Metal

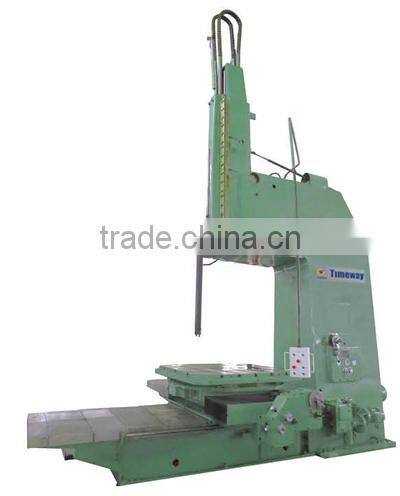

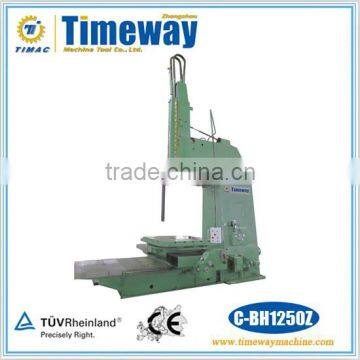

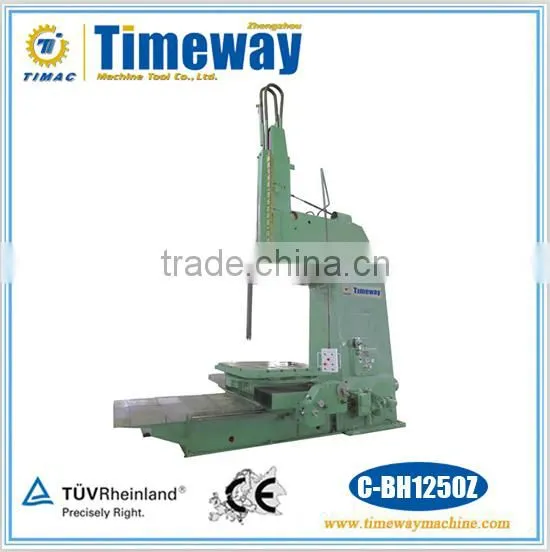

Heavy Duty Hydraulic Vertical Slotting Machine

C-BH1000Z    C-BH1250Z

Applications and Features

• The series machine is used for slotting flat surface, formed surface(cambered surface) and keyways of a various of parts, and slotting inclination in the range 0deg. to 10deg. mould etc. suitable for single piece or small batch production.
• The worktable has three different directions feed(longitudinal, transverse and rotary direction), so can process continously multi surfaces on the machine after a clamping of workpiece.
• The series slotting machine is designed for slotting heavy parts, can achieve separately X, Y and Z-axis (longitudinal, transverse and rotary) three different directions feeding, to process cambered surface, uniform and not uniform keyways.
• X and Y axis adopt mute-type and precision level linear guide, higher rated load, to achieve high-precision straight-line motion under the condition of high-load.
• Improve the bearing capacity of the machine tool and the machine can withstand the impact of the clearance cutting and strong cutting.
• The main cutting motion of the machine is hydraulic driven. Safety valve is provided for the hydraulic drive, to achieve overload protection. When overload use, overload work, thus protecting the safe production.
• Hydraulic automatic tool lifter is reliable, cutting tool is not easy to wear and tear, improve the service life of cutting tool. Hydraulic automatic hold-down mechanism can compress toolhead by oil cylinder, in order to avoid cutter relieving due to the overweight of tool shank, so improve roughness and precision of workpiece in the process of machining.
• For the slotting machine, inclination of ram can adjust in the range of 0deg to 10deg.

Technical Parameter
