Vertical Slotting Machine

Name: Vertical Slotting Machine
Brand: TIMAC
SKU: 140797880
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 5,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

C-B320

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number C-B320

Voltage 380V/50HZ

Power(W) 3kw(main motor)

Dimension(L*W*H) 1930*1365*2270mm

Weight 2500kg

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Vertical Slotting Machine For Metal

C-B200 C-B320 C-B400

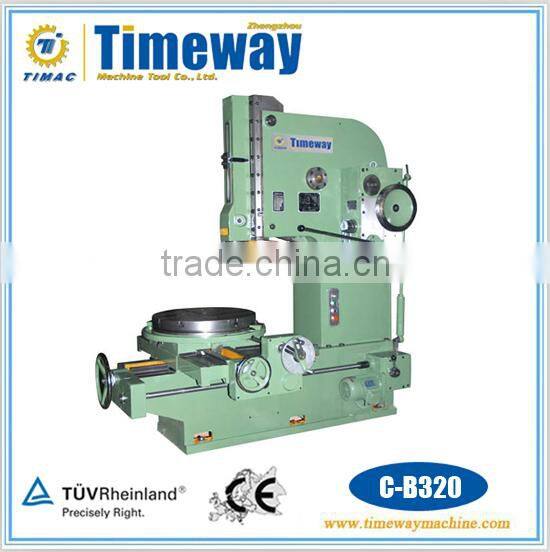

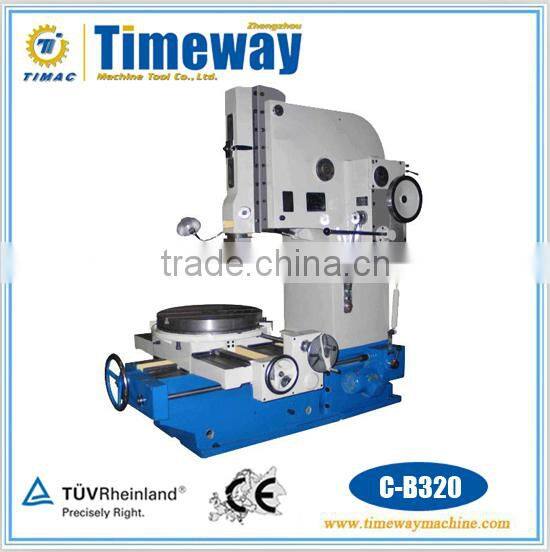

Main Outlook

Product Description

Applictions and Features

Being designed for cutting various plane, formed surface and key way of workpiece, the machine is suitable for single piece or small batch production.
The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.
An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. And there is also a rapid motion device for vertical, horizontal and rotary motion of the worktable which is equipped with an indexing gear for rotary motion.

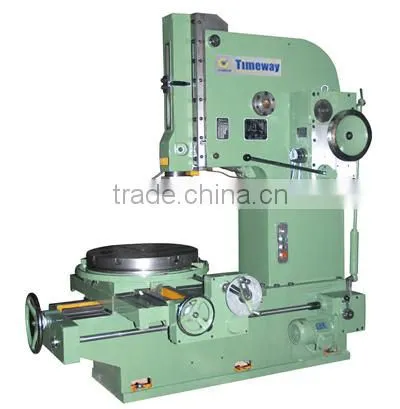

Detailed Images

Specifications List

Technical Parameter

Specifications	Units	C-B200	C-B320	C-B400
Max. slotting length	mm	200	320	400
Number of ram reciprocation per minute	time/min.	32,50,80,125	20,32,50,80	20,32,50,80
Inclination of ram	deg.	0-8	0-8	0-8
Diameter of worktable	mm	Φ460	Φ630	Φ630
Adjusting vertical distance of slide block	mm	215	370	420
Distance from tool holding surface to column front	mm	480	600	600
Distance from worktable surface to underside of slide rack	mm	320	470	620
Max. longitudinal travel of worktable	mm	440	560	560
Max. transverse travel of worktable	mm	420	540	540
Max. rotary angle of worktable	deg.	360	360	360
Power feed range of worktable in longitudinal and transverse direction	mm	0.054-1.24	0.054-1.24	0.054-1.24
Rotary feed range of worktable	deg.	0.035-0.805	0.035-0.805	0.035-0.805
Max. size of slotting tool(L*H)	mm	25*40	25*40	25*40
Max. slotting force	KN	5	8	8
Max. loading weight on worktable	kg	400	500	500
T-slot width in the center of worktable	mm	18H8	18H8	18H8
Power supply of main electric motor	Kw	3	3	3
Speed of main motor	rpm	1420	960	960
Power of motor for rapid traverse	Kw	0.75	0.75	0.75
Speed of motor for rapid traverse	rpm	1390	1390	1390
Net weight	kg	2200	2500	2900
Machine dimensions(LWH)	mm	171712211885	193013652270	197013652310

Working Accuracy

Flatness of machined surface on tested workpiece	mm	0.015	0.015	0.015
Verticality of machined surface on tested workpiece	mm	0.025	0.025	0.025
Surface roughness on tested workpiece	um	Ra6.3	Ra6.3	Ra6.3
Verticality of machined side surface on tested workpiece against base	mm	0.02	0.02	0.02
