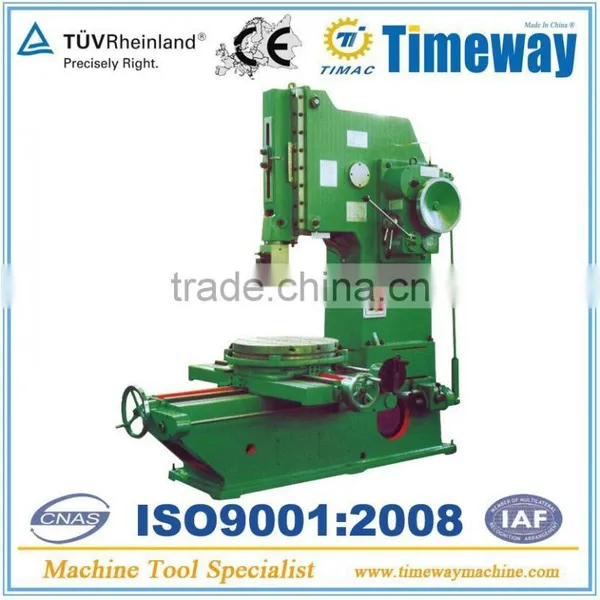

Slotting Machine / Vertical Planing Machine
Features:
1. This machine is used process planes, shape surfaces, key seating, etc, and it is suitable for the single-piece or small-batch production workshop.
2. The main transmission mechanism is to transmit the throw-over motion of the rocker arm into the to-and-fro motion of the ram the operating plant form can move vertically and horizontally and revolve it is able to achieve automatic feed and hand operating feed Also it can move fast in case of breakdown, the platform will automatically stop feeding and achieve limit safety.
3. When the machine is started, stop using electromagnetic clutch so as to achieve concentration operation of the machine.
4. Indexing mechanism is used for the graduation of the throw-over motion of the operating platform parts are processed according to the desired graduation.
5. This machine is carefully designed and it is characteristic of standardization, generalization, serialization, high degree automation, also it is of reasonable distribution, compact structure, well-balanced proportion, good outer looks and convenient maintenance.
6. The lubrication of the machine is brought by the oil pump, and lubrication oil is transmitted to various points by the oil-transmitting rubes with convenient adjustment.
7. The electric equipment of the machine tool is fixed in the bed at the back part of the lower bed it is safe and reliable because there are concentrated push buttons in the upper bed.
| Specification | Unit | B-400Q |
| Max. slotting length | mm | 400 |
| Max. dimension of workpiece(LxH) | mm | 600x320 |
| Max. weight of workpiece | kg | 500 |
| Max. cutting force | N | 7500 |
| No. of ram strokes per minute | r.p.m | 20,32,50,80 |
| Vertical adjustment of ram | mm | 315 |
| Inclination of ram | 0-8deg | |
| Distance between tool bolding surface and column front | mm | 600 |
| Table diameter | mm | 630 |
| Distance between table surface and low end of ram | mm | 690 |
| Max. longitudinal travel of table | mm | 620 |
| Max. cross travel of table | mm | 560 |
| Range of table longitudinal and cross power feeds | mm | 0.08-1.21 |
| Range of table rotary power feeds | 0.052-0.783deg | |
| Power Main drive motor | kw | 4 |
| Rotating speed of main drive motor | r.p.m | 960 |
| Rotating speed of rapid drive motor | r.p.m | 910 |
| Overall dimensions(LxWxH) | mm | 2290x1525x2485 |
| Weight(approx.) | kg | 3700 |
