Mechanical Vertical Slotter

FOB Price

USD $5,000 - $15,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	TIMAC	Model Number:	B-320
Voltage:	380V/50HZ	Power(W):	4kw(main motor)	Dimension(LWH):	226114952245mm
Weight:	3000kg	Certification:	CE ISO9001	Warranty:	One Year
After-sales Service Provided:	Engineers available to service machinery overseas

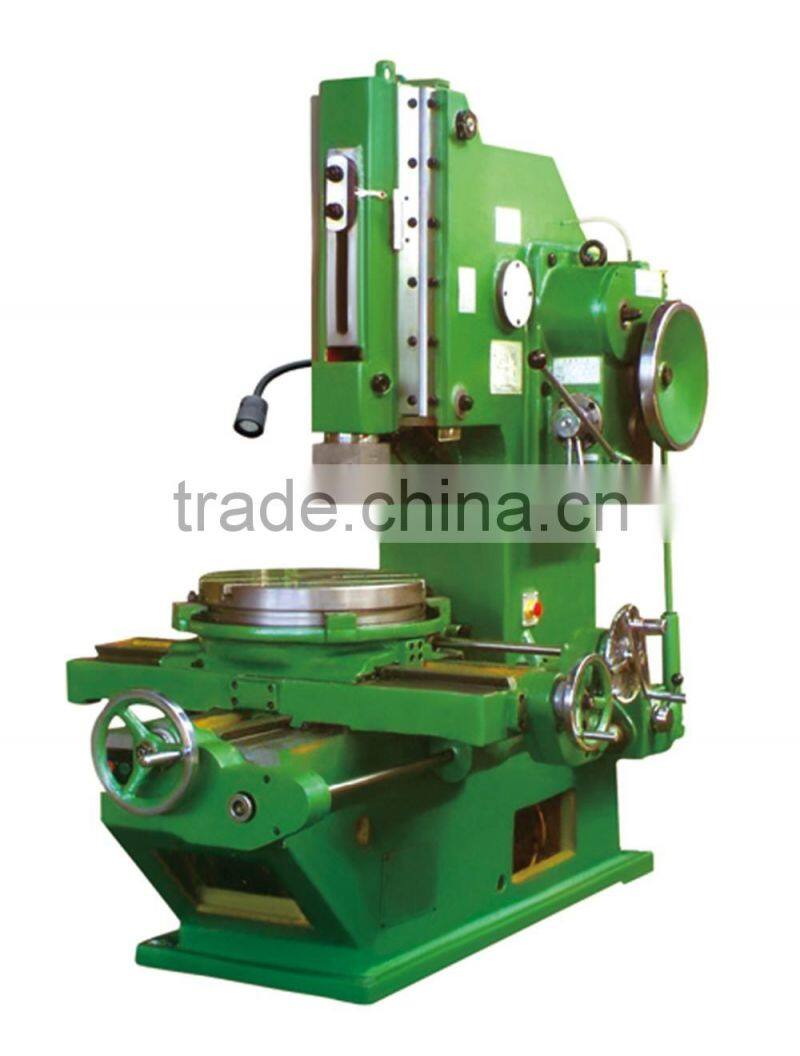

Vertical Slotting Machine For Metal

B-320 B-200

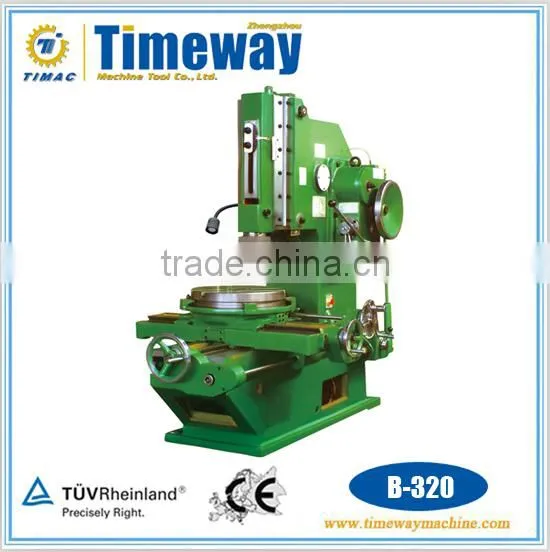

Main Outlook

Product Description

Applictions and Features

Being designed for cutting various plane, formed surface and key way of workpiece, the machine is suitable for single piece or small batch production.
The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.
An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table. And there is also a rapid motion device for vertical, horizontal and rotary motion of the worktable which is equipped with an indexing gear for rotary motion.

Specifications List

Technical Parameter

Specification	Unit	B-320	B-200
Ram storke	mm	340	220
Maximum length of the ram slotting	mm	320	200
Ram movement times	times min	20.32.50.80	32.50.80.125
Tilt ram	°	0-8	0-8
Table diameter	mm	630	500
Vertical adjustment of ram distance	mm	315	230
Head bearing surface to the bed from the front walls	mm	600	485
Between the work surface to the lower carriage distance	mm	490	320
Table maximum longitudinal movement distance	mm	630	500
Table maximum lateral movement distance	mm	560	500
Maximum swivel table	°	360	360
Table aspect motorized feed range	mm	0.08-1.21	0.08-1.21
Table rotation feed range	mm	0.052-0.783	0.052-0.783
Motor power	kw	4	3
Motor speed(calculated value)	r/min	960	1430
Machine weight(about)	kg	3000	2200
Overall dimensions(LWH)	mm	2261x1495x2245	1916x1305x1995
