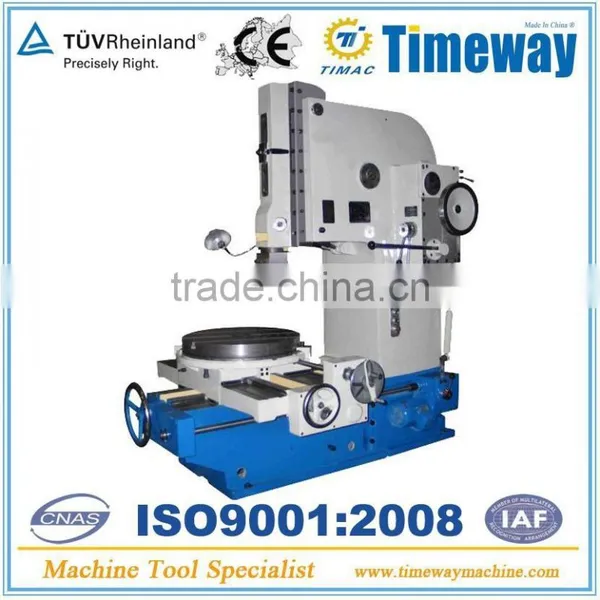

Slotting Machine / Slotter



Features:

1. Being designed for slotting various plane, formed surface ( include cambered surface) and key way of workpiece, the machine is suitable for single piece or small batch production.

2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achieved by a crank connecting link.

3. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table.

4. It has a rapid motion device for vertical, horizontal and rotary motion of the table which equipped with an indexing gear for rotary motion.



Specifications Unit B-200E B-320E B-400E
Max. slotting length mm 200 320 400
Number of ram reciprocation per minute mm 32, 50, 80, 125 20, 32, 50, 80 20, 32, 50, 80
Inclination of ram mm 0-8 0-8 0-8
Diameter of worktable mm φ460 φ630 φ630
Adjusting vertical distance of slide block m/min 200 315 315
Distance from tool holding surface to column front m/min 480 600 600
Distance from worktable surface to underside of slide rack   320 455 615
Max. longitudinal travel of worktable mm 420 560 560
Max. transverse travel of worktable mm 420 535 535
Max. rotary angle of worktable mm 360 360 360
Feed range of worktable in longitudinal & transverse direction mm 0.054-1.24 0.054-1.24 0.054-1.24
Rotary feed range of worktable ° 0.035-0.85 0.035-0.805 0.035-0.805
Max. size of slotting tool (LxW) mm 25x40 25x40 25x40
Max. slotting force   5 8 8
Max. loading weight on worktable kg 400 500 500
T-slot width in the center of worktable mm 18H8 18H8 18H8
Power supply of main electric motor kw 3 3 3
Speed of main motor   1420 960 960
Power of motor for rapid transverse kw 0.75 0.75 0.75
Speed of motor for rapid traverse   1390 1390 1390
Net weight (approx) kg 2200 2500 2900
Dimensions of machine tool (LxWxH) mm 1717x1221x1885 1930x1365x2270 1970x1365x2310
Flatness of machined surface mm 0.015 0.015 0.015
Verticality of machined surface mm 0.025 0.025 0.025
Surface roughness   6.3 6.3 6.3
Verticality of machined side surface against base mm 0.02 0.02 0.02
