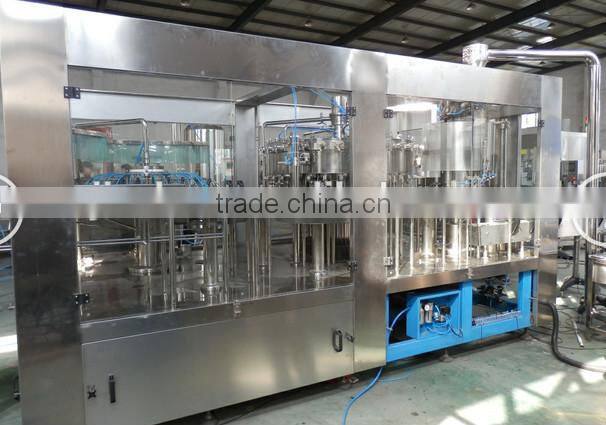

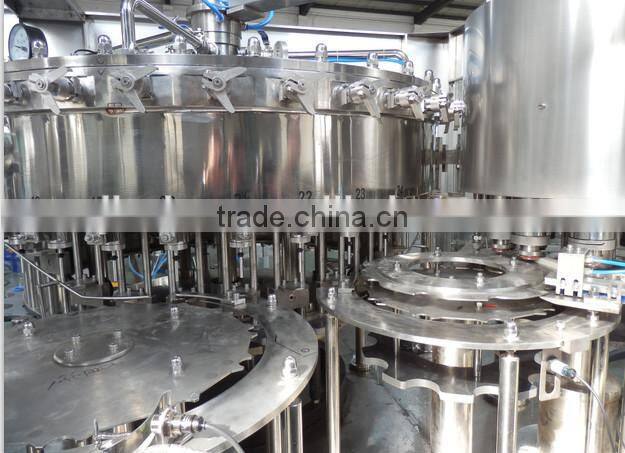

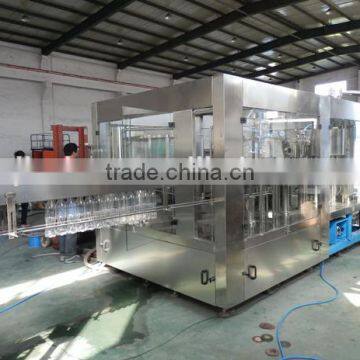

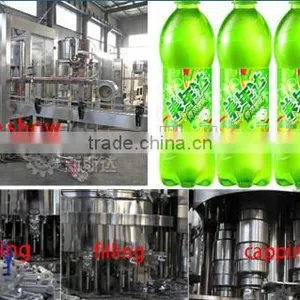

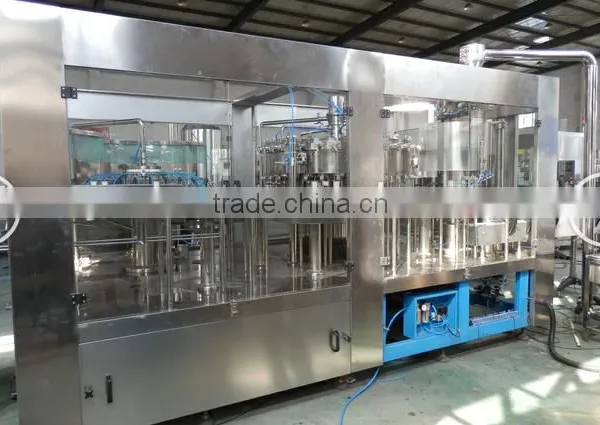

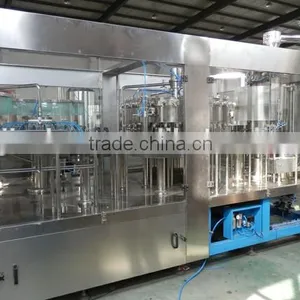

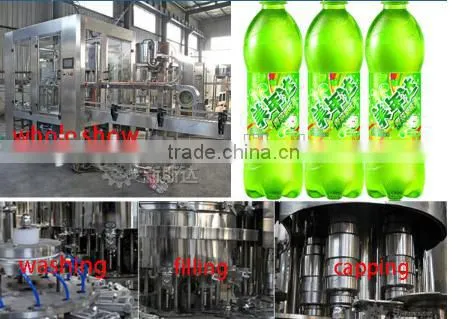

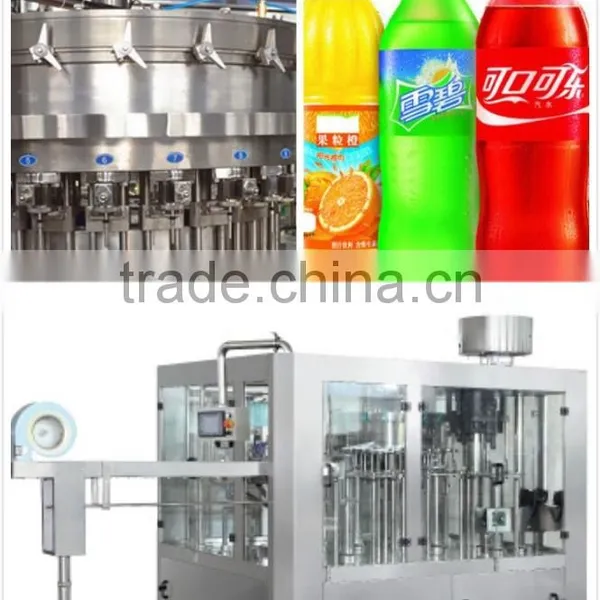

Soft drinks andCarbonated drinks filling machine line
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The cylinder drive the valve the movements is accurate and reliable. High-throughput, high-precision filling valve, filling fast and accurate. Equipped the CIP loop and control procedures, the equipment is easy to clean.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Using the programmable controller as control centers; using pressure transmitter, electromagnetic measurement to maintain the balance of liquid surface so as to ensure the stability of liquid.
7. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
8. The machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
Main technical parameters:
| Technical Data | ||||
| Model | DCGF16-12-6 |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-10 |
| The number of Washing, Filling, Capping | 16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
| Applicable bottle specifications (mm) | Φ=50-100 H=170 330-1500ML |
Φ50-Φ110 |
||
| Producing capacity: The number of bottle(350ml)/hour |
2000-3000 |
3000-4000 |
6000-8000 |
8000-10000 |
| Filling temperature | 0-5 centi-degree |
|||
| Filling type | Press filling type |
|||
| Spraying pressure (MPa) | 0.2-0.25 |
0.2-0.25 |
||
| Filling pressure(MPa) | 0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
|
| Motor power (kw) | 1.5+0.12+0.45 |
2.2+0.55+0.45 |
3+0.37+0.55 |
7.5 |
| Overall dimension (mm) (L×W×H) | 2300×1600×2500 |
2460×1860×2650 |
3100×2100×2650 |
4350×2880×3200 |
| Weight(kg) | 2500 |
3650 |
4800 |
6000 |
