PET Bottle Carbonated 3-in-1 Filling Machine

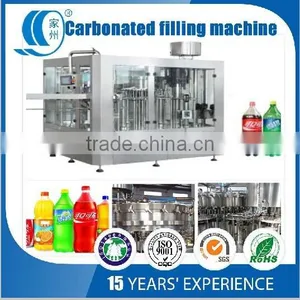

PET Bottle Carbonated 3-in-1 Filling Machine thumbnail-1
PET Bottle Carbonated 3-in-1 Filling Machine thumbnail-2

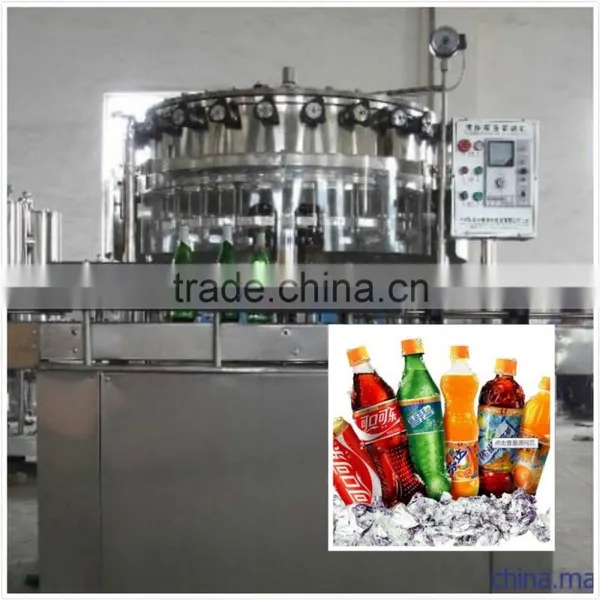

PET Bottle Carbonated 3-in-1 Filling Machine photo-1
PET Bottle Carbonated 3-in-1 Filling Machine photo-2
US$ 29,000 - 35,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated drink
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Carbonated drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V
Power 5.88KW
Place of Origin Jiangxi, China
Brand Name Jiazhou
Model Number CGFR
Dimension(L*W*H) 3800*1800*2200mm
Weight 1t
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description PET bottle carbonated 3-in-1 filling machine

Production Functions

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Product display PET bottle carbonated 3-in-1 filling machine

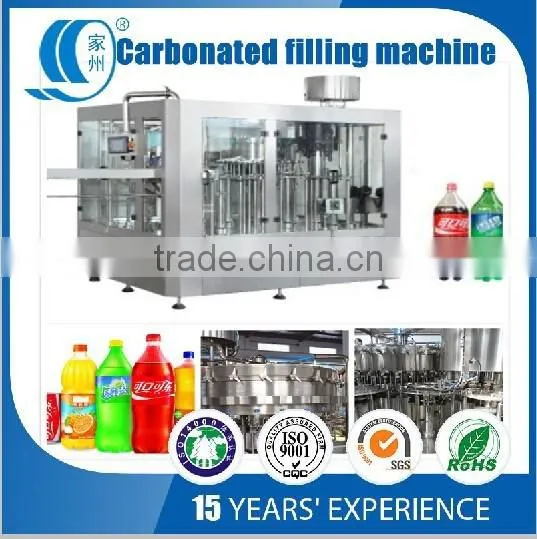

Whole Machine of carbonated filling machine



 PET bottle carbonated 3-in-1 filling machine



PET bottle carbonated 3-in-1 filling machine



PET bottle carbonated 3-in-1 filling machine





Product Parameters PET bottle carbonated 3-in-1 filling machine
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
PET bottle carbonated 3-in-1 filling machine
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
PET bottle carbonated 3-in-1 filling machine
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
PET bottle carbonated 3-in-1 filling machine
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
PET bottle carbonated 3-in-1 filling machine
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
PET bottle carbonated 3-in-1 filling machine
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
PET bottle carbonated 3-in-1 filling machine
