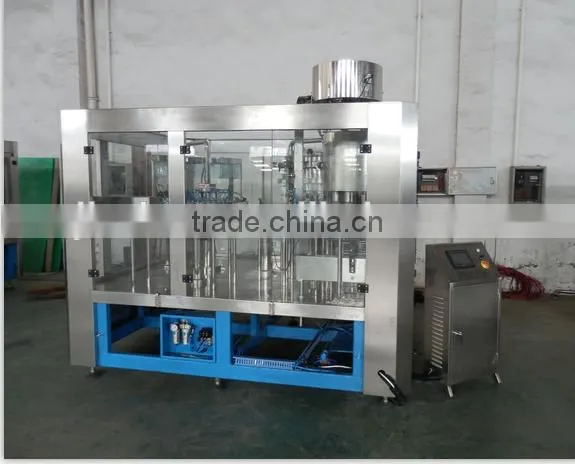

2014 Zhangjiagang Jiazhou PET bottle carbonated filling machine/csd drink filling machine
This machine is designed for carbonated drinks bottle rinsing, filling and capping.
It integrates rinsing, filling and capping in one unit, which is much economical.
It can be controlled by PLC controller and touch screen shows the capacity per hour and speed.
Carbonated Drink Filling Plant’s Technical Parameter
Model |
DGCF16126 |
DGCF18186 |
DGCF24248 |
DGCF323210 |
Heads of washing,filling, sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
Production capacity(b/h) |
2000-4000 |
4000-6000 |
6000-8000 |
8000-12000 |
Suitable bottle diameter |
Φ=40-80mm, H=130-280mm |
Φ=50-100mm, H=150-320mm |
Φ=50-100mm, H=150-320mm |
Φ=50-100mm, H=150-320mm |
Filling pressure |
< 0.4MPa |
|||
Filling temperature |
0-5°C |
0-5°C |
0-5°C |
0-5°C |
Filling type |
Balance pressure filler |
|||
Motor power |
5.03kw |
5.03kw |
6.57kw |
8.07kw |
Stainless steel |
SS304 |
SS304 |
SS304 |
SS304 |
Electric voltage |
380V50Hz |
380V50Hz |
380V50Hz |
380V50Hz |
PLC |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Frequency converters |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Touch screen |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Circuit contactor |
Siemens |
Siemens |
Siemens |
Siemens |
overall dimension |
2100*1500*2200 |
2450*1800*2200 |
2750*2180*2200 |
3600*2200*2600 |
Weight |
2000kg |
3000kg |
4000kg |
5000kg |
CSD Drink Filling Machine's Rinsing

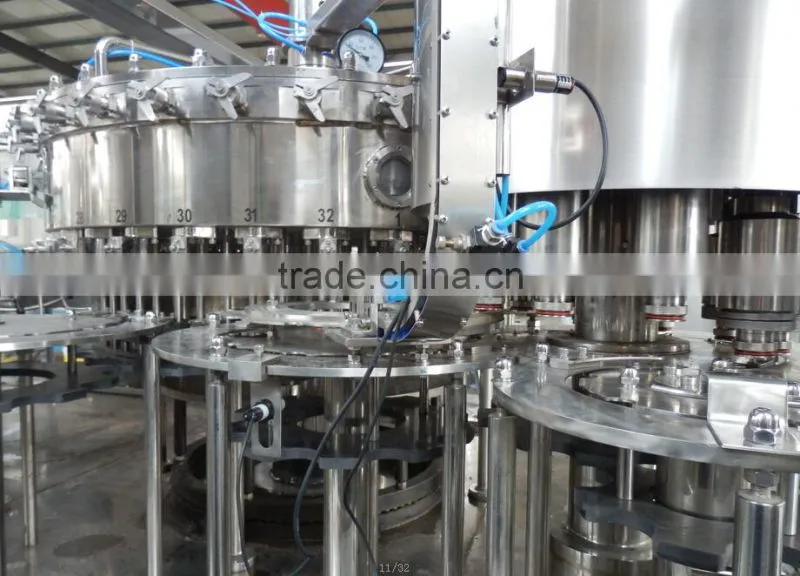

CSD Drink Filling Machine's Filling

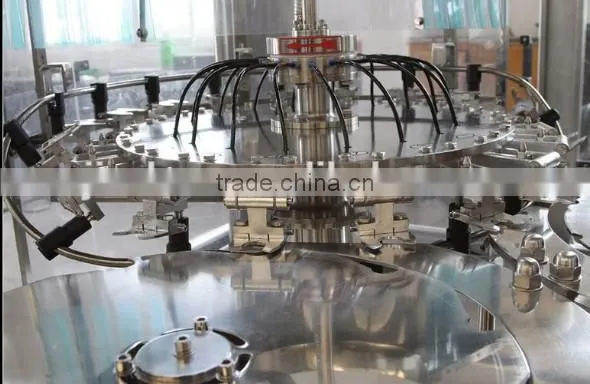

CSD Drink Filling Machine's Capping

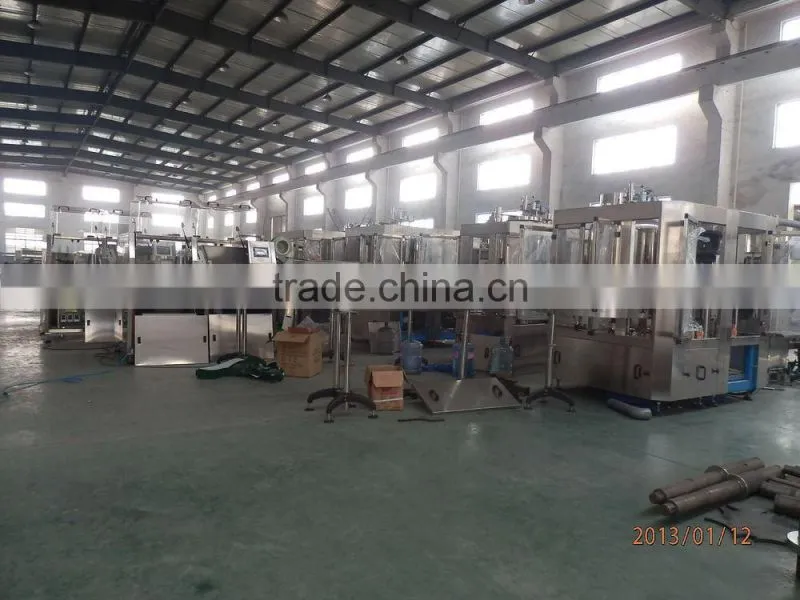

factory
