Small Capacity Energy Drink Filling Equipment Price

Small Capacity Energy Drink Filling Equipment Price thumbnail-1
Small Capacity Energy Drink Filling Equipment Price thumbnail-2
Small Capacity Energy Drink Filling Equipment Price thumbnail-3
Small Capacity Energy Drink Filling Equipment Price thumbnail-4
Small Capacity Energy Drink Filling Equipment Price photo-1
Small Capacity Energy Drink Filling Equipment Price photo-2
Small Capacity Energy Drink Filling Equipment Price photo-3
Small Capacity Energy Drink Filling Equipment Price photo-4
US$ 10,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated Drink
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI FOR energy drink filling equipment
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Carbonated Drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DCGF
Dimension(L*W*H) 2500*1750*2600mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Small capacity energy drink filling equipment price

• Measurement units can be adjustable pneumatic-driven measuring cup. Simply through the synchronization of data is set up a small adjustment;

 Servo-panel with 20 product is available at the data, when the product changes, by entering the product ID you can easily change the length of the bag;



• According to team with an integrated device, with carton packing machine, horizontal packing machine, packing machine, etc. connected to the bag;



• Reduce the mechanical height, so that the operational performance to improve a grade;



• High-speed 25-50bags/min/lane



• Film sending equipment with automatic error-correcting system and stable bag-making itermittent  sealing and secure sealing with beautiful shape ;



• Good qualities in electricity-control system by PLC controlling and Mitsubishi servicing system regulated, touchable man-machine interface, and temperature regulating system ;



• Air pump's components are all used the product of import and top quality;



• Easy to operate and repair, Error displaying and automatic Stopping;

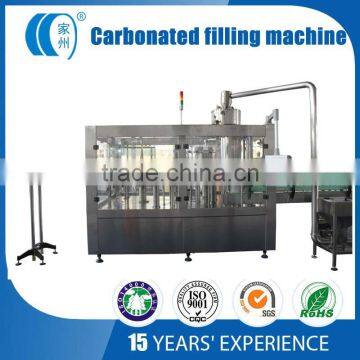

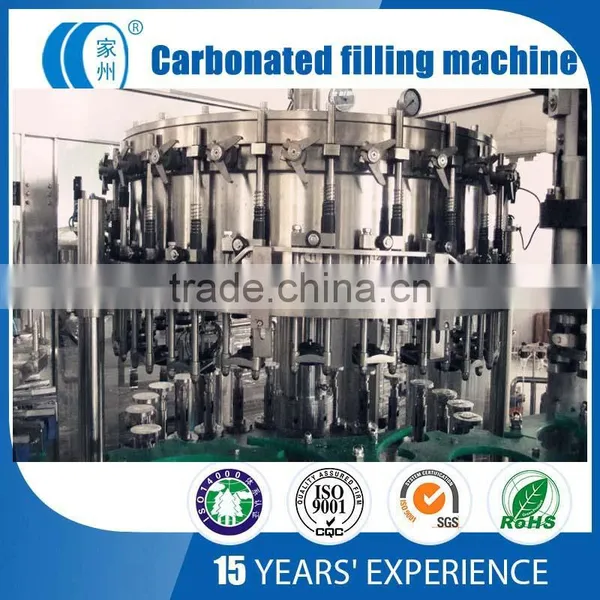

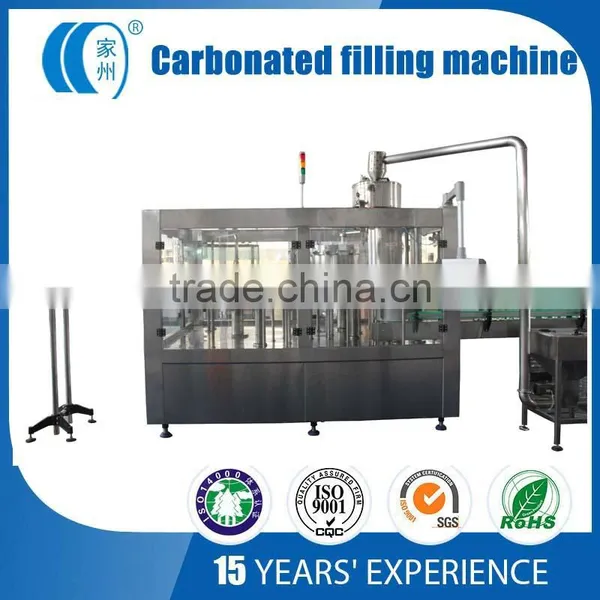

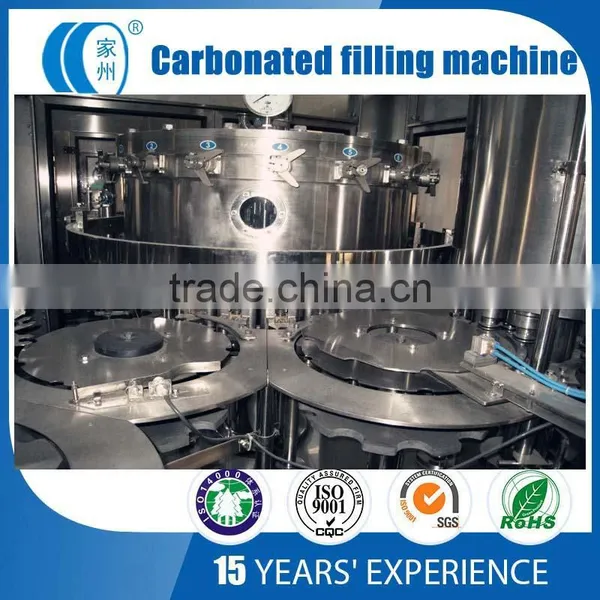

Product display Small capacity energy drink filling equipment price

Small capacity energy drink filling equipment price



Small capacity energy drink filling equipment price



Small capacity energy drink filling equipment price

Product Parameters Small capacity energy drink filling equipment price
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
Small capacity energy drink filling equipment price
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Small capacity energy drink filling equipment price

O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Small capacity energy drink filling equipment price

P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Small capacity energy drink filling equipment price
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Small capacity energy drink filling equipment price
