Best Price Soft Beverage Filling Plant

Best Price Soft Beverage Filling Plant photo-1

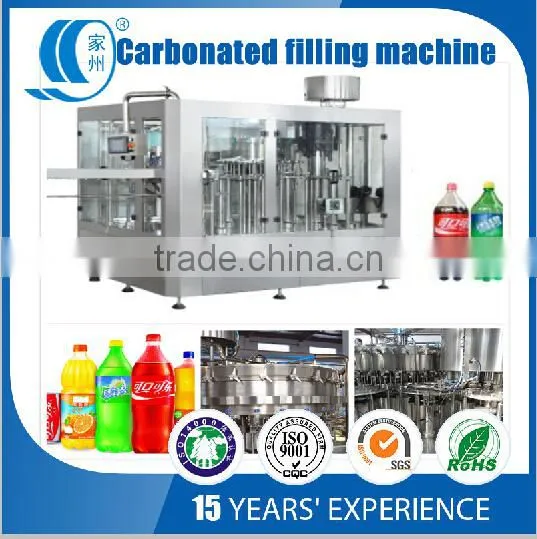

Best Price Soft Beverage Filling Plant photo-2

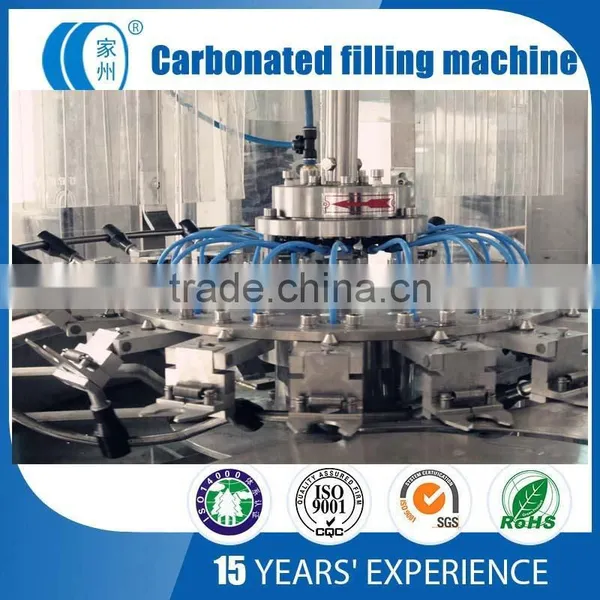

Best Price Soft Beverage Filling Plant photo-3

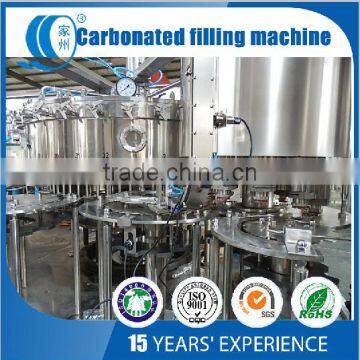

Best Price Soft Beverage Filling Plant photo-4

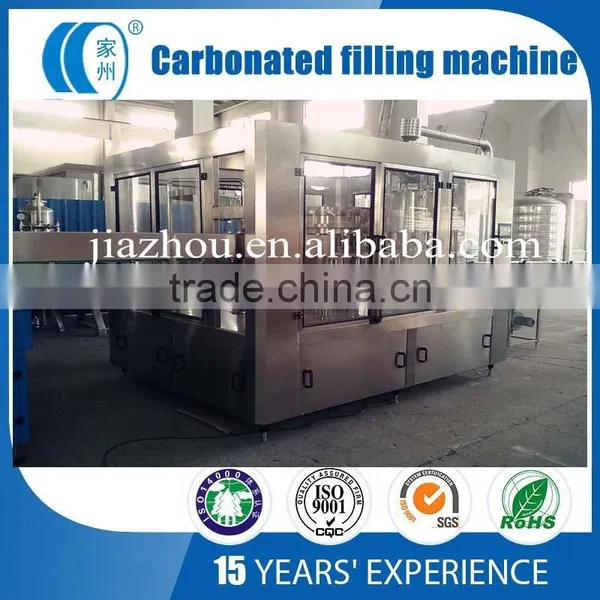

Best Price Soft Beverage Filling Plant photo-5
US$ 10,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Commodity
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for soft beverage filling equipment
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Commodity
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2LW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DCGF
Dimension(L*W*H) 2300*1600*2500mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Best price soft beverage filling plant
(1)This bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
(2)It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 20000BPH to 28000BPH.
(3)It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4)Adopting suspensory transmission gear can easily upkeep and be repaired.
(5)The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6)It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
Product display Best price soft beverage filling plant

Best price soft beverage filling plant



Best price soft beverage filling plant

Product Parameters Best price soft beverage filling plant
Model DCGF
18186
DCGF
24248
DCGF
323212
DCGF
404015
DCGF
505018
DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300
2800×2100
×2300
4200×2300
×2300
5000×2800
×2400
5900×3100
×2400
6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
Best price soft beverage filling plant
