Help CenterBottled Carbonated Drink Filling Plant
Related Products
-
Glass Bottle Filling Machine/machinery/line/plant in ZhangjiagangUS$ 10,000 - 50,000MOQ: 1 Unit -
Filler Capper 2 in 1 for Carbonated Beverage Filling MachineNegotiableMOQ: 1 Unit
-
BCGF1818-6 Model 3 in 1 Glass Bottle Carbonated Filling Machine PriceNegotiableMOQ: 1 Set
-
Jiazhou PET Bottle Carbonated Filling Machine/csd Drink Filling MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
High Quality Canned Drink Filling Machine/ EquipmentUS$ 15,000 - 25,000MOQ: 1 Unit

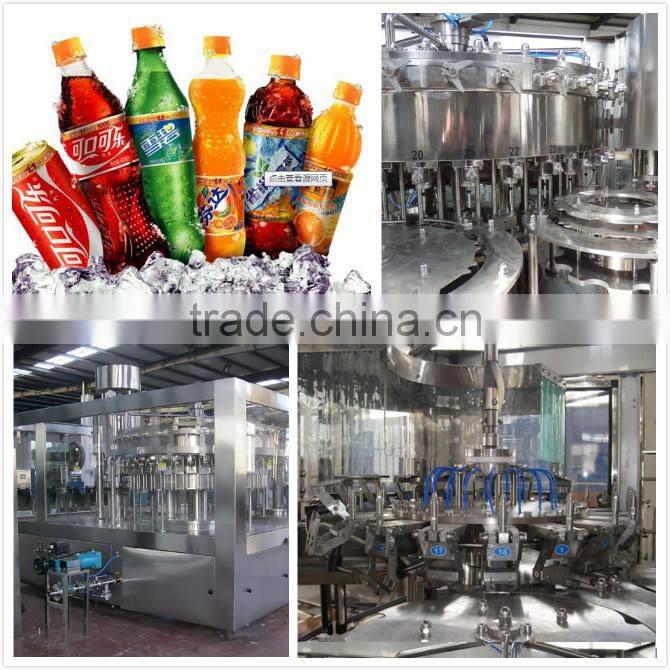

Automatic Rinsing/Filling /Capping Carbonated Drink Filling Machine combines rinsing bottles, filling bottles and capping bottles together with PLC control. It is mainly used for plastic bottles with carbonated beverages and non-carbonated beverages.
Characteristic of machine:
All parts contacting with beverages adopt top grade stainless steels whose surfaces are polished till smooth for easy rinsing. The sealing materials are EPDM rubber.
Adopt PLC as center control, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, keep balance of filling pressure to insure stable liquid level.
Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.
Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably.
Features:
1. Air conveyor connected with bottle-in starwheel. Bottles neck holding transferred.
2. Clamp transferring technology varied bottle shapes.
3. With little abrasion, stable transferring, easy to change bottles.
4. With ring type pressure bearing hydraulic cylinder.
5. With high filling speed and exact fluid level.
6. Excellent stainless steel or food level plastic to liquid. Electric system is of international brand and achieves national food sanitary standard.
7. The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.
| Model: | CGF18-18-6 | CGF24-24-8 | CGF32-32-12 | CGF40-40-12 | |||
| Capacity: 500ml | 4000-4500 | 6000-7000 | 8000-10000 | 12000-14000 | |||
| Bottle shape: | Roud or square | ||||||
| PET bottle: (mm) | (Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm | ||||||
| cap: | PE srew cap | ||||||
| filling precision: | ≤ ± 5mm | ||||||
| filling pressure: (Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | |||
| rinsing pressure: (Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | |||
| filling volume: (L) | 3.5 | 4 | 6 | 8 | |||
| overall size: (mm) | 2450*1800 *2350 |
2780*2200 *2350 |
3600*2650 *2350 |
3800*2950 *2400 |
|||
| weight: (kg) | 3500 | 4500 | 5500 | 6500 | |||
