High Quality Best Carbonated Making Machine Price

High Quality Best Carbonated Making Machine Price thumbnail-1
High Quality Best Carbonated Making Machine Price thumbnail-2
High Quality Best Carbonated Making Machine Price thumbnail-3
High Quality Best Carbonated Making Machine Price thumbnail-4
High Quality Best Carbonated Making Machine Price thumbnail-5
High Quality Best Carbonated Making Machine Price photo-1
High Quality Best Carbonated Making Machine Price photo-2
High Quality Best Carbonated Making Machine Price photo-3
High Quality Best Carbonated Making Machine Price photo-4
High Quality Best Carbonated Making Machine Price photo-5
US$ 5,000 - 18,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated Drink
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for carbonated making machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Carbonated Drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DCGF
Dimension(L*W*H) 2800*2900*3050mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description High quality best carbonated making machine price

1.The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed air conveyor.

2.A star wheel then transfers the bottle to neck holding gripper of the rinsing station.

3.The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.

4.In the filling station the bottles are picked up by the neck, allocated individual filling values and sealed by rubber, Next a valve opens to inject CO2 while simultaneously a second vent(bleed) valve is opened to displace the prviously oxygenated air from the container.

5.Once eventually all of the oxygen has been replaced by CO2 the vent is closed and another valve opens to let the product flows into the container down the wall of bottle.

6.After filling is complete a vent is opend to allow excess product to escape which defines the classic liquid leve fill that you see in all carboanted drinks.

7.Finally the filled container is ready for sealing and the faster the better. Bottled carbonated drinks can go directly to capping station without much worry as the foam caused by escaping CO2 denies atomopheric oxygen from entering the product.

8.The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands.

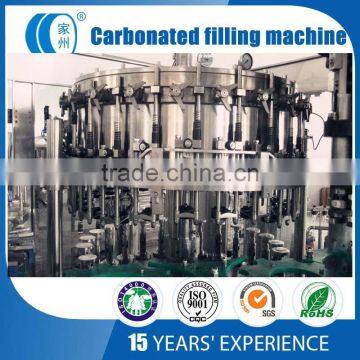

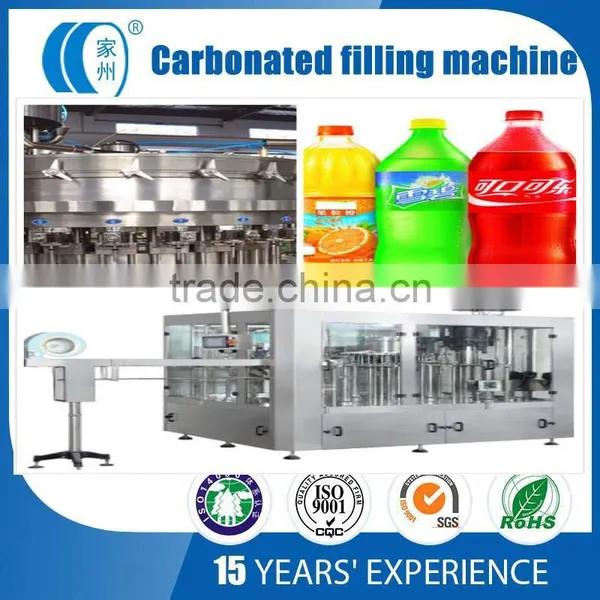

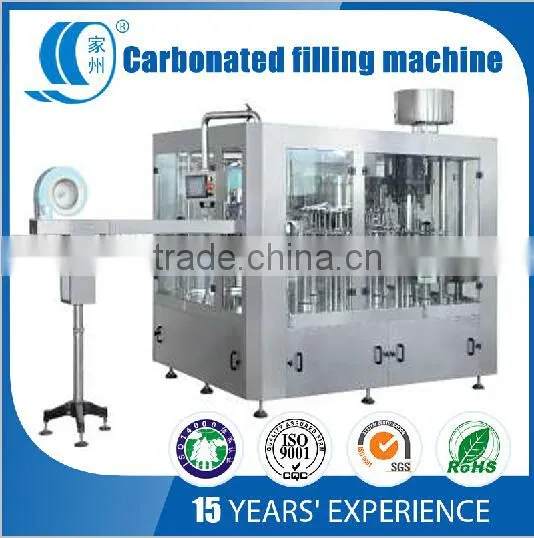

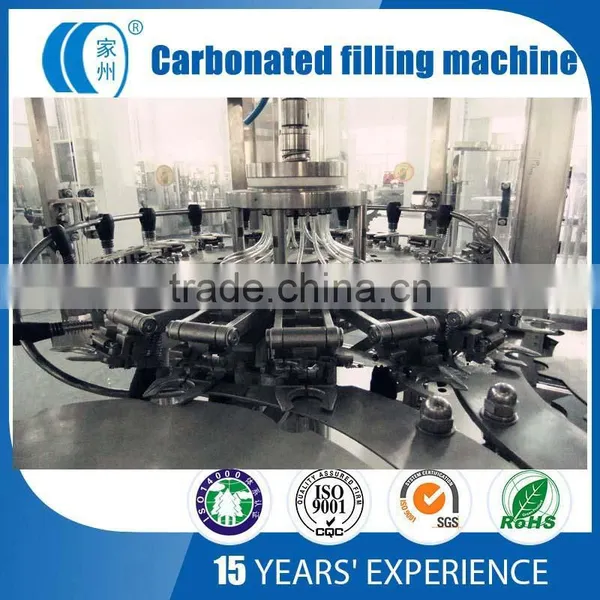

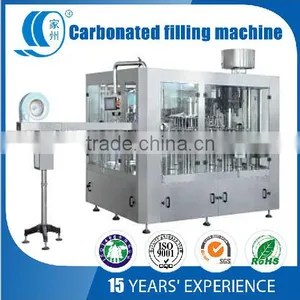

Product display High quality best carbonated making machine price

High quality best carbonated making machine price



High quality best carbonated making machine price



High quality best carbonated making machine price

Product Parameters High quality best carbonated making machine price
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
High quality best carbonated making machine price
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
High quality best carbonated making machine price
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
High quality best carbonated making machine price
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
High quality best carbonated making machine price
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
High quality best carbonated making machine price
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
High quality best carbonated making machine price
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
High quality best carbonated making machine price
