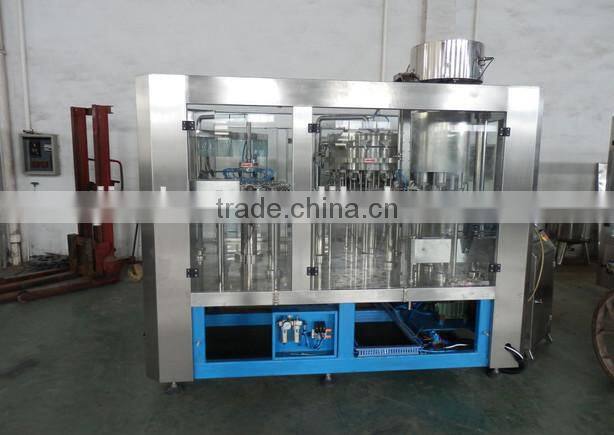

Small carbonated drink filling machine/bottle filling machinery
1. All parts, for instance, filling valve, which directly contact medium are made of stainless steel. So it conform to the requirements of food sanitation.
2. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature.
3. Carbonated bottle filler using programmable controller to realize fully automatic control from bottles entering to finishing packing.
4. Carbonated bottle filler advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
5.Carbonated bottle filler using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valvers in order to assure beverage quality.
carbonated bottle filler
Model |
CGFD16126 |
CGFD18186 |
CGFD24248 |
CGFD32328 |
CGFD404010 |
CGFD505012 |
CGFD606015 | CGFD808020 |
Filler/Capper heads |
16126 | 18186 | 24248 | 32328 | 404010 | 505012 | 606015 | 808020 |
Bottle diameter(mm) |
φ=50-100 H=170 |
φ=50-110 H=160-340 |
||||||
Production capacity(350ml)(b/h) |
2000~4000 | 4000~6000 | 8000~10000 | 10000~12500 | 12500~15000 | 16000~20000 | 20000~24000 | 26000~32000 |
Filling temperature ºC |
0~5 | |||||||
Filler type |
Balanced pressure filler |
|||||||
Spraying pressure(Mpa) |
0.2-0.25 |
|||||||
Filling pressure(Mpa) |
0.15~0.35 | 0.2~0.4 | ||||||
Motor power(kw) |
2.2+0.55+0.12 |
2.2+0.55+0.18 |
3+0.55+0.18 |
5.5+0.55+0.18 |
7.5 | 11 | 15 | 19 |
Overall dimension (L*W*H)mm |
2300*1600*2500 |
2600*1920*2550 |
3100*2200*2800 |
3850*3000*2850 |
4850*3800*2750 |
5750*3550*2750 |
6500*5500*2750 |
7680*6640*2650 |
Weight(kg) |
2800 | 3650 | 4800 | 6800 | 8650 | 10500 | 12800 | |
