Introduction

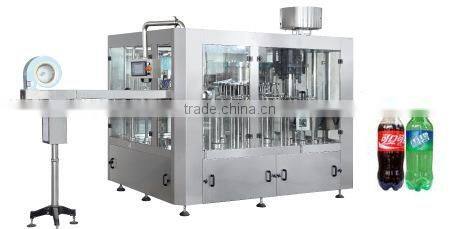

This cola filling bottle machine combines bottle rinser, filler and capper together with PLC control. It is mainly used for plastic bottles with carbonated/soft beverages.
- Each element contacting with beverages adopt top grade stainless steels whose surfaces are polished till smooth for easy rinsing.
- The sealing materials are EPDM rubber
- Adopt PLC as center control, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, keep balance of filling pressure to insure stable liquid level.
- Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.
- Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably
Features
- Air conveyor connected with bottle-in starwheel. Bottles neck holding transferred
- Clamp transferring technology varied bottle shapes.
- With little abrasion, stable transferring, easy to change bottles.
- With ring type pressure bearing hydraulic cylinder
- With high filling speed and exact fluid level.
- Excellent stainless steel or food level plastic to liquid. Electric system is of international brand and achieves national food sanitary standard
- The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.
Technical Data
Model(DGZ) |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-12 |
60-60-15 |
80-80-20 |
Number of wash/fill/cap heads |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-12 |
60-60-15 |
80-80-20 |
Suited bottle specification (mm) |
Φ=50-100 H=170 330-1500ML |
Φ50-Φ110 H=160-340 |
||||||
Production capacity(350ML) |
2000-4000 |
4000-6000 |
8000-10000 |
10000-12500 |
12500-15000 |
16000-20000 |
20000-24000 |
26000-32000 |
Washing pressure |
0.2-0.25 |
0.2-0.25 |
||||||
Filling pressure |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
Motor power |
1.5+0.55 |
2.2+0.55 |
3+0.55 |
5.5+0.55 |
7.5 |
11 |
15 |
19 |
Overall dimensions |
2300×1600 |
2600×1920 |
3100×2200 |
3850×3000 |
4850×3800 |
5750×3550 |
6500×5500 |
7680×6640 |
Weight kg |
2800 |
3650 |
4800 |
6800 |
8650 |
10500 |
12800 |
|
