Home > Products > Hydraulic bulging press > Stainless Steel Thermos Blowing Machine
Stainless Steel Thermos Blowing Machine
- China Port
- T/T
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Production Capacity | 5-10pcs/min | Place of Origin | Guangdong, China | |
| Brand Name | Yongheng | Model Number | Y98-160 | |
| Voltage | 110-440v | Power(W) | 11+2.2KW | |
| Weight | 7.2Ton | Dimension(L*W*H) | 2050(L) x 1500(W) x 3460(H) | |
| Certification | ISO9001-2000 | Warranty | One year, One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

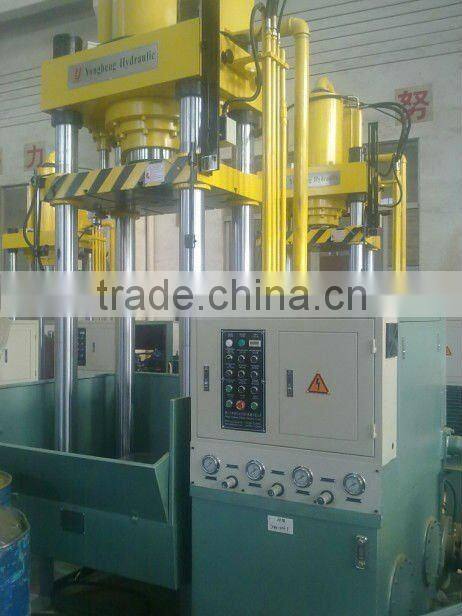

Stainless Steel Thermos Blowing Machine
1.Suitable for:
Stainless Steel Thermos Blowing Machine is used for forming the part with complex surface.Press water machine is designed and manufactured for the realization of this process.Water press machine can be used for the hydraulic bulging process of vacuum cup,thermos,bottle and other tableware and containers made of stainless steel ,cooper,aluminum,iron and other materials.
2.Main Features:
1.Application:for forming the part with complex surface.
2.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
3.Safety protection device should be equipped to provide security guarantee for the operators
4.Auto count function should be equipped
5.Locking-mould force and water pressure are adjustable
3.Main technical specification:
DESCRIPTION | UNIT | Y98-160 |
Nominal Capacity | KN | 800 |
Master Cylinder Stroke | MM | 700 |
Nominal Capacity Of Pressurized Cylinder | KN | 800 |
Stroke Of Pressurized Cylinder | MM | 350 |
Max. Capacity Of Injection Cylinder | L | 5.3 |
Max. Injection Pressure Of Injection Cylinder | MPA | 50 |
Max. Shut Height | MM | 1200 |
Working Table Size | MM | 540(L) x 550(W) |
Sliding Platform Size | MM | 450(L) x 380(W) |
Downing Speed | MM/S | 300 |
Pressing Speed | MM/S | 25 |
Return Speed | MM/S | 300 |
Motor Power | KW | 11+2.2 |
Overall Size | MM | 2050(L) x 1500(W) x 3460(H) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea

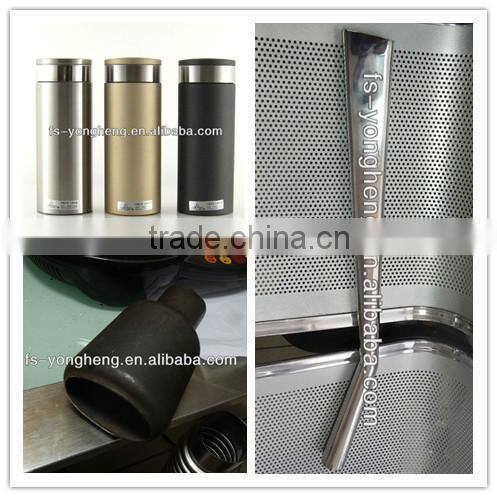

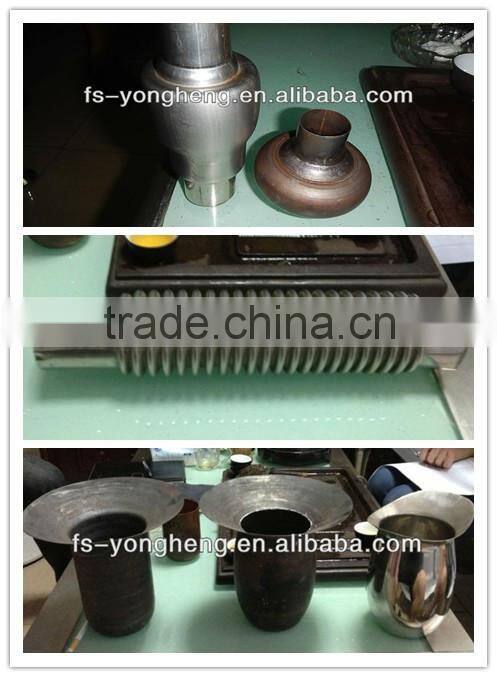

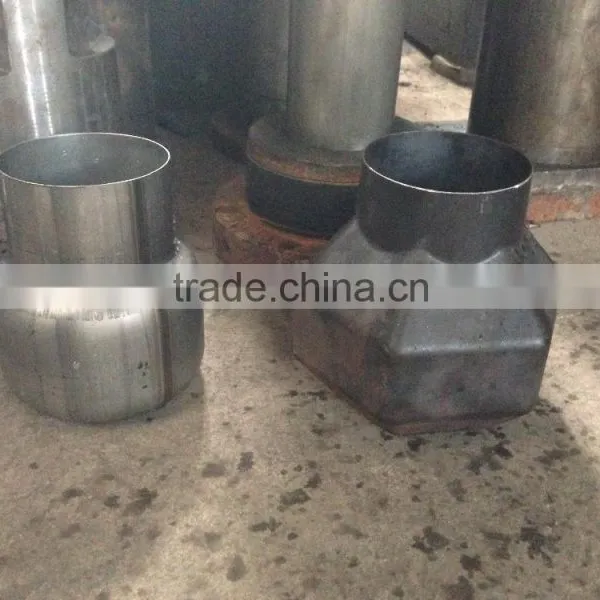

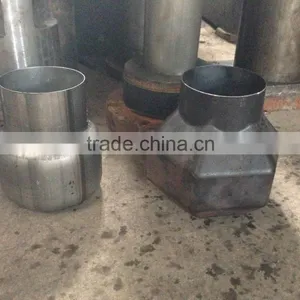

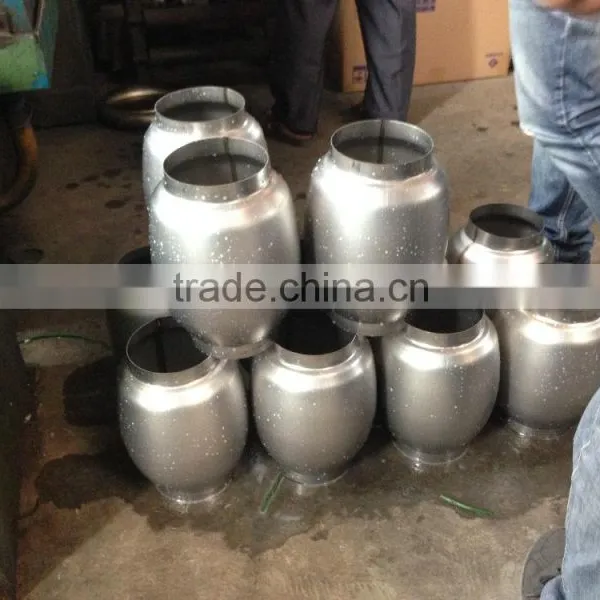

What can we produce?
Contact Us
- Foshan Yongheng Hydraulic Machinery Ltd. Nanhai Branch
- Contact nameJianhua Luo Chat Now
- Phone86-757-85408933
- AddressShashui Rd,Danzao,Nanhai,Foshan,Guangdong, Foshan, Guangdong
