Hydraulic Water Blowing Machine For Steel Tube Table Legs
- 50 Set / Sets per Month
- China Port
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | yongheng | |
| Model Number | Y98-200 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

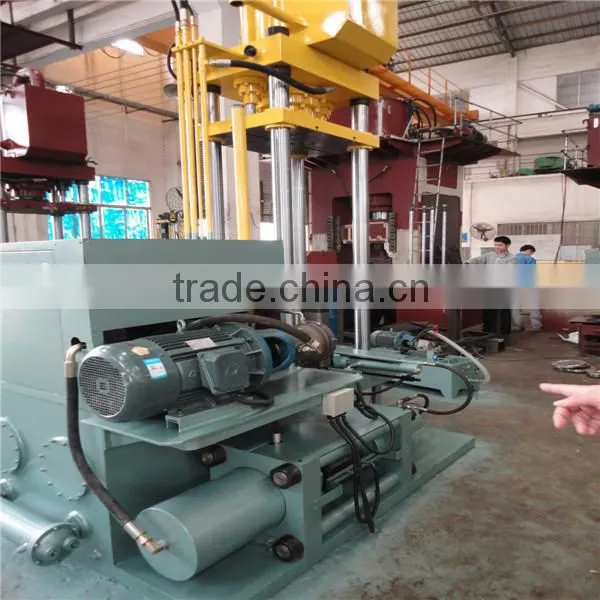

Hydraulic Water Blowing Machine For Steel Tube Table Legs
1.Suitable for:
Hydraulic Water Blowing Machine For Steel Tube Table Legs is used for forming the part with complex surface.Can be used for the hydraulic bulging process of vacuum cup,thermos bottle,water bottle and other tableware and containers made of stainless steel,copper,aluminum,iron and other materials.
2.Main Feature:
1.Application:for forming the part with complex surface.
2.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
3.Safety protection device should be equipped to provide security guarantee for the operators
4.Auto count function should be equipped
5.Locking-mould force and water pressure are adjustable
3.Main technical specification:
DESCRIPTION | UNIT | Y98-200 |
Nominal Capacity | KN | 1000 |
Master Cylinder Stroke | MM | 750 |
Nominal Capacity Of Pressurized Cylinder | KN | 1000 |
Stroke Of Pressurized Cylinder | MM | 350 |
Max. Capacity Of Injection Cylinder | L | 7 |
Max. Injection Pressure Of Injection Cylinder | MPA | 50 |
Max. Shut Height | MM | 1300 |
Working Table Size | MM | 650(L) x 650(W) |
Sliding Platform Size | MM | 550(L) x 450(W) |
Downing Speed | MM/S | 360 |
Pressing Speed | MM/S | 30 |
Return Speed | MM/S | 300 |
Motor Power | KW | 15+2.2 |
Overall Size | MM | 2200(L) x 1600(W) x 3750(H) |
1.The special specifications can be custom made separately
2.Engineer is available to service oversea
