led rgbw controller support duplex push dim button DC12V/24V rgbw strip leds controller RRGBW led controllet
Introduction :

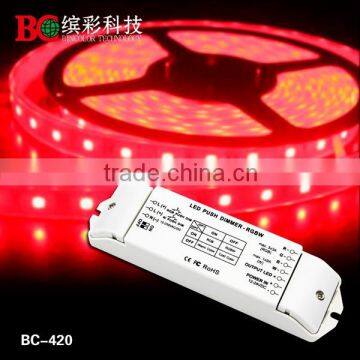

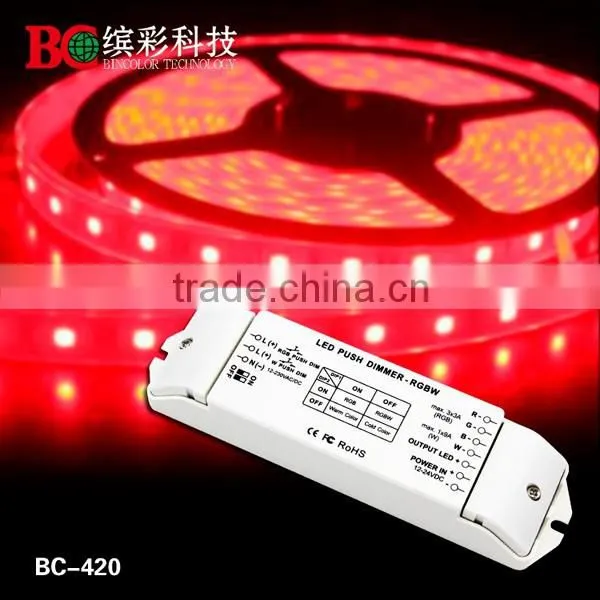

BC-420 Push dim RGBW controller is used to control DC12V-24V input constant voltage rgbw led lightings. such as rgbw led strip, led module, led SMD tape etc.
With static and dynamic modes. In static modes, long press the push button to change the color, 5 seconds for one step.
In Dynamic modes, you can choose between 4 different programs by DIP switch. and long press to change the speed.
Feature:
1.4 output channels, 4096 grey scale
2.static and dynamic modes selectable.
3. Power loss memory function
4.Over current protection, short circuit protection
5.To work with power repeater to expand output unlimitedly
6. with 3 years warranty and CE FCC Rohs certification
Specification :
|
Input voltage
|
DC12V-DC24V |
|
Output current
|
RGB:3A/CH X 3CH W : 9A/CH x 1 |
|
Output power
|
RGB: 36W x 3CH W:108W (12v) RGB:72W x 3 CH w: 216w(24v) |
|
Grey salce
|
4096 levels X 4 CH |
|
Dimension
|
L 176 x W 46 x H 30 mm |
|
Weight
|
145g |
Product show

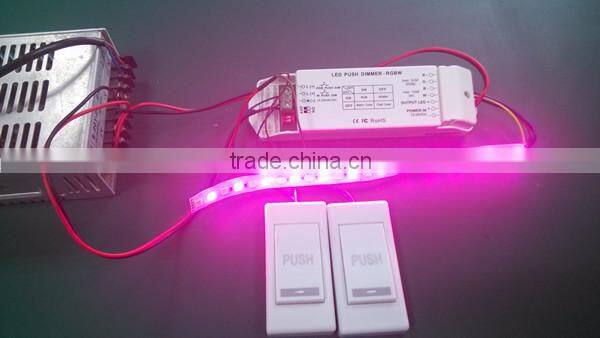

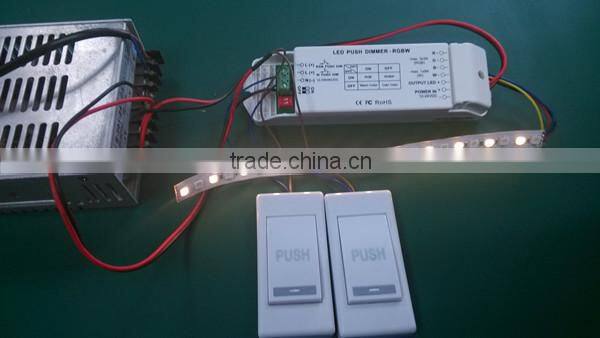

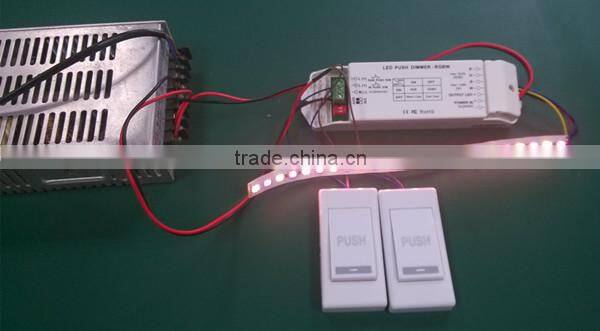

1. BC-420 RGBW Controller must be connect with two push button.
2. the first push button controls the rgb channel :
3. the second push button controls the W channnel :

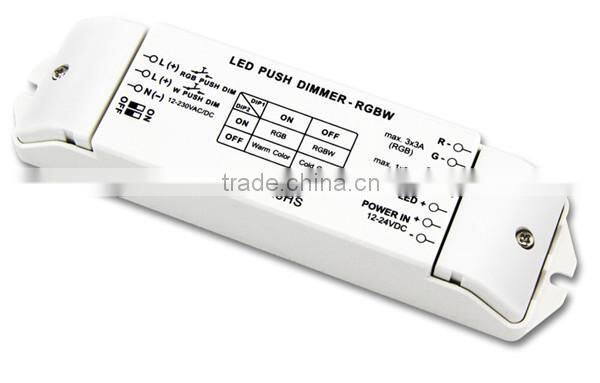

4. DIP Switch change 4 different color changing modes : RGB /RGBW/ Warm color/ Cold color
