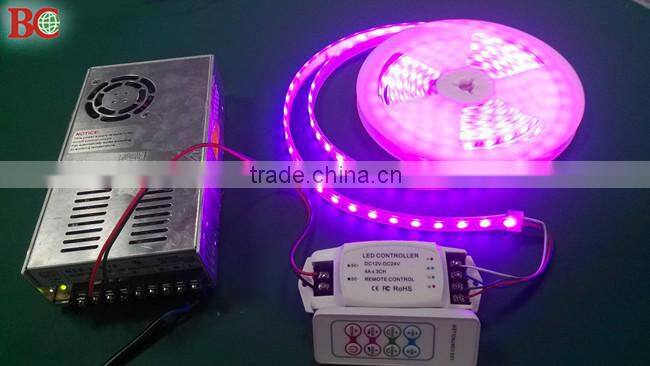

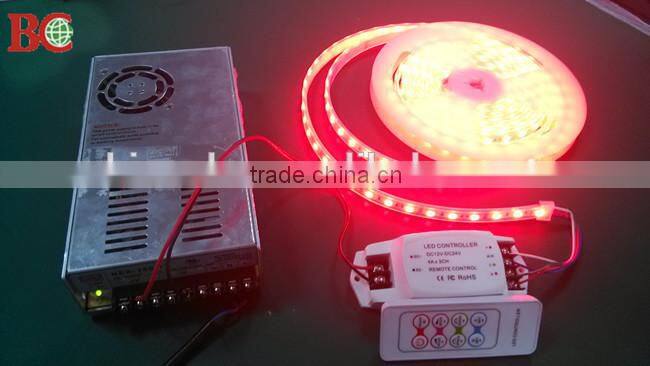

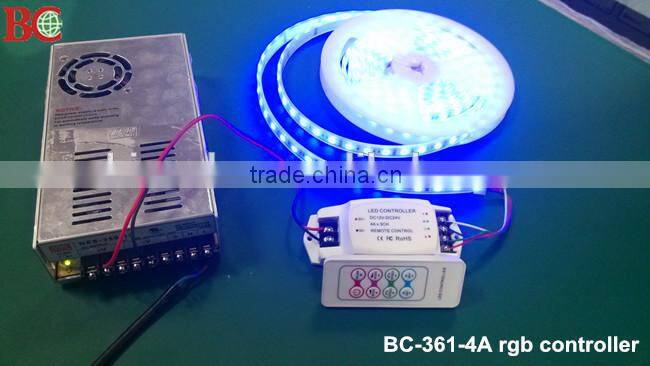

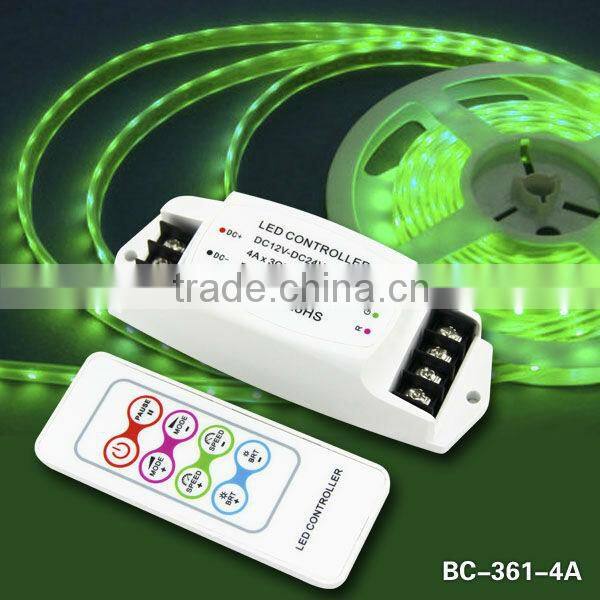

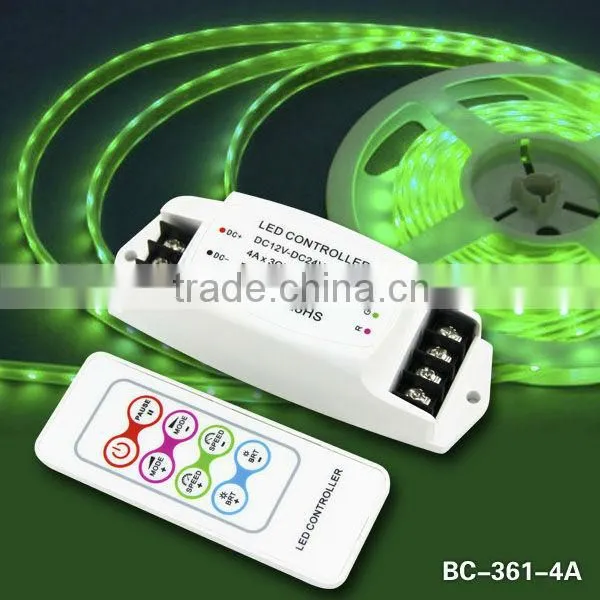

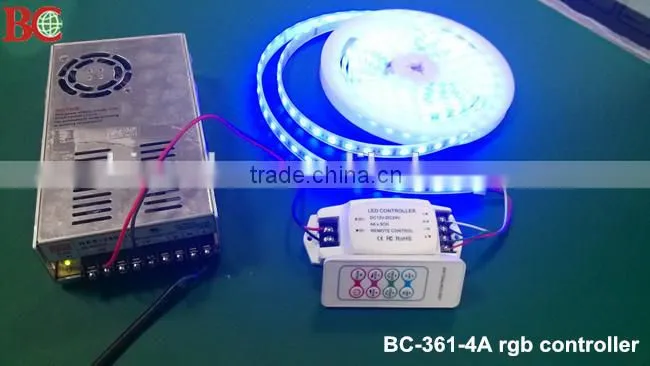

3 channel Rf wireless LED Strip Rgb controller
Introduction:
This Constant Voltage Multi-function RGB Controller is a universal RGB controller for entire color changing, which adopted high-performance microchip and the most advanced PWM (Pulse-Width Modulation) controlling technology at present. It can control all 4-pin 3-loop LED RGB full color lights. This series with RF remote controller and it is available only within the valid range.
Product parameter:

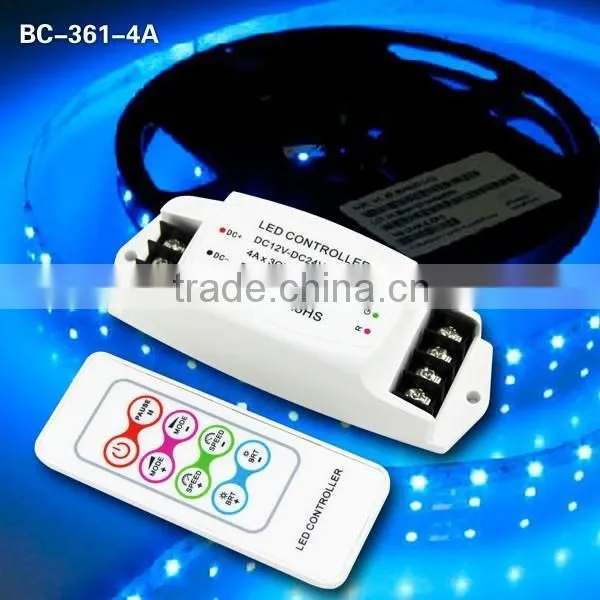

Model |
BC-361-4A |
Input voltage |
DC12V-DC24V |
Max current load |
4A/CH×3 |
Driving LEDs |
144W (12V)/288W (24V) |
Scale levels |
4096 scale/CH×3 |
Product Dimension |
L125xW45xH36(mm) |
Weight (G.W) |
130g |
Remote control distance |
30m with obstacles; 60m without obstacles |
Control type |
Common anode |
Feature function:
1. Automatically adapt to LED light which works from DC12V-24V.
2. on-off controller function
3. 3 channels RGB full color control, 4A per channel, totally 12A.
4. 17 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
5. Can choose a changing speed and brightness in a certain mode independently.
6. Can stop at static single color, speed & brightness adjustable at pause status.
7. Factory default is available.
8. Working with power repeater to expand power output unlimitedly.
9. Power loss memory function.

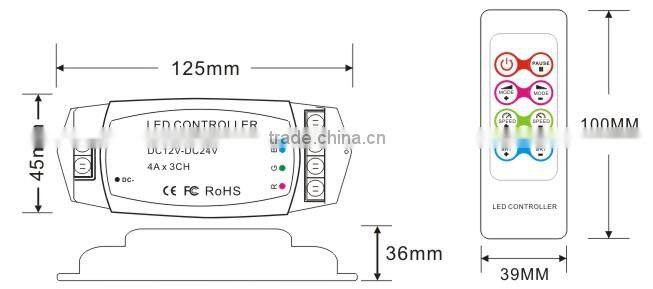

Dimension:

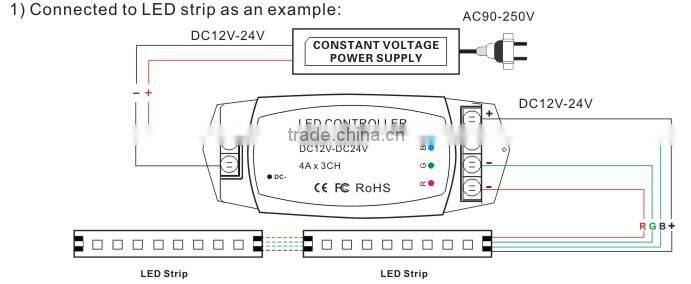

Ciruit diagram:

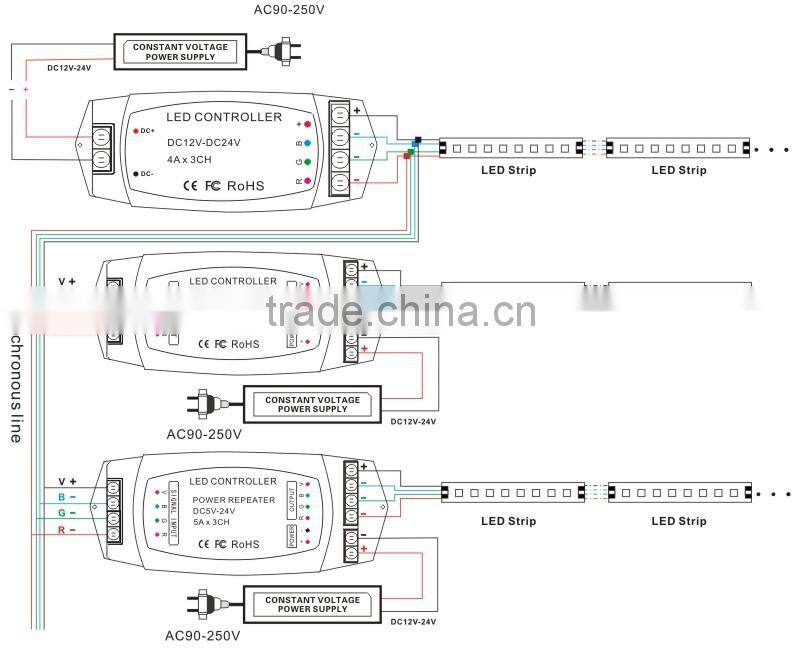

Connect with led power repeater :
1. Packaging:
After inspection the goods are packed in inner box and then carefully packed in cartons.
2. Shipping:
We will deliver goods by EMS/DHL/FEDEX/UPS and so on, it will takes around 5-7 working days to
arrived.
1. Our products meet international standards. OEM and ODM orders are welcome.
2. For first coopertion, welcome to buy sample to test quality, and we don't require MOQ for
sample, any quantity is available.
3. All products have 3 years warranty.
