PHILICAM 200w Fiber Sheet Metal Laser Cutting Machine Price

Name: PHILICAM 200w Fiber Sheet Metal Laser Cutting Machine Price
Brand: PHILICAM
Availability: InStock

FOB Price

US$ 15,000 - 30,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	Fiber Laser
Applicable Material	Metal	Cutting Thickness	within 3mm
Cutting Area	1300*2500mm	Cutting Speed	0-300mm/s
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	cypcut	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin	Shandong, China	Brand Name	PHILICAM
Model Number	FB-1325E	Certification	CE, ISO, Other, CE, ISO, FDA
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

PHILICAM 200w fiber sheet metal laser cutting machine price

Application Materials:

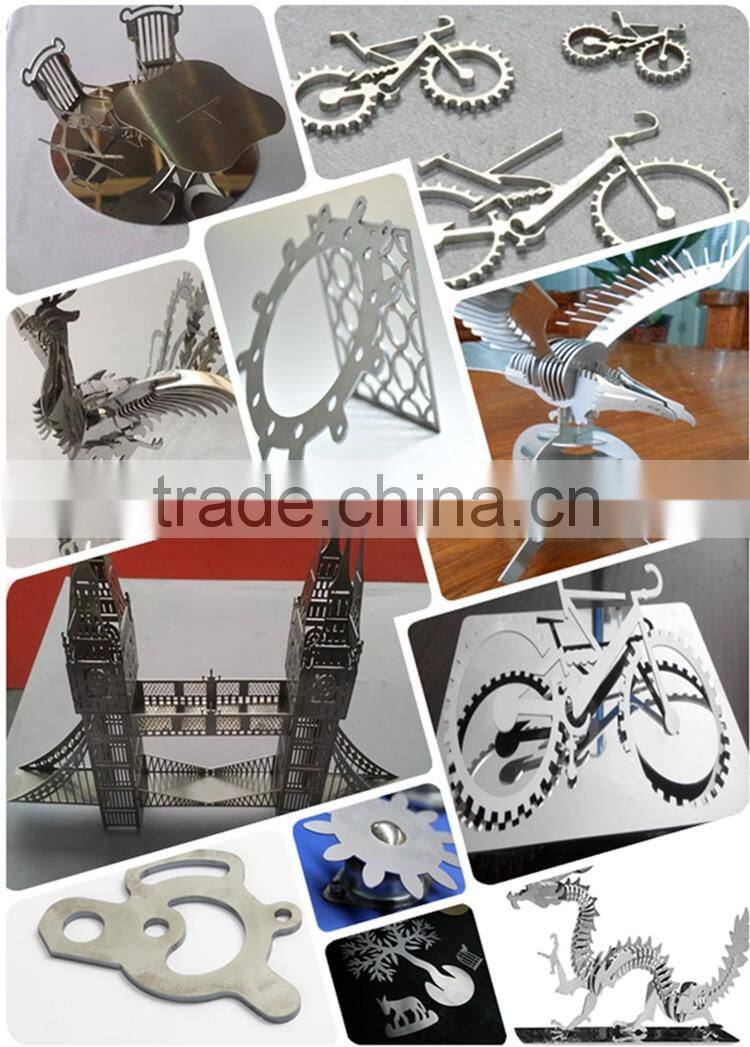

It is used for cutting stainless Steel,Mild Steel,Carbon Steel,Alloy Steel,Spring steel,Iron Plate, Galvanized Iron,aluminum plate and tube,etc (It is first choice for cutting all kinds of metal sheets and metal pipes)

Cutting thickness

Material	Thickness(mm)	Speed(mm/s)
Stainless Steel	0.5	>200
	1	90~120
	2	16~20
Carbon Steel	1	120~150
	2	35~45
	3	15~18

Product Description

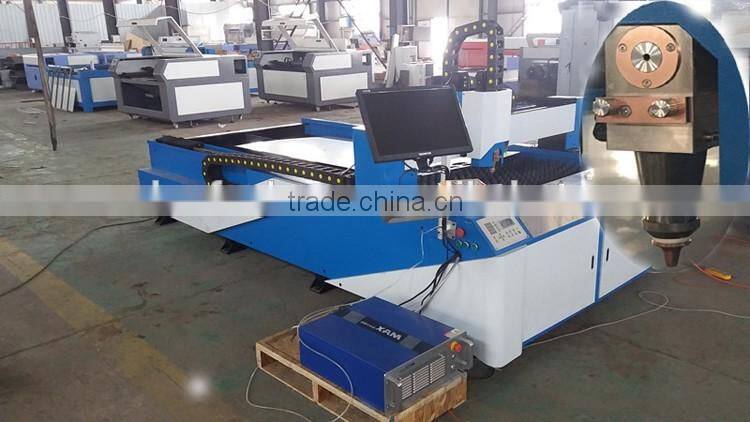

PHILICAM 200w fiber sheet metal laser cutting machine is mainly for cutting thin metal, such as, stainless steel, carbon steel, steel tube, etc. As we know fiber laser is stable, so it is a good choice for cutting metal. Also the sheet metal laser cutting machine price is reasonable and cost-effective. Thus, is very popular nowadays.

# Working area: 1300*2500mm

# Laser power Fiber 200w MAX laser

# Wanshunxin laser cutting head

# Cooling system: water chiller

# air compressor

# Red point, auto focus, follow-up system

# X axis Y axis HIWIN linear square rail from Taiwan

# TBI Ball screw from Taiwan

# YASKAWA Servo motor and drivers from Japan

# Imported Lenses and mirror

# controller: cypcut

# software: cypcut

# supports format: DXF,DXP, NC, G, etc

# 380V/ 50HZ

Technicial Parameters

No.	paprameter	FB-1325E
1	Max working area	1300X2500mm
2	X axis	1350mm
3	Y axis	2550mm
4	Z axis	150mm
5	XY reposition accuracy	-0.02--+0.01mm
6	Table height	750mm
7	Max speed	1500mm/s
8	Machine weight	1800 KG
9	Control system	CYPCUT
10	Power supply	3P 380V 50HZ
11	Machine size	3700X1900X1600mm
12	Driver motor	Yaskawa servo motor and driver
13	rail	Taiwan HIWIN XYZ20
14	Water chiller power	1.1KW
15	Air compressor	5.5KW
16	generator	200W Chuangxin
17	Laser beam	1080nm
18	Total cost power	11.3KW
19	Ocupation area	3700X1900mm
20	laser head	Shunxin laser head

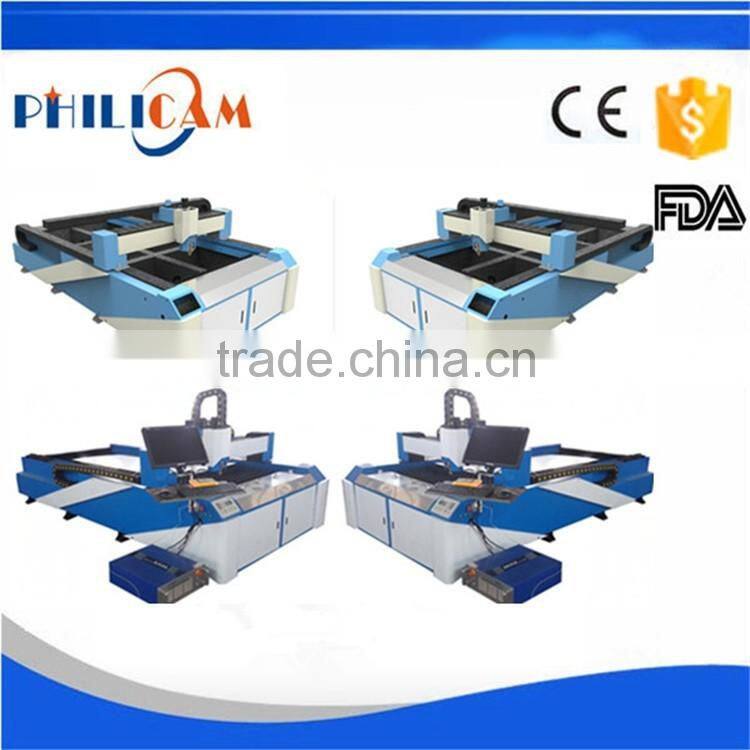

Machine structure:

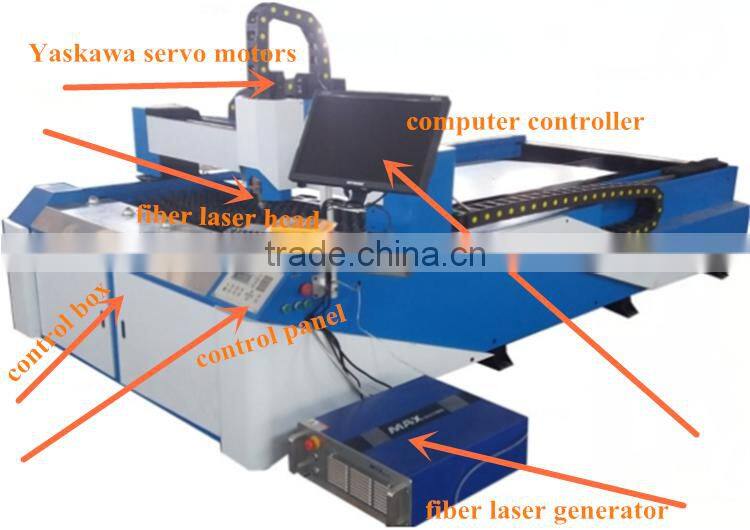

Machine parts:

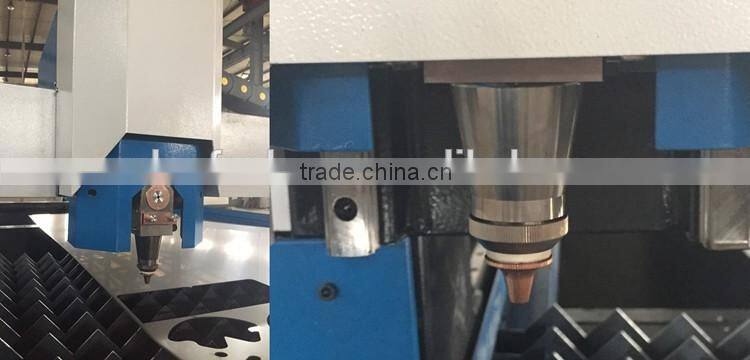

fiber laser head

The sheet metal laser cutting machine laser head is from Wanshunxin laser head, which is with the auto focus system and could adjust the laser head up and down according to the material surfaceautomatically.

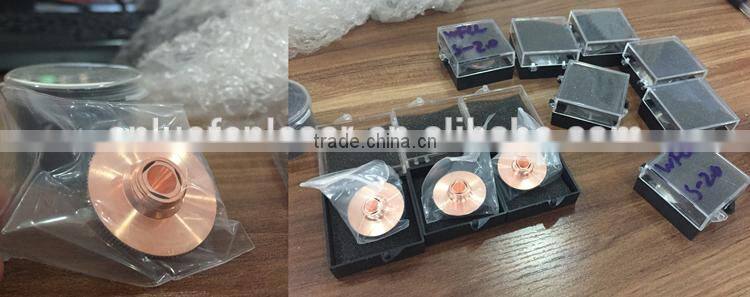

1).Cutting nozzle:(Used for assist gas cutting rectifying the gas blowout uniformly from the cutting nozzle)

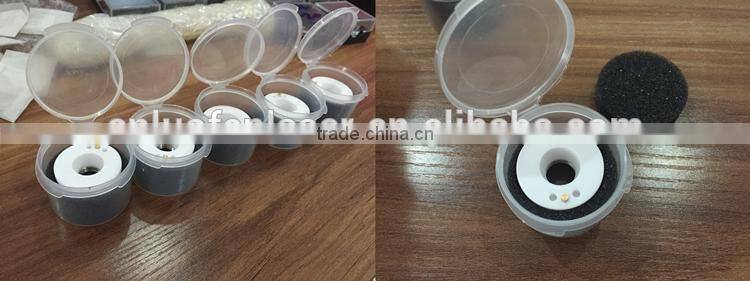

2).Ceramic body:(Capacitance block accessories)

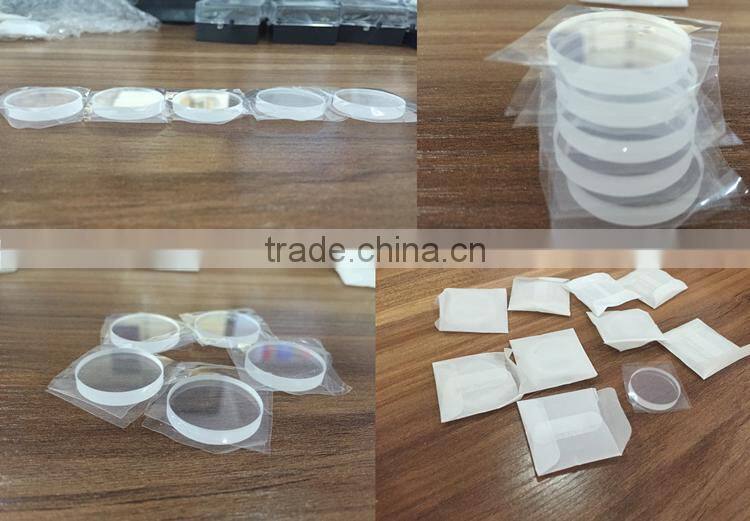

3).Protective lens

(When the protective mirror is burning into black spots, loosen the front two fastening screws,change into new protective lens or wipe it.After completion,take it back and tighten the screws.)

Maintenance of lens

1 Use Tool: Long fiber cotton, ethanol,

2 Cleaning methods

1). Ethanol is sprayed onto the cotton.

2). Left thumb and index finger gently pinch the side edge of the lens (Note that the fingers can not touch the surface of the lens to avoid any scratch )

3). Facing the lens directly, right hand Grab cotton stick, gently wipe from the bottom or from left to right in a single direction Lens, can not wipe back and forth, to avoid secondary pollution lens), confirm back and front side to be cleaned,can not stay the under cleaners, cotton, foreign materials and contaminants)

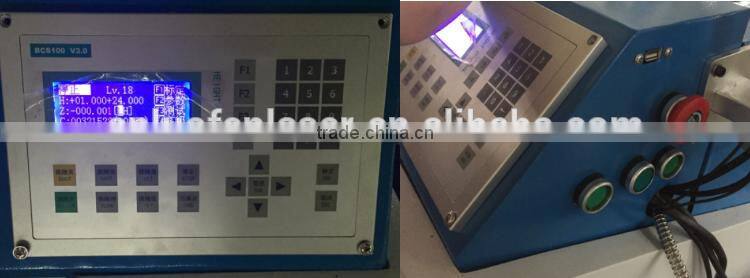

Cypcut controller and software:

It is an excellent laser cutting control system, which unit reading file, design, processing and output as a whole. To only one this set software could achieve the complete process from design to producing.

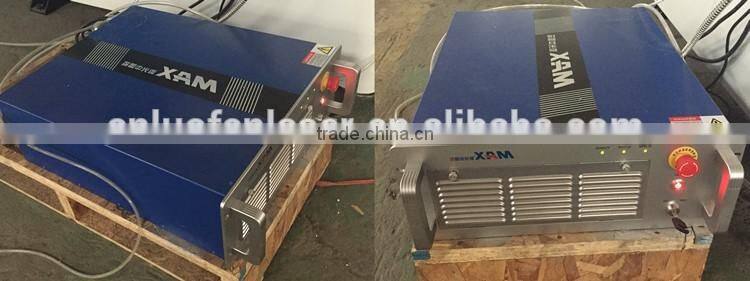

Max Photonics laser generator

The advantages is with excellent beam quality, high reliability, low cost integrated use, high photoelectric conversion efficiency.

Being in a small size, it is easy to be token and also operated. It even could work in harsh environments.

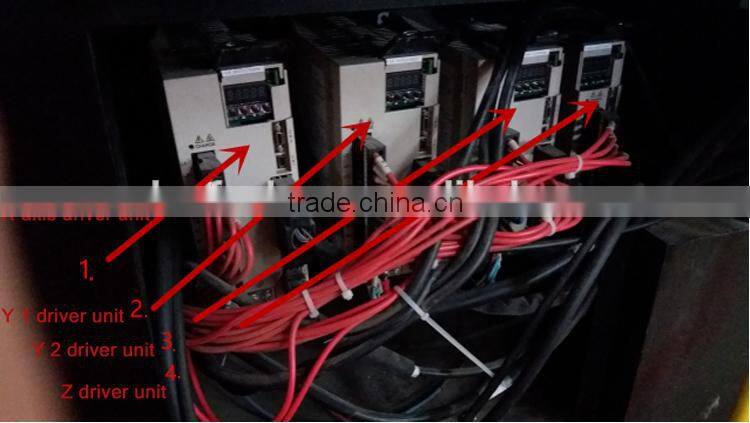

Yaskawa servo motor and driver

It is with high stability, High-speed performance and strong adaptability of anti-overload, which is suitable for the occasion of rapid start requirement.

It also is comfortable because heat and noise significantly reduced. Thus, it is with high accuracy, since it is a closed-loop control, thus avoid the problem of our of step.

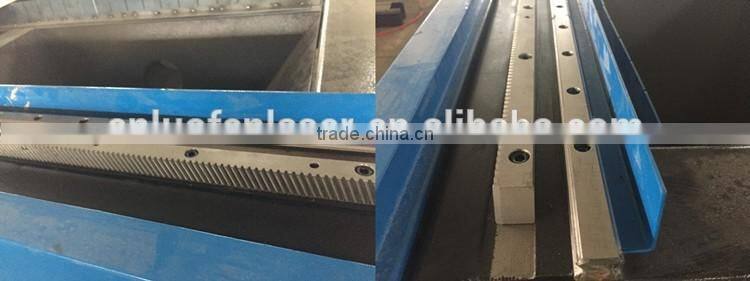

Oblique rack and Taiwan Hiwin square rail

The oblique rack could improve the coincidence degree of gear, so it could make gear transmit smoothly with larger force and reduce noise.

HIWIN is with high precision design, which could be easily installed, the speed is fast with low noise.

Company Information

PHILICAM GROUP RUOFEN is a professional CNC machine manufacturer, which owns more than 30,000 square meters warehouse for cnc router, cnc laser machine.We have a professional sale team and engineer team with more than 10 years experience. The high quality machines and good service has earned us good reputation in world market. Our main products are One heads CNC router, 3 heads CNC router, ATC, auto feeding loading and unloading CNC router, PTP, and fiber laser cutting machine, 200w,300w,500w,750w, 100w,etc; and also laser marking machine. PHILICAM Group-Ruofen is always your best choice!

Customers in our factory:

Packaging & Shipping

Series Model:

1. 1325 laser cutting machine for metal (cutting area:2500X1300mm)

2. 1530 laser cutting machine for metal (cutting area:3000X1500mm)

Attention:

1. Device during use should be checked regularly, especially the protective lens (3--6 days)

2. During cutting sparks splashes will stay to the cutting noozles should be kept clean so as not to affect the following system accuracy)

3. Pay attention to piercing way when cutting different sheet metal, inappropriate perforation mode will damage the laser head and lens.

4. Machine should be strictly grounded. Grounding resistance <4Ω.

5. Water-cooled machine should change the coolant liquid every 15-20 days

6. When cutting with compressed air ,the water and utility inside air compressor must be filtered clean to avoid contamination of lens.

7. Prohibit to cut without ventilation conditions

8. To clean up dust and debris in the control cabinet, to make sure the screws are not loose every 30 days .

9. Brush lubricants of rack rails in every 30 days.
