Philicam Made In China 3d cnc router wood with round atc
- 200 Set / Sets per Month
- qingdao
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | PHILICAM | Model Number: | FLDM1325 | Voltage: | AC380V/50HZ |
Power(W): | 9.0kw HSD | Dimension(L*W*H): | 3000*1820*1550mm | Weight: | 1100KG |
Certification: | CE | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

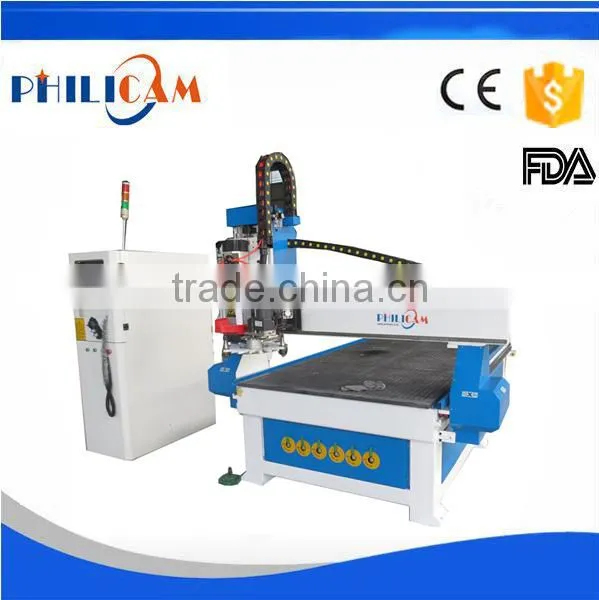

Philicam Made In China 3d cnc router wood with round atc
This Philicam atc cnc router 10 tools are at the service of high-end customers with high demand in automation, for it's application suitable to 24 hours/day mass production, all the configuration are in high-end configuration for best performance and best quality, enercy saving and high efficiency.
*FLDM 1325 of cnc router made in china
*1300*2500*300mm working size
*heavy duty frame

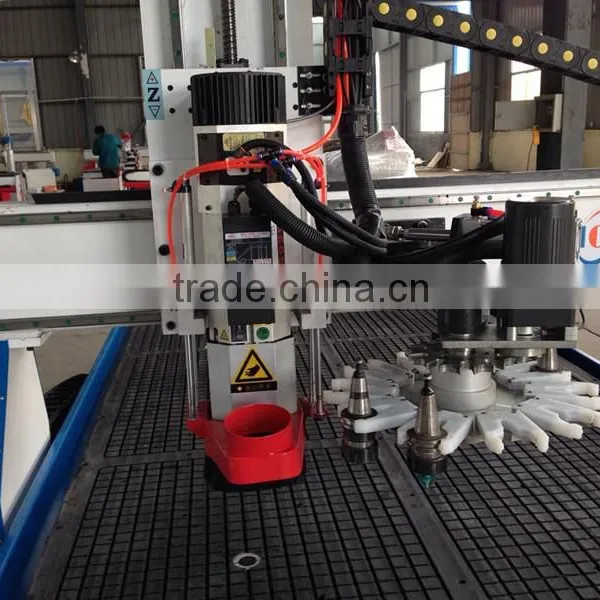

*HSD 9.0kw air cooling tool changer spindle
*X Y axis helical gear tranmission
*Z axis Taiwan TBI ball screw
*Taiwan 30 Hiwin rails
*Vacuum table and 7.0kw vacuum pump

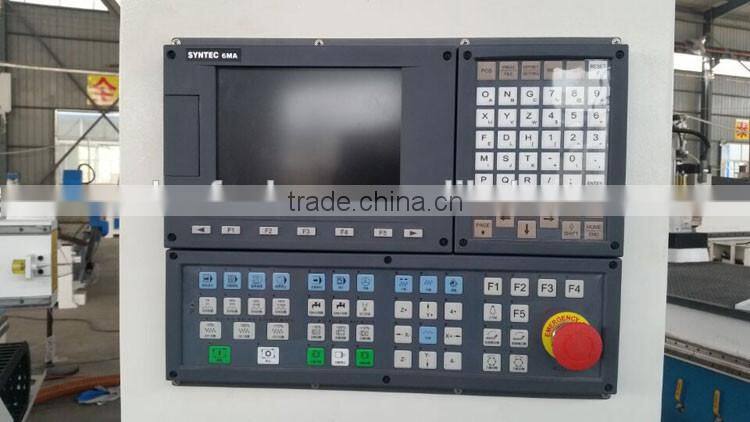

*Taiwan Syntec control system
*Yaskawa servo motor and driver with reducer
*Dalta 11kw inverter
*Schneider electric parts
*filter
*dust collector with double hood
*automatic tool calibration pad
Technical Parameters of cnc router made in china
Description | Parameter |
X,Y Working Area | 1300x2500x300mm |
Table Size | 1440×3040mm |
Resolution | 0.01mm |
Lathe Structure | heavy duty |

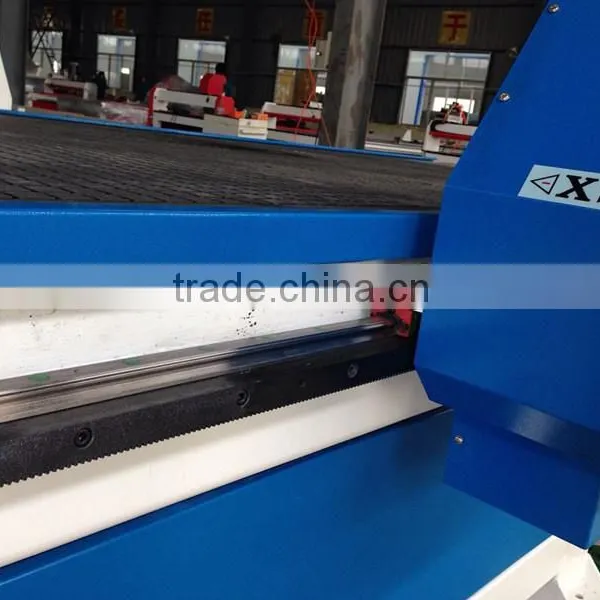

X,Y Structure | Rack and pinion, gear drive, Taiwan hiwin square guide rails |
Z Structure | taiwan TBI ball screw, Taiwan hiwin square guide rails |
Max. Idling Speed | 60m/min |
Spindle | Italy HSD air-cooling 9 KW |
Spindle Speed | 0-24000r/min, variable speed |
Working Voltage | AC380V/50Hz |
Motor and driver | YASKAWA motor and driver |
Command | G code (HPGL,U00,mmg,plt) |
Operating System | Taiwan SYNTEC control system |
Diameter of Cutter | φ3.175-φ12.7 |
Cooling Mode | Air-cooling |
Dust-collect Function | Yes |
Work Holding | By suction or clamp |
Tool Magazine | round -style auto-tool changer system with 10 pieces of tools |
Net Weight | 1800KG |

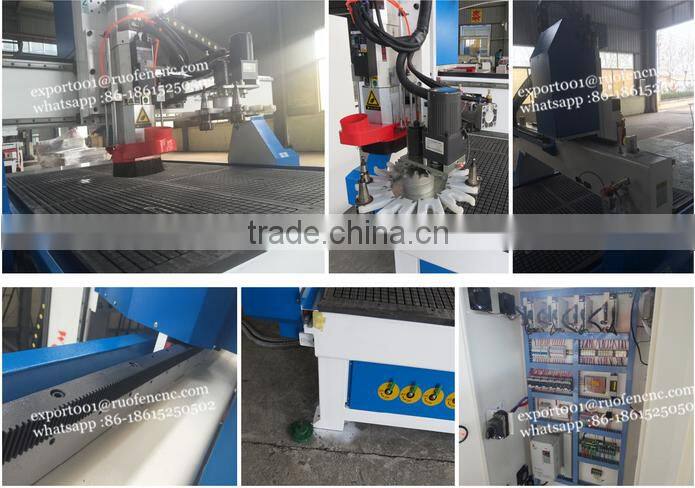

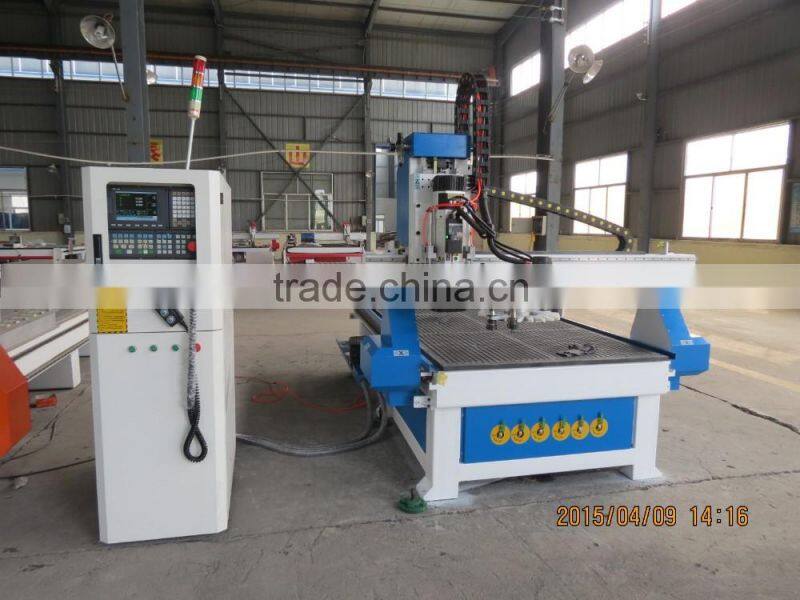

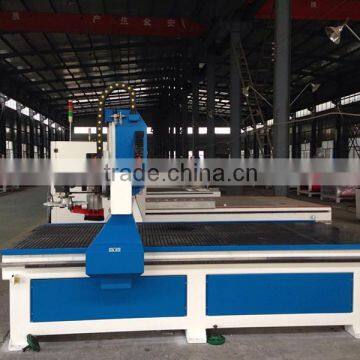

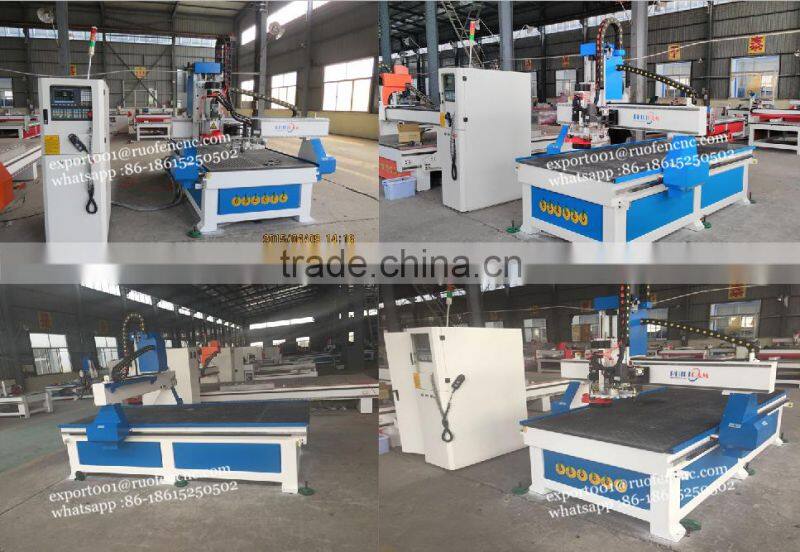

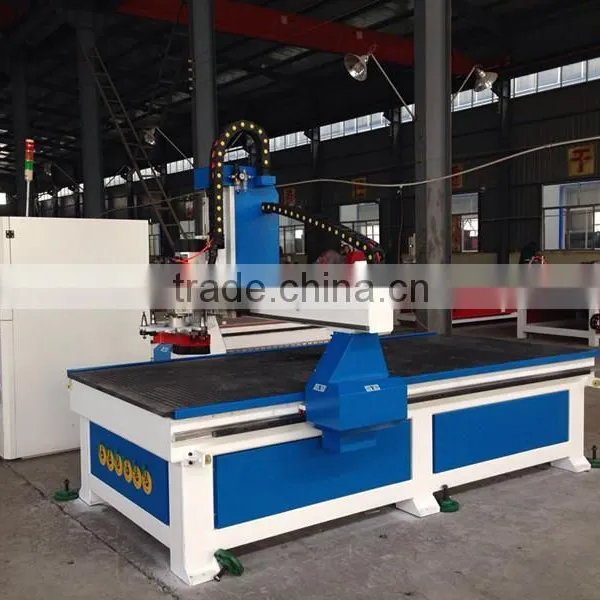

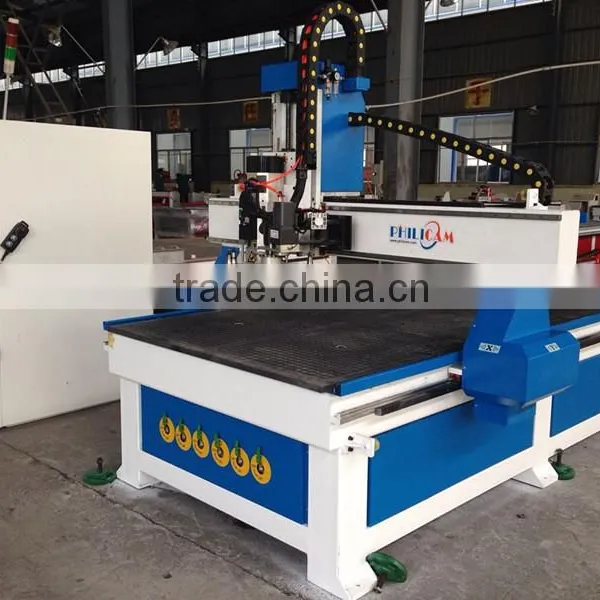

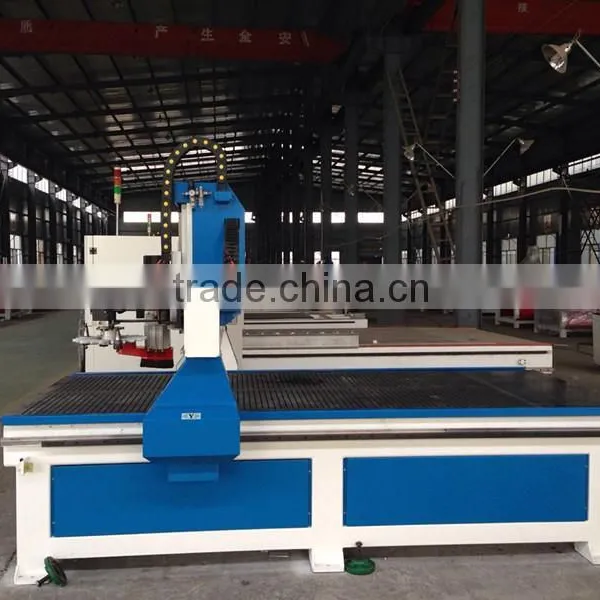

Machine parts and pictures of cnc router made in china
Applications of cnc router made in china
1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
After Sale Service of cnc router made in china
#. Guarantee for 1 year for the whole machine excluding consumable parts. Extra
fee is paid if out of date. Any damage to the machine caused by importer use will
be charged.
#. 18-hour technical support Internet or by E-mail, Skype, Telephone, free instructions
and problem solving, we also can make remote control for you.
#. Free installation and fully test before sending and free training for operators.
#. We provide English operation manual and video to help you to learn the machine
Payment Terms of cnc router made in china
We accept T/T, Western Union. Paypal. or Trade assurance.
Most customers prefer to T/T. because its simple to do the transfer.
Usually we accept 30% in advance by T/T, 70% before delivery.
But before we send you the machine, we will test the machine then ensure everything is OK.
then show you machine photos and videos. After you agree,we arrange the delivery
Packing parts of cnc router made in china
FAQ of cnc router made in china
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
anything need I help, please do not hesitate to contact me
whatsapp and phone number :86-18615250502
skype and mail :export001(@)
