Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Precision Laser Cutting Machine MCT-6580 Series

Precision Laser Cutting Machine MCT-6580 Series

Precision Laser Cutting Machine MCT-6580 Series thumbnail-3

Precision Laser Cutting Machine MCT-6580 Series thumbnail-4

Precision Laser Cutting Machine MCT-6580 Series thumbnail-5

Precision Laser Cutting Machine MCT-6580 Series photo-1

Precision Laser Cutting Machine MCT-6580 Series photo-2

Precision Laser Cutting Machine MCT-6580 Series photo-3

Precision Laser Cutting Machine MCT-6580 Series photo-4

Precision Laser Cutting Machine MCT-6580 Series photo-5

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Warranty:

1years

Cooling System:

Water Cooling

Application:

Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry

Contact Supplier Request Quote Chat Now

Su Zhou Hbn Group Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai /Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Warranty 1years

Cooling System Water Cooling

Application Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry

Structure Type Desktop

Technical Class Continuous Wave Laser

Applicable Material Metal

Laser Technology Laser Control Fault Cutting

Model series			MCT- 6060Series
	MCT-6580-1000	MCT-6580-1500	MCT-6580-2000 0	MCT-6580-3000	MCT-6580-6000
Output Power	1000w	1500w	2000w	3000w	6000w
type			continuous
Cutting product accuracy			0.03mm
Minimum hole diameter for cutting through holes			0.1mm
Processing materials			Aluminum, copper, stainless steel metal materials
Effective cutting size			650mm×800mm
Fixing method			Pneumatic clamping and fixture support
Drive system			Linear Motors

Positioning accuracy			≦+/-0.008mm
Repeatability			0.008mm
CCD alignment accuracy			10um
Cutting gas source			Air, nitrogen, oxygen
Cutting line width and fluctuation			0.02mm-0.1mm
Cutting surface			Smooth, no burrs, no black edges
Overall warranty period			1 year (excluding wearing parts)
weight			1800Kg
Maximum cutting thickness	Stainless steel: 4MM (air) Aluminum plate: 2MM (air) Copper plate: 1.5MM (air)	Stainless steel: 6MM (air) Aluminum plate: 3MM (air) Copper plate: 3MM (air)	Stainless steel: 8MM (air) Aluminum plate: 5MM (air) Copper plate: 5MM (air)	Stainless steel: 10MM (air) Aluminum plate: 6MM (air) Copper plate: 6MM (air)	Stainless steel: 10MM (air) Aluminum plate: 8MM (air) Copper plate: 8MM (air)

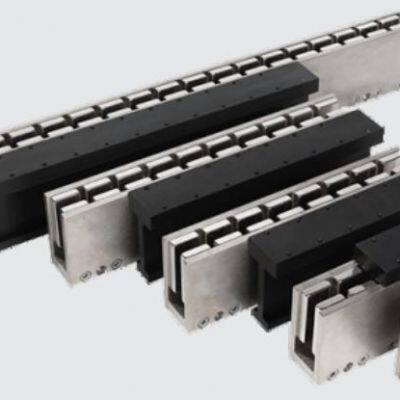

MCT-6580 high-speed precision cutting machine is suitable for precision deformation-free cutting of metals, electronic components, ceramic materials, crystals, carbide, and other precious metal materials. The equipment adopts imported magnetic suspension linear motor drive, with high positioning accuracy: large speed regulation range, strong cutting ability: built-in circulating cooling system: preset feed speed: menu-style control: LCD display; users can freely define cutting methods, closed safety cutting room. It is one of the ideal equipment for industrial and mining precision processing enterprises and scientific research institutes to prepare high-quality samples. It adopts customized fully enclosed cutting control system and uses imported linear motors, which are high-precision, fast, and can handle small products 2 times faster than the screw platform: marble platform frame integrated design, reasonable structure, safe and reliable, imported linear motor platform, high-speed cutting head, can carry fiber lasers from any manufacturer; CNC system adopts dedicated laser control system, sensitive and accurate response, not affected by the shape of the workpiece, and can process any graphics: the guide rail adopts fully enclosed protection to reduce dust pollution, imported high-precision linear motor transmission, imported high-precision linear guide rail guidance.

Good interactive control system expands the tolerance range and cutting width of processed parts, solves the disadvantage of overall smallness, and has better cutting shape: the cut section is smooth without burrs and deformation, and post-processing is easier: it has a safety alarm and automatically locks the light after removing the workpiece, which is highly safe: it has high positioning accuracy and sensitive response, and adopts shockproof design. There is no need to move the product manually, and cutting is carried out by automatic movement. A variety of power cutting heads can be configured to meet the cutting needs of different products.

Product Tags: laser , laser cutting , precision laser cutting
