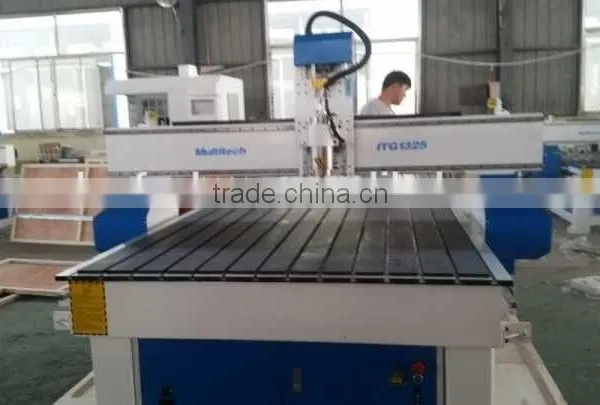

Philicam 3d Carving Door Making Wood CNC Router Machine for sale
Machine Features of cnc router wood carving machine
1. Machine Body
Strong welded tubular steel frame and gantry moving mode, suitably strengthened the rigidity
that keeps stable and longtime work.
2. Transimission
Y axis of CNC Router is equipped with double motors to keep stable moving . Gear transmission.
Provide Positive Drive without slip, with high speed, high torque & high power.
3. Spindle
China water-cooling spindle, water cooling the motor, forceful, with high concentricity
and verticality. Long service life, stable operation.
4. Drive
Our standard is Leadshine,Taiwan Delta/Japanese Panasonic/Yaskawa AC servo driving system for you to choose
5.Control System
DSPNK105 /NcStudio/Mach3 control system
Technical parameters of cnc router wood carving machine
Model: |
FLDM 1325 |
X,Y-axis working area : |
1300*2500mm |
Z-axis working area: |
200 mm |
Max. Speed: |
25000mm/min |
Working speed : |
0-15000mm/min |
Compatible Software: |
Artcam |
Power source: |
AC 220v(50HZ)/380v(60HZ) |
Driver type |
stepper motors 450B& lead shine drivers M860 |
The transmission: |
Rack and gear drive on X/Y axis; TBI ball screw drive on Z axis |
Guideway |
HIWIN 25 square linear rails |
Spindle: |
3.0KW water cooling spindle |
Spindle speed: |
0~24000rpm |
Blade diameter: |
3.175mm/4mm/6/8/12.7mm |
Control system: |
NK105 DSP |
Command: |
G code (uoo.mmg.plt.) |
Running circumstance temperature: |
0-45°C |
Relative humidity: |
30%-75% |
Applications of cnc router wood carving machine
1.Wood processing: processing of various furniture such as door, window, cabinet, craft wood door,
screen and so on.
2.Plate processing: plastic chemical components, PCB, inner body of car, bowling tracks, stairs, epoxy
resin, ABS, PP, PE and other carbon mixed compounds.
Samples of cnc router wood carving machine
After sale service of cnc router wood carving machine
→2 years quality guaranty.
→Lifetime maintenance free of charge.
→Free training course at our plant.
→Machine has been adjusted before delivery. You can operate it normally when you received.
→Providing distance teaching.
→18 hours on line service and email each day, free technical support.
