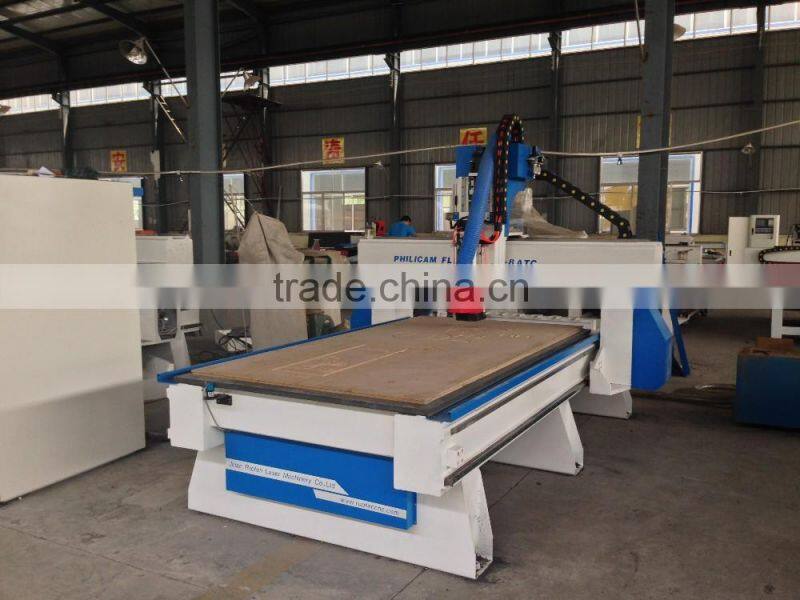

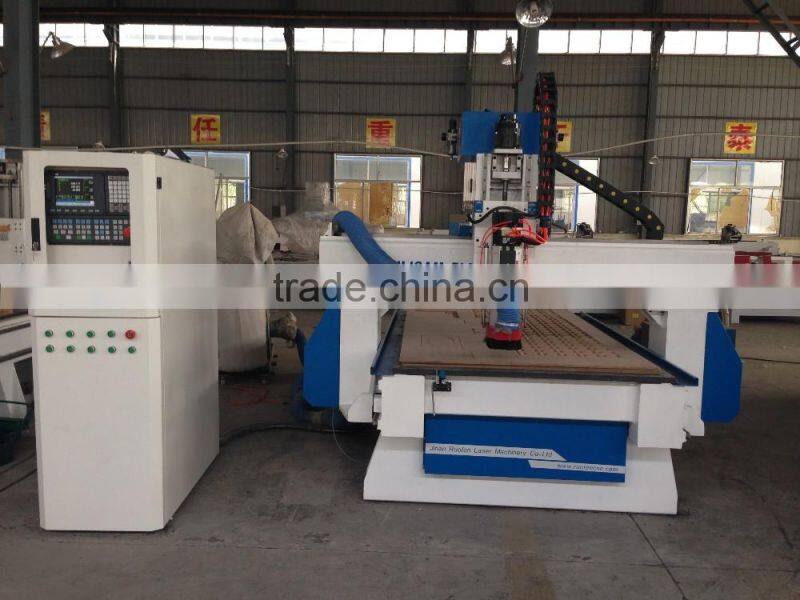

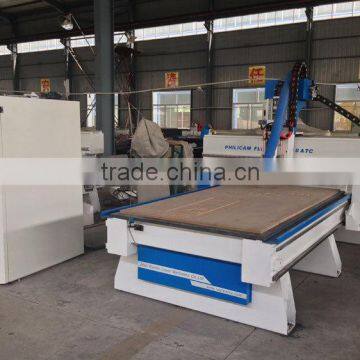

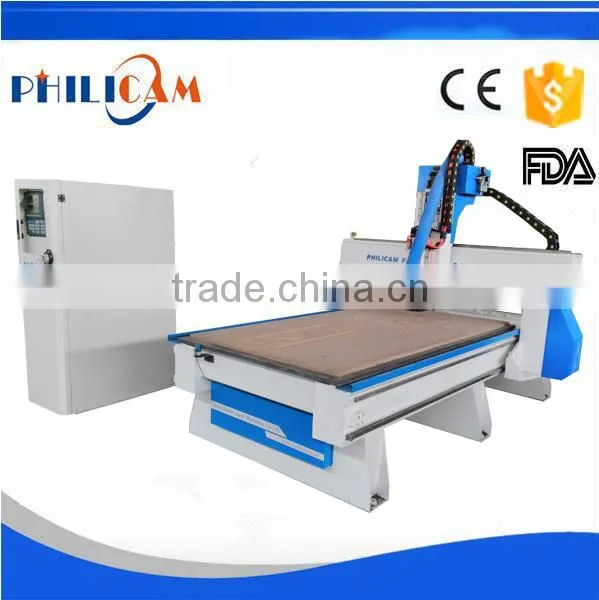

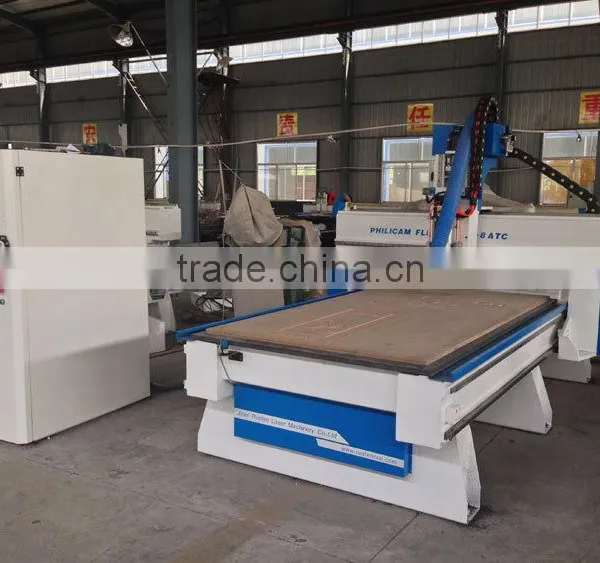

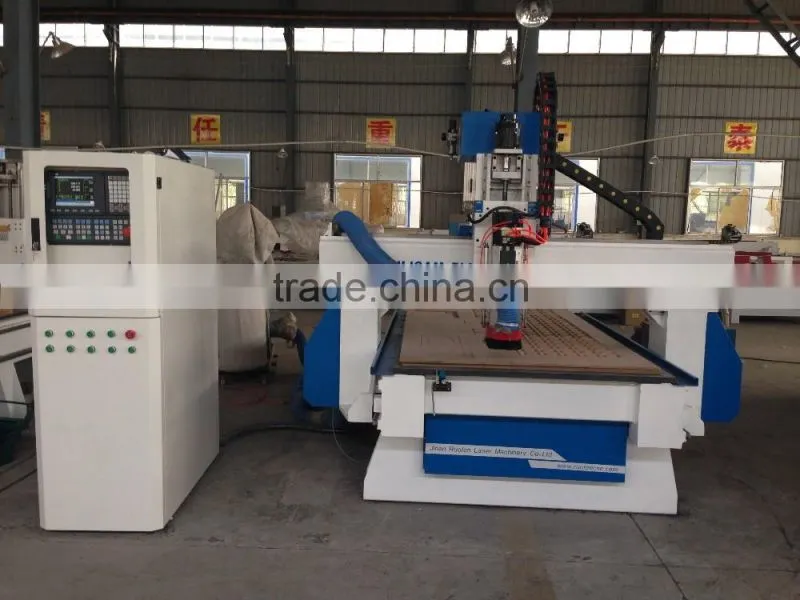

Philicam heavy duty body Wooden door Cabinet Making cnc machine
1. Machine features of Wooden Cabinet Making cnc machine
# 1300*2500*200mm
# 9.0kw HSD air cooling spindle
# Heavy duty body
# X, Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
# Taiwan Hiwin 30 rail guide
# Vacuum table and vacuum pump
# Taiwan Syntec control system
# Japan YASKAWA servo motor and driver
# Delta inverter
# Filter atc cnc router
2. Technicial parameters of Wooden Cabinet Making cnc machine
Description |
Parameter |
X,Y Working Area |
1300x2500x300mm |
Resolution |
0.01mm |
Lathe Structure |
heavy duty |
X,Y Structure |
Rack and pinion, gear drive, Taiwan hiwin square guide rails |
Z Structure |
taiwan TBI ball screw, Taiwan hiwin square guide rails |
Max. Idling Speed |
60m/min |
Spindle |
Italy HSD air-cooling 9 KW |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Motor and driver |
YASKAWA motor and driver |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
Taiwan SYNTEC control system |
Cooling Mode |
Air-cooling |

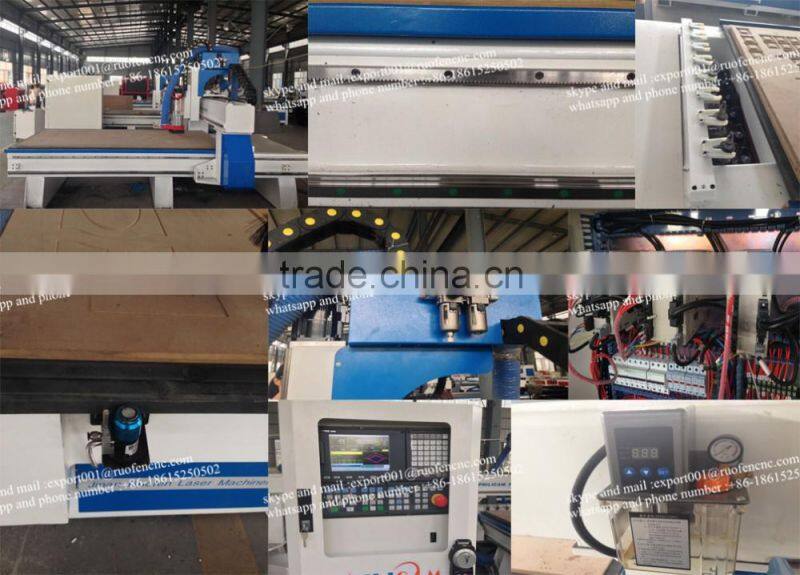

3. Machine parts of Wooden Cabinet Making cnc machine
> Italy HSD air cooling spindle
Easy to install, low maintenance cost, not easily affected by environmental factors. Match with Taiwan Delta inverter, enjoys long
lifetime, large torque, high precision, little running vibration. It is one of the best brand all over the world, and after-sales department
spred all over the world. atc cnc router

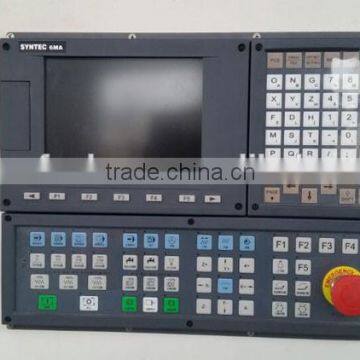

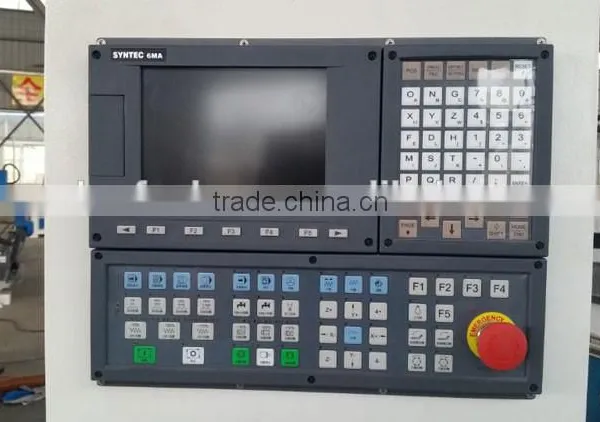

> Taiwan Syntec control system
Mainly used for ATC, 4-Axis, 5-axis cnc router, with professional cnc software, which with large compatibility. Can compable with
various types of software such as type3/artcam. Support G&M code, with post-processor. With the function of cutter compensation, Chinese and English characters display, background edition, Simulation operation show, fault display etc. Besides with the function
of intelligent processing crossing line protection to avoid mechanical collision caused by overload processing or misoperation. And
also with the function of Breakpoint continued carving, power-off recovery, processing time prediction. atc cnc router
> Japan servo motor and driver
When operate in low frequency and low speed,it also enjoys large torque, with great overload capability. Will not lose step and lock
rotating even when operating with large overload. High control accuracy, fast spped feedback. atc cnc route
> Machine bed
1. Whole machine table adopts beam, bed one techmology, with gantry high rigidity structure. Mechanical performance is good, free deformation, to ensure long term mechanical accuracy lifetime and anti-seismic property.
2. High strength, high stability design to ensure the machine stable opration.
3. The steel bed welded by thick square tube, with Vibration aging high temperature tempering treatment, firm and durable, free of distortion. atc cnc router

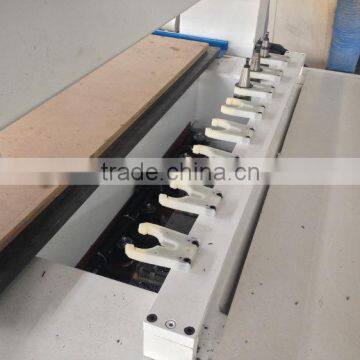

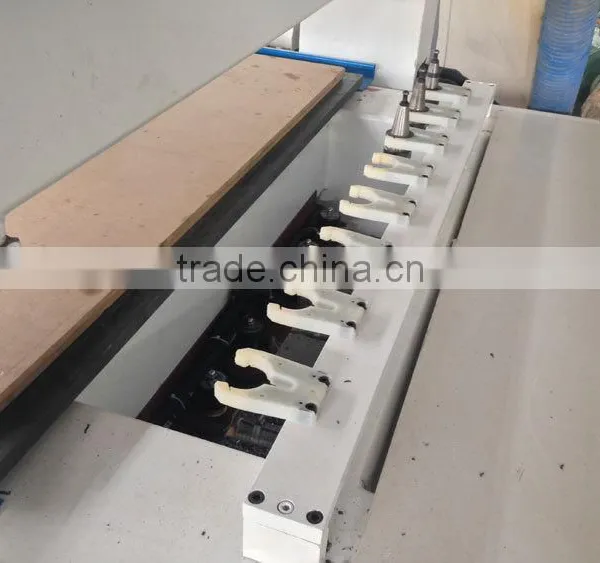

> Linear tool magazine
Lineartool magazine with 8 tools, easy to change tools automatically during the operation. No need to
change the tools manually. Can greatly enhance the work efficiency and save time
atc cnc router
r

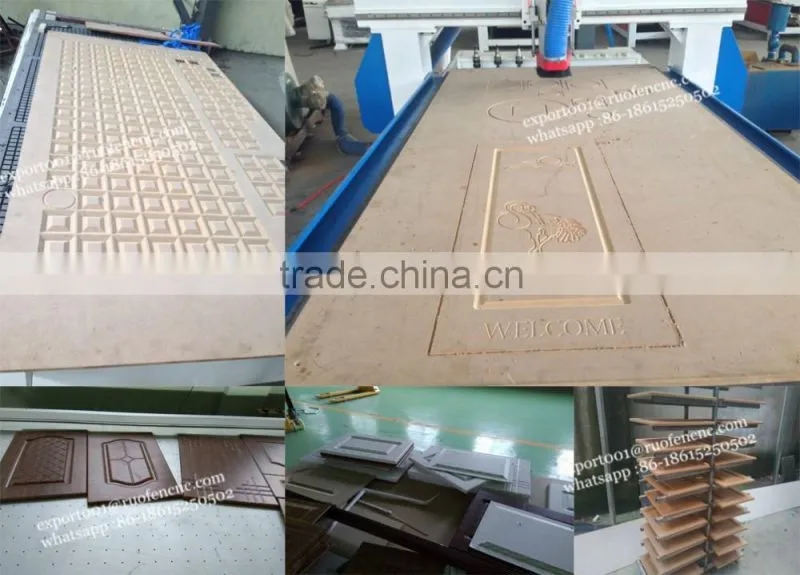

4. Applications and samples of Wooden Cabinet Making cnc machine
ATC CNC Router is suitable for hard wood-working, cutting and engraving on rosewood for furniture, indoor decoration, MDF, and so on, with high speed and high precision.
atc cnc router
5. After sale service of Wooden Cabinet Making cnc machine
Guarantee:
12 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here; wood design cnc machine price
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who
could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free. atc cnc router
6. FAQ of Wooden Cabinet Making cnc machine
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. atc cnc router
7. Packing parts of Wooden Cabinet Making cnc machine
anything need I help, please contact me
whatsapp :86-18615250502
wechat and QQ :919569070
