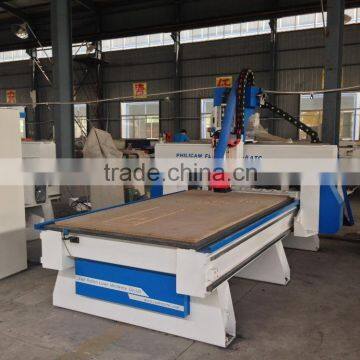

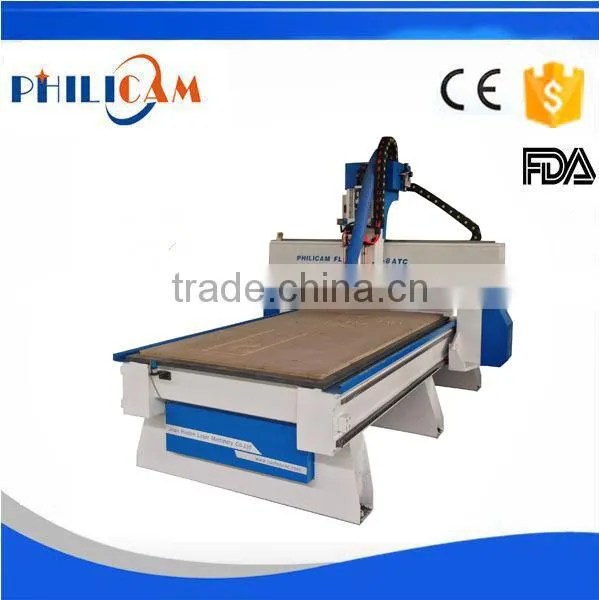

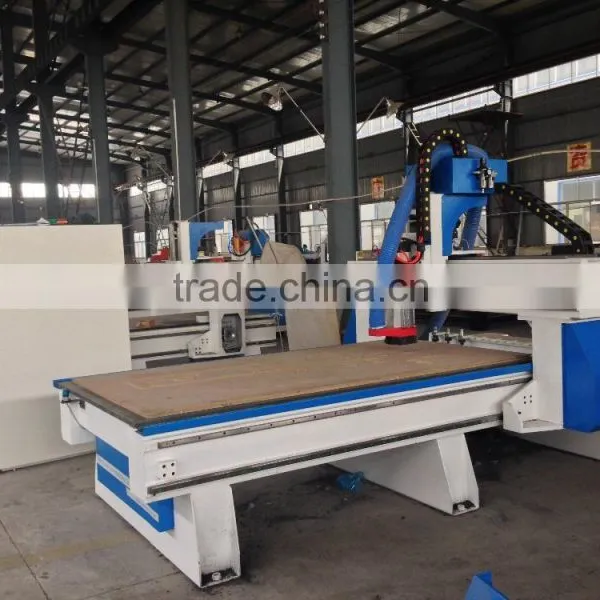

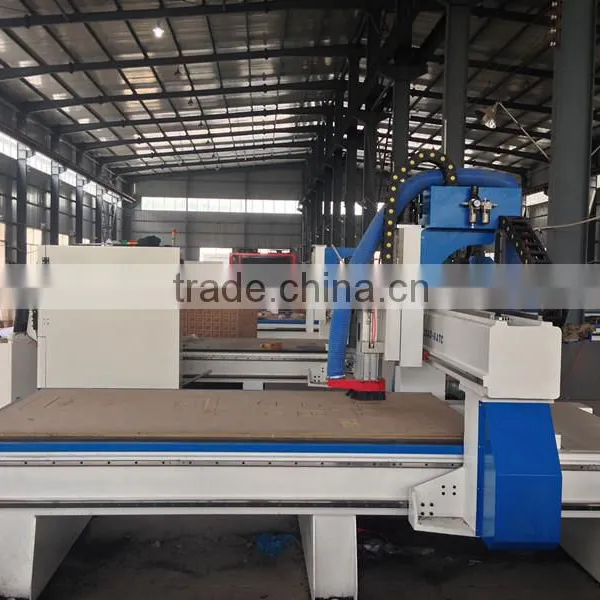

Philicam ATC linear cnc router wood door making machine

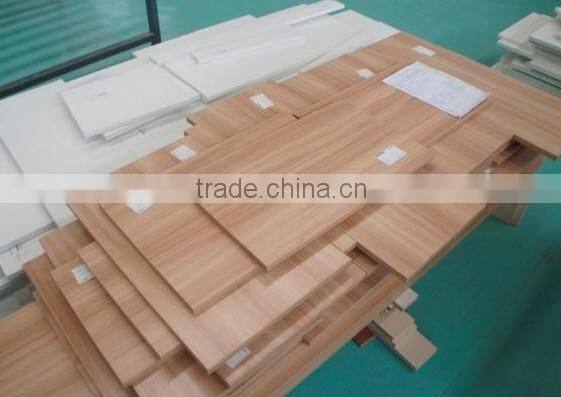

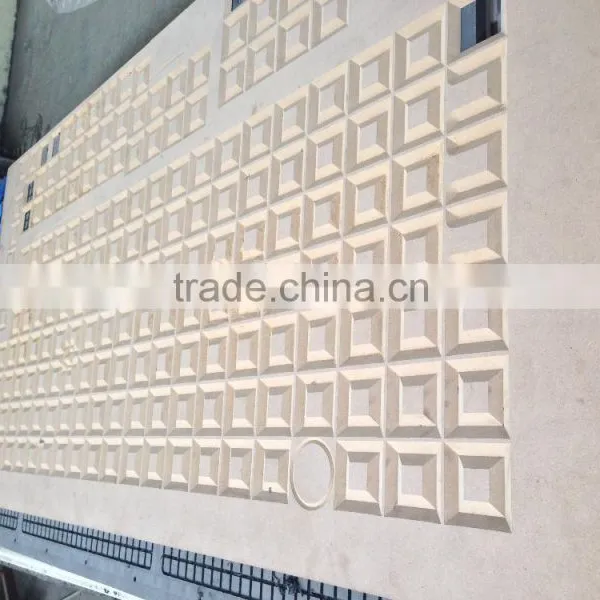

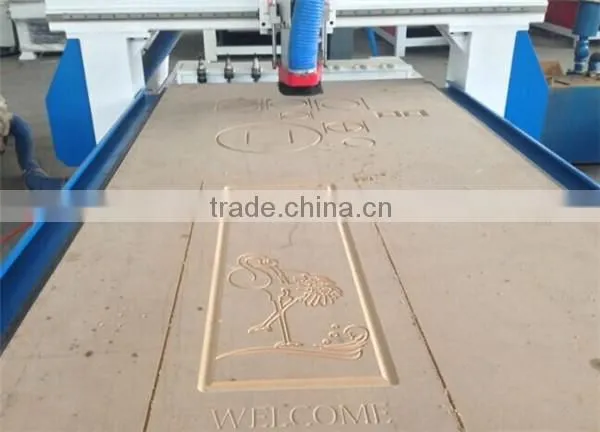

*atc wood cnc router of Samples
Suitable for wooden doors, cabinet doors, panel furniture and other wood door job, can do board cutting, grooving, drilling, engraving and other functions.
* atc wood cnc router of machine features
1. High-performance all-round machinery with extraordinary value, but at a very economical price. With linear tool changer, constructed with world-class components, consistent high performance.
2. Featuring Italian high frequency HSD air-cooling electronic spindle and world-class Janpan Yaskawa servo motor and driving system.
3. Vacuum table using high-density (1.3-1.45g/cm)material with great suction strength, comfortably accommodating all sizes of work piece.
4. Taiwan Syntec controller—enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.
5. Highly efficient machine permitting faster production, cutting speed over 18m/min. Low vibration and smooth motion ensure higher work piece quality.
6. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc
* atc wood cnc router of Technical Parameters
Description |
Parameter |
X,Y Working Area |
1300x2500x300mm |
Table Size |
1440×3040mm |
Resolution |
0.01mm |
Lathe Structure |
heavy duty |
X,Y Structure |
Rack and pinion, gear drive, Taiwan hiwin square guide rails |
Z Structure |
taiwan TBI ball screw, Taiwan hiwin square guide rails |
Max. Idling Speed |
60m/min |
Spindle |
Italy HSD air-cooling 9 KW |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Motor and driver |
YASKAWA motor and driver |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
Taiwan SYNTEC control system |
Diameter of Cutter |
φ3.175-φ12.7 |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Work Holding |
By suction or clamp |

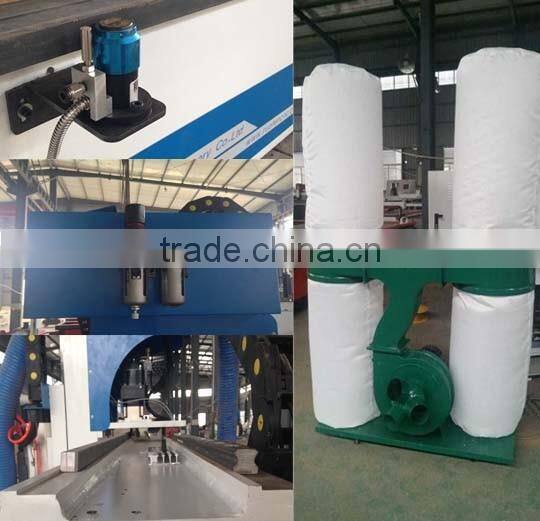

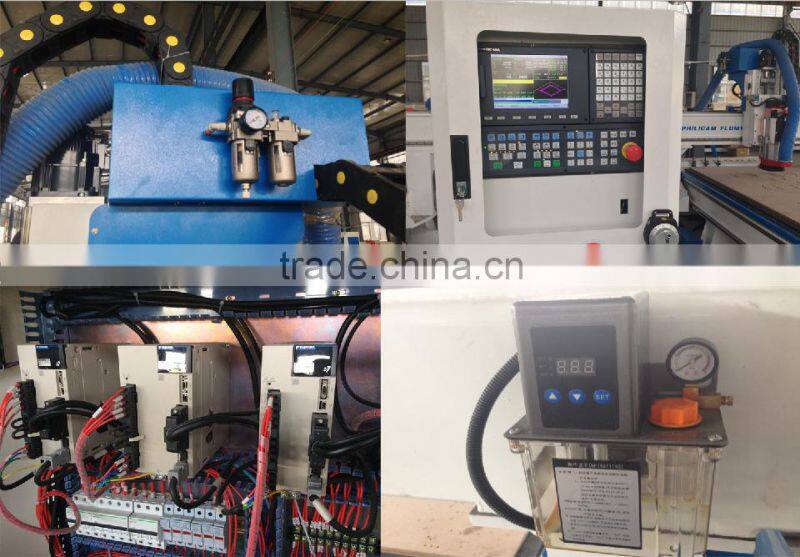

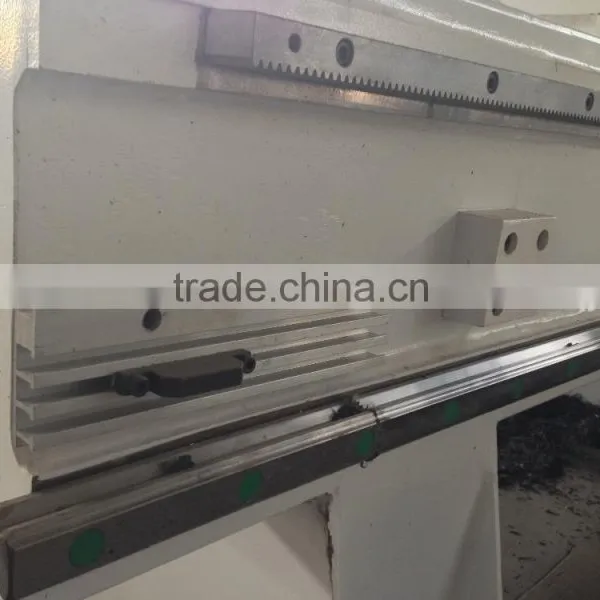

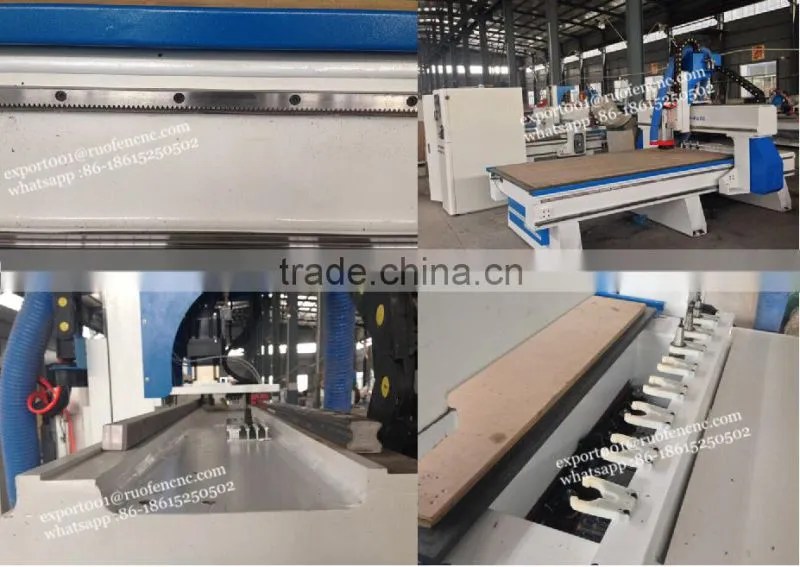

* atc wood cnc router of Machine parts
* atc wood cnc router of After Sale Service
#. Guarantee for 1 year for the whole machine excluding consumable parts. Extra
fee is paid if out of date. Any damage to the machine caused by importer use will
be charged.
#. 18-hour technical support Internet or by E-mail, Skype, Telephone, free instructions
and problem solving, we also can make remote control for you.
#. Free installation and fully test before sending and free training for operators.
#. We provide English operation manual and video to help you to learn the machine
* atc wood cnc router of Payment Terms
We accept T/T, Western Union. Paypal. or Trade assurance.
Most customers prefer to T/T. because its simple to do the transfer.
Usually we accept 30% in advance by T/T, 70% before delivery.
But before we send you the machine, we will test the machine then ensure everything is OK.
then show you machine photos and videos. After you agree,we arrange the delivery
* atc wood cnc router of Packing parts
* atc wood cnc router of FAQ
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
*We have other ATC and high quality wood cnc router machine models
Welcome to your coming , our best quality and service will satisfy with you , please do not hesitate to contact me
skype and mail :export001(@)
whatsapp and phone number :86-18615250502
