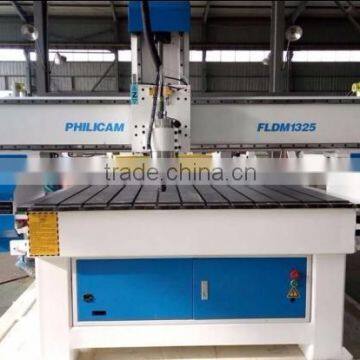

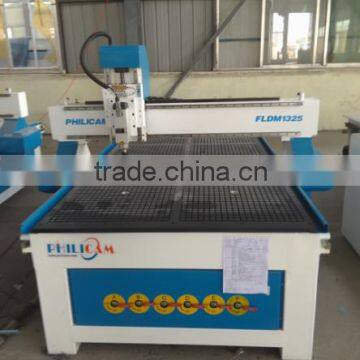

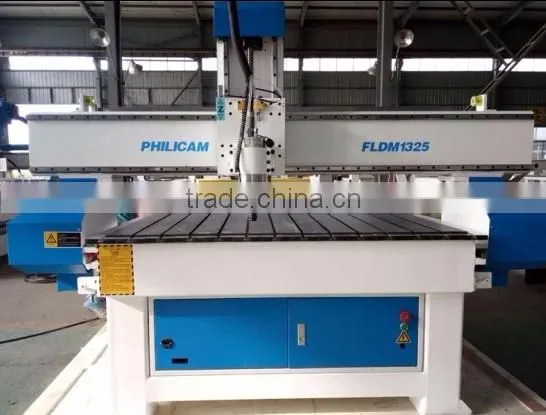

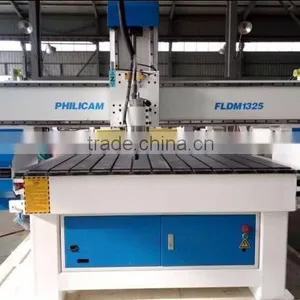

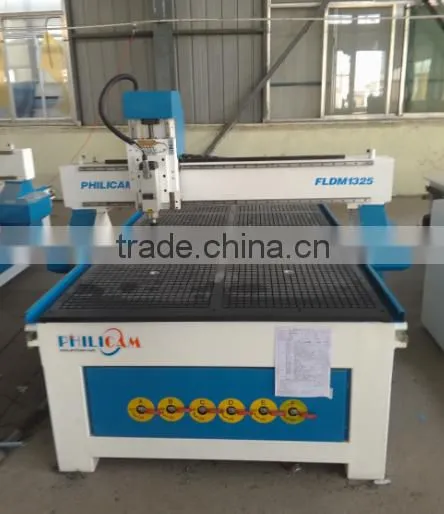

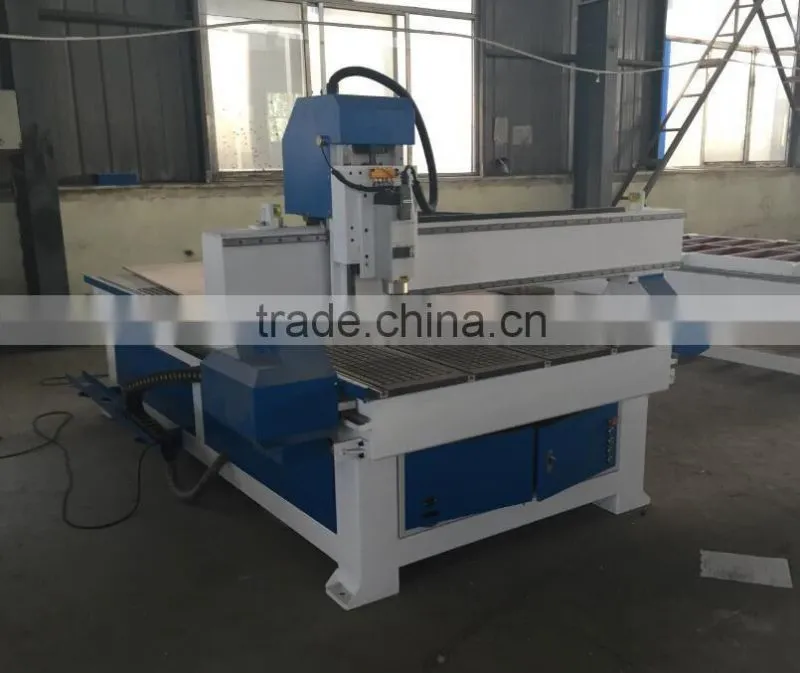

Philicam cnc wooden door engraving machine for cabinets

Name: Philicam cnc wooden door engraving machine for cabinets
Brand: PHILICAM
Price: USD $3,600 - 14,000 / Set

FOB Price

USD $3,600 - $14,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	CNC or Not:	CNC	Place of Origin:	Shandong, China
Brand Name:	PHILICAM	Model Number:	FLDM1325	Voltage:	AC380V/50HZ
Power(W):	3.0kw	Dimension(LWH):	300018201550mm	Weight:	1100KG
Certification:	CE	Warranty:	1 YEAR	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

FLDM cnc router wood engraving machine price 1325

Machine Features of Wooden door engraving machine

1. Machine Body

Strong welded tubular steel frame and gantry moving mode, suitably strengthened the rigidity

that keeps stable and longtime work.

2. Transimission

Y axis of CNC Router is equipped with double motors to keep stable moving . Gear transmission.

Provide Positive Drive without slip, with high speed, high torque & high power.

3. Spindle

China water-cooling spindle, water cooling the motor, forceful, with high concentricity

and verticality. Long service life, stable operation.

4. Drive

Our standard is Leadshine,Taiwan Delta/Japanese Panasonic/Yaskawa AC servo driving system for you to choose

5.Control System

DSPNK105 /NcStudio/Mach3 control system

Technical parameters of Wooden door engraving machine

Model:	FLDM 1325
X,Y-axis working area :	1300*2500mm
Z-axis working area:	200 mm
Max. Speed:	25000mm/min
Working speed :	0-15000mm/min
Compatible Software:	Artcam
Power source:	AC 220v(50HZ)/380v(60HZ)
Driver type	stepper motors 450B& lead shine drivers M860
The transmission:	Rack and gear drive on X/Y axis; TBI ball screw drive on Z axis
Guideway	HIWIN 25 square linear rails
Spindle:	3.0KW water cooling spindle
Spindle speed:	0~24000rpm
Blade diameter:	3.175mm/4mm/6/8/12.7mm
Control system:	NK105 DSP
Command:	G code (uoo.mmg.plt.)
Running circumstance temperature:	0-45°C
Relative humidity:	30%-75%

Applications of Wooden door engraving machine

1.Wood processing: processing of various furniture such as door, window, cabinet, craft wood door,

screen and so on.

2.Plate processing: plastic chemical components, PCB, inner body of car, bowling tracks, stairs, epoxy

resin, ABS, PP, PE and other carbon mixed compounds.

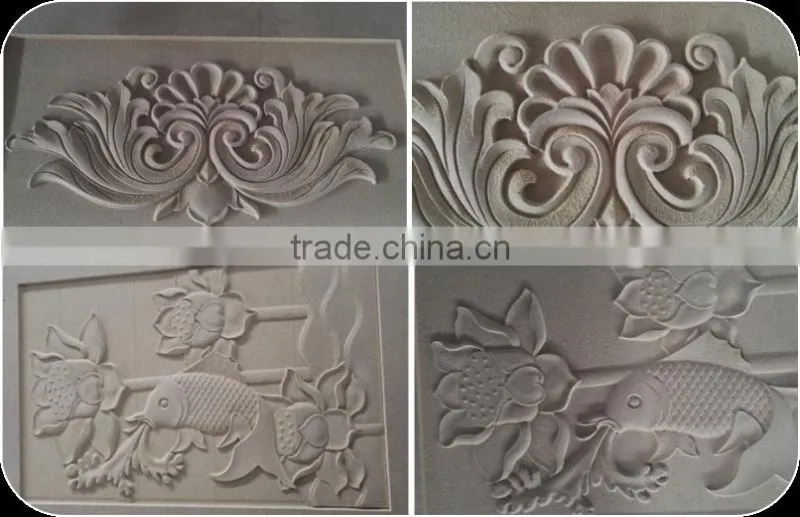

Samples of Wooden door engraving machine

After sale service of Wooden door engraving machine

→2 years quality guaranty.

→Lifetime maintenance free of charge.
→Free training course at our plant.
→Machine has been adjusted before delivery. You can operate it normally when you received.

→Providing distance teaching.

→18 hours on line service and email each day, free technical support.

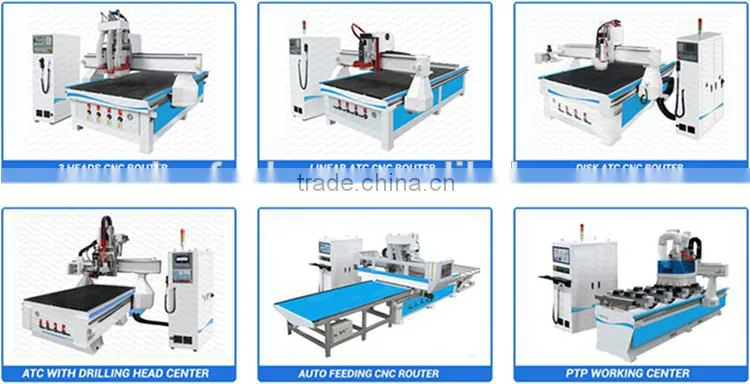

Other hot sale cnc router models
