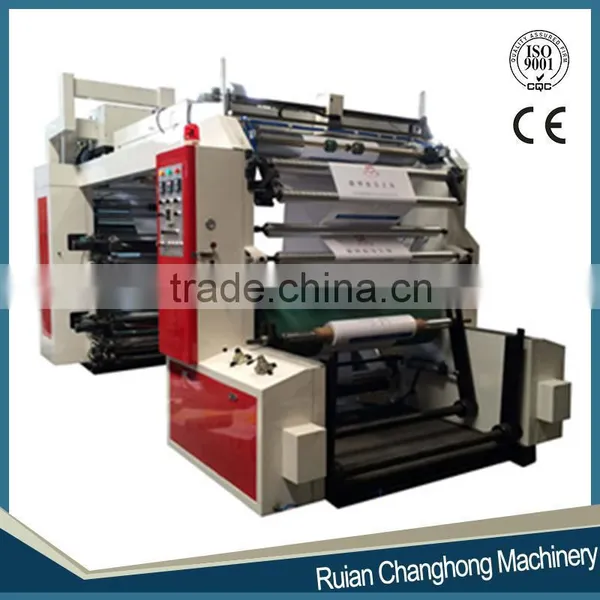

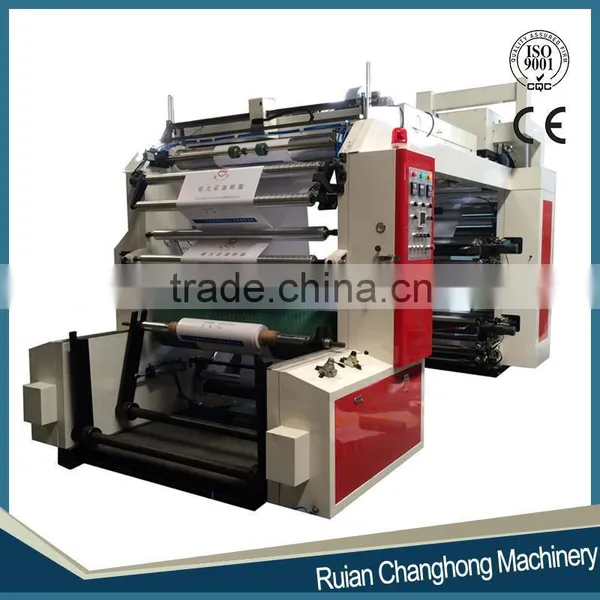

4 Color Roll paper/ Kraft paper Flexographic Printing Machine
1. Take it easy, accurate color, long life.
2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.
4. Use special synchronous belt drive, accurate printing size.
5. Two sets of heating devices, including central heating and constant temperature control system for group control.
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced.
8 With cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. Print produce are clear and good arrangement quality.
10. Bearing: NSK, Japan Brand, Germany ASNU aluminum alloy roll
2. Main parameter:
Machine running |
Use Synchronous belt drive instead of Helical Gear drive Advantage: 1. Lower machine running noise 2. High printing precision, better printing quality, 3. less gear line on printing sample then gear drive machine. 4. Well machine working smooth |
|||||
Max. Material width |
650mm |
850mm |
1050mm |
1250mm |
1450mm |
1650mm |
Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
1360mm |
1560mm |
Printing material |
Single adhesive paper,Double adhesive paper,Copper plate paper,Kraft paper :50-350g/m2 Single filter membrance paper,Double filter membrance paper : 80-350g/m2 |
|||||
Printing color |
4 special color |
|||||
Printing length |
7.5"-40" (90mm-1016mm)/7.5"-50"(90mm-1270mm) |
|||||
Printing plate lifting system |
Hydraulic press control |
|||||
Mechanical speed |
90m/min |
|||||
Printing speed |
10-70m/min |
|||||
Anilox roller |
Metal: 100-300LPI Or Ceramic anilx roller(200-1000LPI), single doctor blade |
|||||
Rewinder/Unwinder DIA |
ø 1000mm /ø 1200mm /ø 1500mm |
|||||
Master power |
28KW |
30KW |
32KW |
35KW |
38KW |
40KW |
Weight |
5000Kg |
5200Kg |
5600 Kg |
6000 Kg |
6200Kg |
6500Kg |
Dimension |
5.2m ×2.0m × 2.5m |
5.2m × 2.2m× 2.5m |
5.3m × 2.4m ×2.5m |
5.3m × 2.6m × 2.6m |
5.4m × 2.8m × 2.6m |
5.4m × 3.0m × 2.6m |
