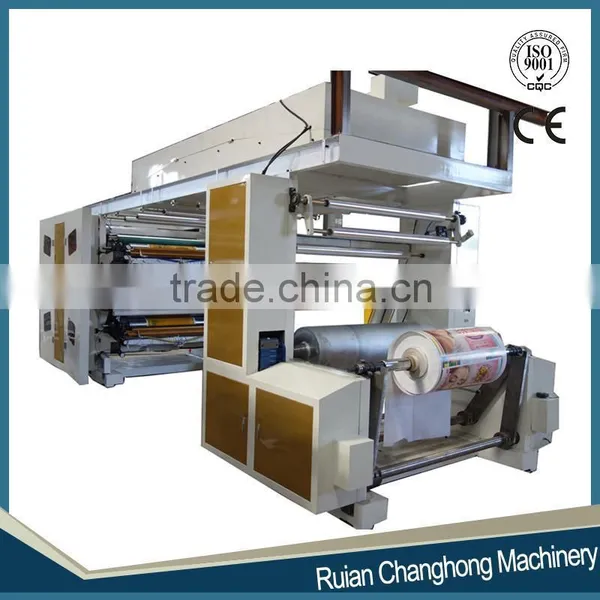

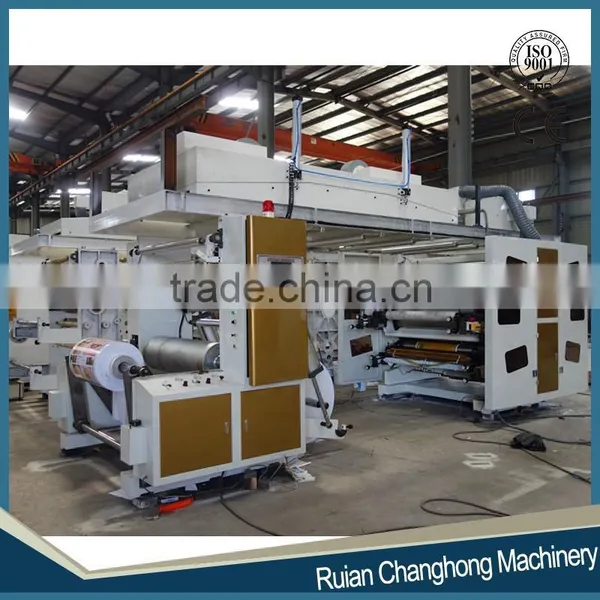

Changhong 6 Color Roll Kraft Paper Flexo Printing Machine

Name: Changhong 6 Color Roll Kraft Paper Flexo Printing Machine
Brand: CHANGHONG
Price: USD $40,000 - 100,000 / Set

FOB Price

USD $40,000 - $100,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Plate Type:	Letterpress	Place of Origin:	Zhejiang, China
Brand Name:	CHANGHONG	Model Number:	CIS6	Usage:	Cloths Printer, Label Printer, Paper Printer, Other
Automatic Grade:	Semi-Automatic	Voltage:	220/380V,3P	Gross Power:	55kw
Dimensions(LWH):	5.0m2.2m4.0m	Weight:	8500KGS	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas

Company Information

Product Description

6 Color Paper Flexo Printing Machine (CE)

1.The main features

Method: Central impression for better color registration. With the central impression configuration, the printed material is supported by the cylinder, and greatly improving color registration, especially with extensible materials.
Structure: Wherever possible, parts are communized for availability and wear-resisting design.
Dryer: Hot wind dryer, automatic temperature controller, and separated heat source.
Doctor blade: open type assembly for high-speed printing.
Transmission: Hard gear surface, high precision Decelerate Motor, and encoder buttons are placed on both control chassis and body for operations convenience.
Rewind: Micro Decelerate Motor, drive Magnetic Powder and Clutch, with PLC control tension stability.
Gearing of Printing cylinder: repeat length is 5MM

2.Main Technical Parameter

Machine type Model No.	Economic CI type CIS600/800/1000/1200…
Application	Paper/Plastic film/OPP etc.
Specification	As client’s requirement.
No. of Color	1	2	3	4	5	6
Main Motor	1.5KW	2.2KW	2.2KW	2.2KW	5.5KW	5.5KW
Rewind Motor	1.5KW	1.5KW	1.5KW	2.2KW	2.2KW	2.2KW
Ink Motor	90W	90W	90W	90W	90W	90w
Air compressor	2hp	2hp	2hp	2hp	2hp	2hp
Drying Motor	1.5KW	1.5KW	1.5KW	3KW	3KW	6KW
Heating Power	10KW	10KW	15KW	18KW	27KW	30KW
Tension controller	2	2	2	2	2	2
Web guide system	1	1	1	1	1	1
Machine Size	2.8 * 2.1 * 2.2M	2.8 * 2.1 * 2.2M	2.8 * 2.1 * 2.2M	5.2 * 2.1 * 2.5M	5.2 * 2.1 * 2.5M	5.2 * 2.1 * 2.5M
Machine Weight	2T	2 T	2 T	4 T	5 T	7 T

Product Overviews

Print Sample Photo

Packaging & Shipping

FAQ

Our Services

1 Year Guarantee !

100% Good Quality !

24 Hours online Service!

Ruian Changhong Printing Machinery Co., Ltd.: Contact nameHoliday Xue; Phone86-188-57728175; AddressSongjiadai Industrial Zone, Feiyun Town, Ruian
