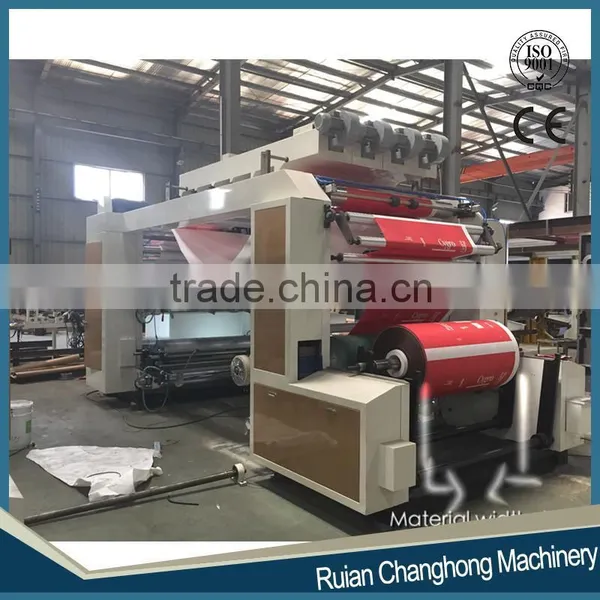

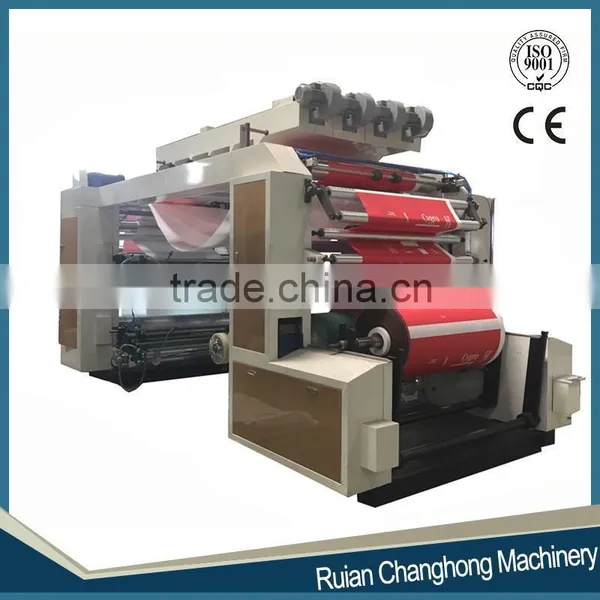

4 color Paper Flexographic printing machine (Changhong)
The main features
1. Take it easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special belt drive, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Print produce are clear and good arrangement quality
10. Bearing: NSK, Japan brand, Germany ASNU aluminum alloy roll
Main Technical Parameter
Machine running |
Use Synchronous belt drive instead of Helical Gear drive Advantage:
|
|||||
Max. Material width |
650mm |
850mm |
1050mm |
1250mm |
1450mm |
1650mm |
Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
1360mm |
1560mm |
Printing material |
Single adhesive paper,Double adhesive paper,Copper plate paper,Kraft paper :50-350g/m2 Single filter membrance paper,Double filter membrance paper : 80-350g/m2 |
|||||
Printing color |
4 special color |
|||||
Printing length |
7.5"-40" (90mm-1016mm)/7.5"-50"(90mm-1270mm) |
|||||
Printing plate lifting system |
Hydraulic press control |
|||||
Mechanical speed |
90m/min |
|||||
Printing speed |
10-70m/min |
|||||
Anilox roller |
Metal: 100-300LPI Or Ceramic anilx roller(200-1000LPI), single doctor blade |
|||||
Rewinder/Unwinder DIA |
ø 1000mm /ø 1200mm /ø 1500mm |
|||||
Master power |
28KW |
30KW |
32KW |
35KW |
38KW |
40KW |
Weight |
5000Kg |
5200Kg |
5600 Kg |
6000 Kg |
6200Kg |
6500Kg |
Dimension |
5.2m ×2.0m × 2.5m |
5.2m × 2.2m× 2.5m |
5.3m × 2.4m ×2.5m |
5.3m × 2.6m × 2.6m |
5.4m × 2.8m × 2.6m |
5.4m × 3.0m × 2.6m |
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
