836 High Quality Corrugate Cold Bending Color Steel Roll Forming Machine

FOB Price

US$ 24,000 - 34,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, corrugated roll forming machine
Tile Type	Steel	Use	Other, wall and roof
Production Capacity	0-15m/min	Place of Origin	Zhejiang, China
Brand Name	WILLING	Model Number	WLFM18-76-836
Power(W)	7kw	Voltage	as buyer's request
Dimension(LWH)	8000mm1500mm1450mm	Weight	6000kg
Certification	CE, ISO9001, GMC	Warranty	12 month

Coil width: 1000mm
Roller driven type: chain transmission
Controller: PLC
Operation: touch screen button

WLFM18-76- 836 high quality corrugate cold bending color steel roll forming machine

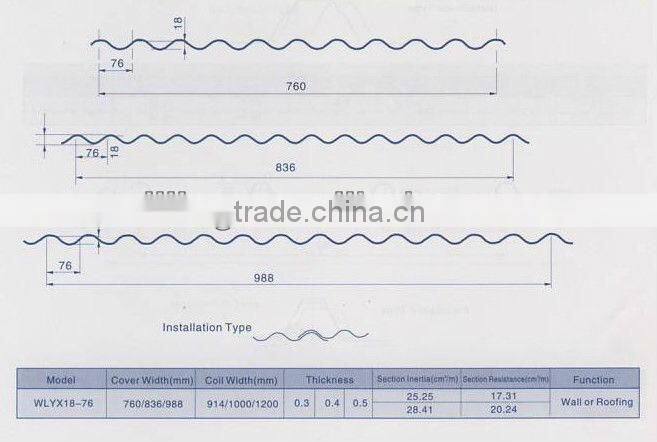

1. Profile drawing

2. Machine layout

3. Main parameter

Material spec:	Color steel sheet;
Thickness:	0.3 mm to 0.7 mm
Coil width:	1250mm
Working speed:	0-3m/min. (Nodal distance at 250mm)
Cutting tolerance:	±2mm
Main motor power:	4Kw
Hydraulic station power:	3Kw
Decoiler	manual decoiler, max capacity 5000kgs
Main roller qty:	about 17 stands but depends on last design
Type of cutting:	Roll-formed and length-set cutting
Main body dimension:	About 7800mm1500mm1500mm

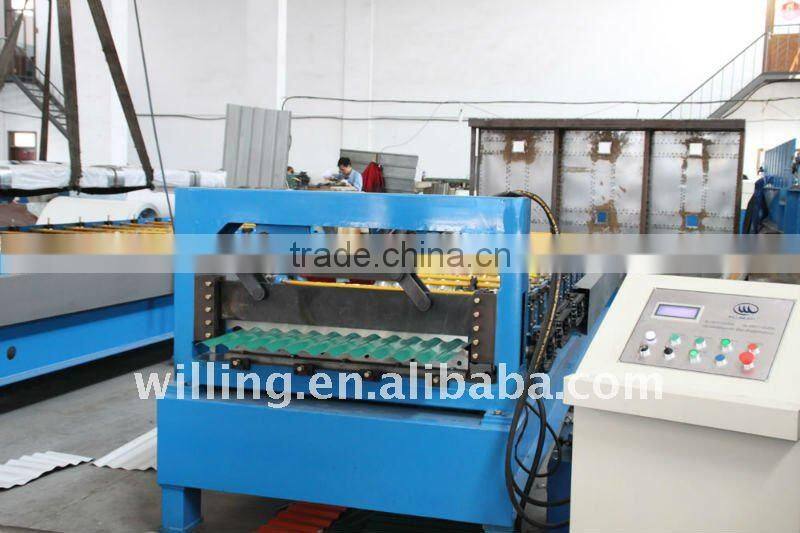

4. Machine picture

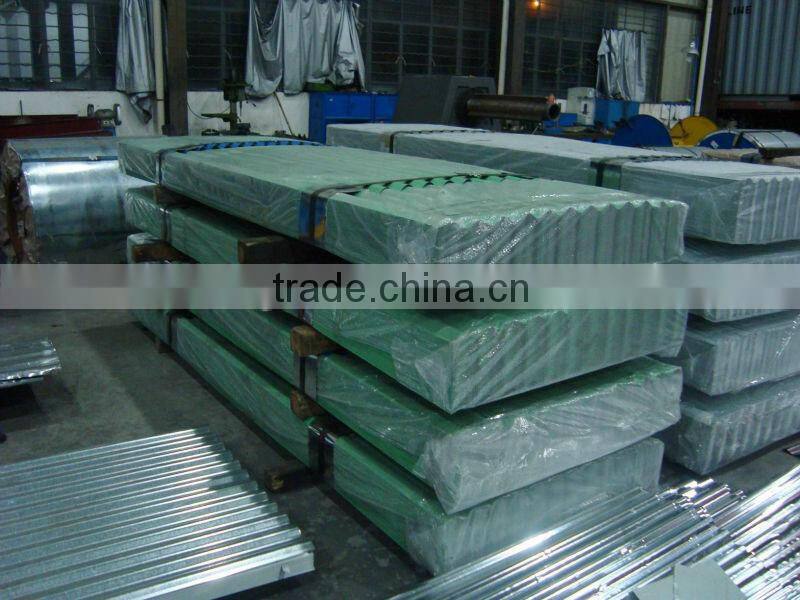

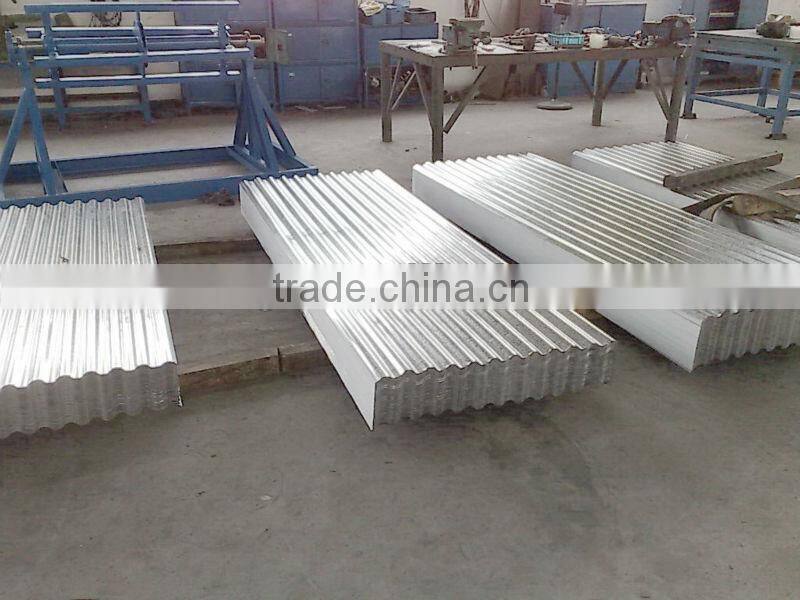

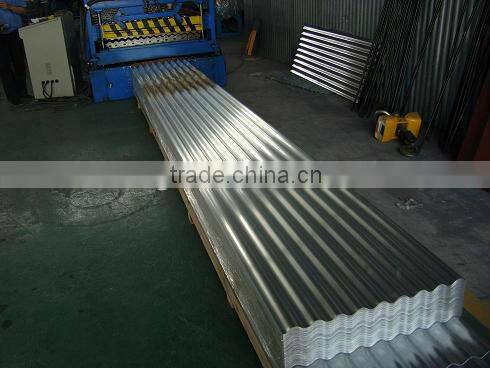

5. Finished products

6. Working flow

Decoiling the sheet------Sheet guiding------Roll forming-----Measure length------Cutting the panel------Panels to the supporter

7. Standard equipment

5tons passive uncoiler	1set
Pre-cutting equipment(Optional)	1set
Film covering device (Optional)	1set
Guiding Equipment	1set
Roll Forming Equipment	1set
Post Cut Equipment	1set
Hydraulic Station	1set
PLC Control Penal	1set
Supporter Table	2sets
