Double Layer Roof Panel Roll Forming Machine

Name: Double Layer Roof Panel Roll Forming Machine
Brand: WILLING
SKU: 127405831
Availability: InStock

Hangzhou Willing International Co., Ltd.

US$ 24,000 - 32,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, cold metal roll forming machine

Tile Type:

Steel

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, cold metal roll forming machine

Tile Type Steel

Use Other, wall and roof

Production Capacity 0-15m/min

Place of Origin Zhejiang, China

Brand Name WILLING

Power(W) 7 kw

Voltage as buyer's request

Dimension(L*W*H) 7800mm*1500mm*1500mm

Weight 6000kg

Certification CE, ISO9001, GMC

Warranty 12 month

Specifications

1. Thickness:0.3-0.7mm
2. Strength: Q235-345Mpa
3. Material: galvanized or pre-painted steel sheet
4. Speed:1-15m/min

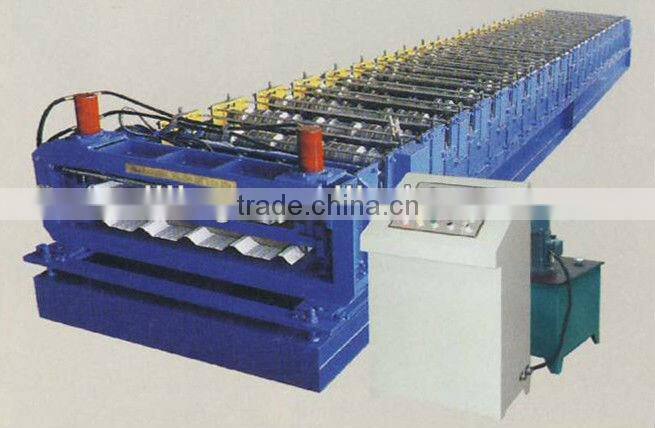

Double layer roof panel roll forming machine

It can produce two different shapes within one machine, profile depends on customer.

1. Machine layout

2. Main parameter

Material spec:	Color steel sheet;
Thickness:	0.3 mm to 0.7 mm
Coil width:	depends
Working speed:	0-3m/min. (Nodal distance at 250mm)
Cutting tolerance:	±2mm
Main motor power:	4Kw
Hydraulic station power:	3Kw
Decoiler	manual decoiler, max capacity 5000kgs
Main roller qty:	about 16 stands but depends on last design
Type of cutting:	Roll-formed and length-set cutting
Main body dimension:	About 7800mm1500mm1500mm

3. Machine picture

4. Working flow

Decoiling the sheet------Sheet guiding------Roll forming ------Measure length------Cutting the panel------Panels to the supporter

5. Standard equipment of machine

5tons passive uncoiler	1set
Pre-cutting equipment(Optional)	1set
Film covering device (Optional)	1set
Guiding Equipment	1set
Roll Forming Equipment	1set
Post Cut Equipment	1set
Hydraulic Station	1set
PLC Control Penal	1set
Supporter Table	2sets
