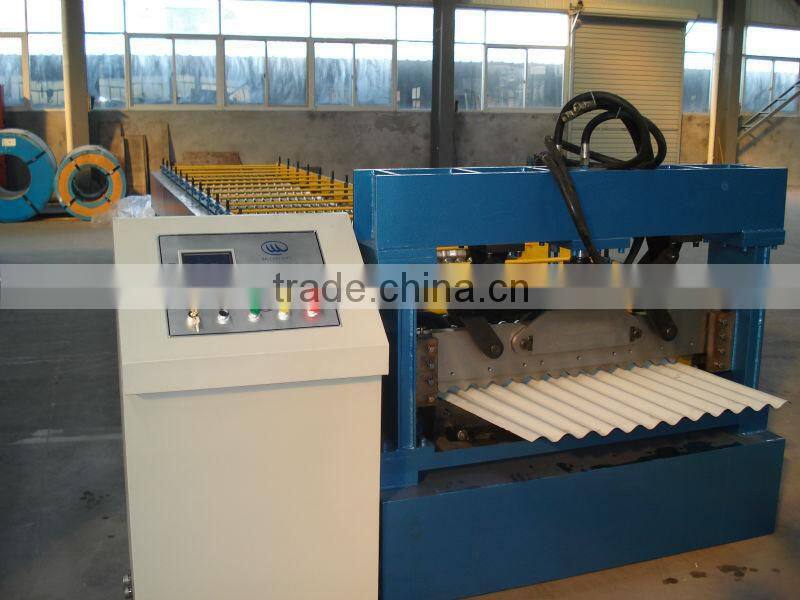

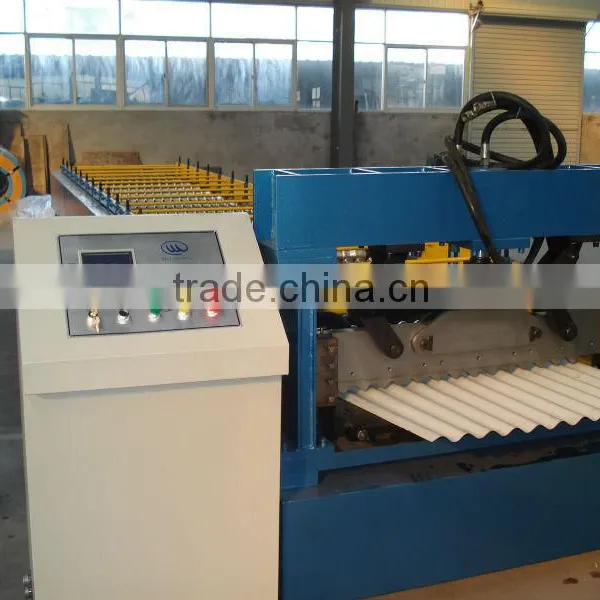

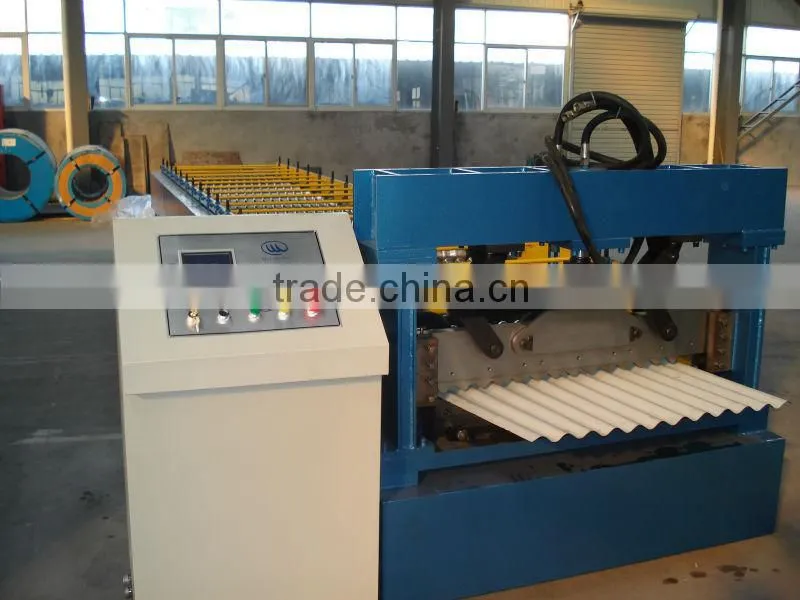

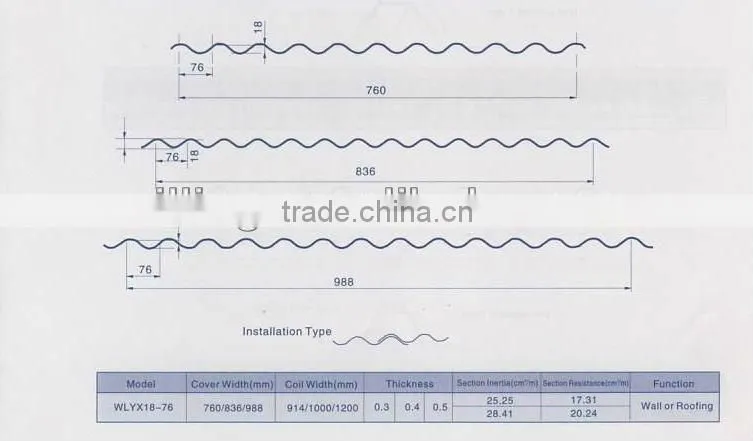

Steel Roll Forming Machine for Roof Tile in Steel Structure

Specifications

Technical Parameters

Material Spec          Color steel sheet;

Thickness               0.3 mm to 0.7 mm

Coil stress             235Mpa

Coil width            1200,1000,914mm

Working Speed         12 ~ 15 m/min.

Cutting Tolerance       ≤±2.5mm ( length≤ 5000mm)

≤±3mm ( 5000mm < length ≤ 10000mm)

passive Uncoiler     Max. Capacity: 5000kgs

Type of cutting          Roll-formed and length-set cutting

Material of Main Equipment

Roller MaterialHigh grade No.45 forged steel, with digital-controlled procession,

Panted with hard chrome.

Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.

Electric Elements       PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Cutter blade            Cr12 mould steel with quenched treatment

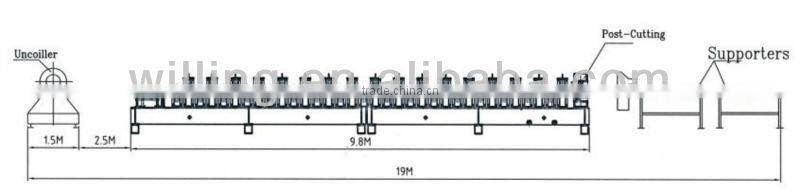

Working Flow

Decoiling the sheet       Sheet guiding    Roll forming      Measure length

Cutting the panel    panels to the supporter

Standard Equipment of Machine

passive Uncoiler                1pc

Guiding Equipment                1set

Roll Forming Equipment          1set

Post Cut Equipment               1set

Hydraulic Station                1pc

PLC Control Penal                1pc

Supporter Table                 2pcs
